Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: 6J40
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 15-28DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 300+TON+MONTH
Material: |
Constantan/ Manganin |
Wire Chemical: |
Cu Ni/ Cu Mn |
Type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
Application: |
Electric Instrument, Electric Part Coil And So On |
Class: |
130,155,180,200,220 |
Material: |
Constantan/ Manganin |
Wire Chemical: |
Cu Ni/ Cu Mn |
Type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
Application: |
Electric Instrument, Electric Part Coil And So On |
Class: |
130,155,180,200,220 |

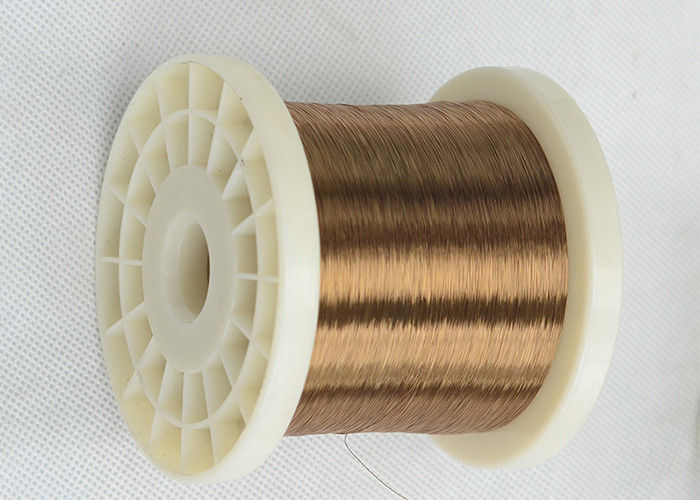

CuNi10 CuNi11 Curpothal 15 Nc15 Resistance Heating Wire 0.18mm
| roduct Name | Copper Nickel Alloy CuNi Wire |
| Product Description | Copper Nickel Alloy is mainly made of copper and nickel. The copper and nickel can be melted together no matter what percentage. Normally the resistivity of CuNi alloy will be higher if the Nickel content is larger than Copper content. From CuNi6 to CuNi44, the resistivity is from 0.1μΩm to 0.49μΩm. That will help the resistor manufacture choosing the most suitable alloy wire. |
| Product Features | By the way, the Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas. |
Specification
| Wire | D=0.03mm~8mm |
| Ribbon | Width=0.4mm-40mm, Thickness=0.03mm-2.9mm |
| Strip | Width=8mm-250mm, Thickness=0.1mm-3mm |
| Foil | Width=6mm-120mm, Thickness=0.003mm-0.1mm |
| Bar | Width=8mm-100mm, Thickness=50mm-1000mm |
| Other sizes | Available Upon Your Requirements |
