Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI
Model Number: Manganin Alloy
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Packaging Details: on spool,paper box,wooden case/pallet,in coil
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600T per moth
Port: |
Shanghai,China |
Brand: |
Tankii |
Mn: |
11-13 |
Ni: |
2-5 |
Cu: |
Bal |
Max Operating Temperature(℃): |
10-80 |
Density (g/cm³): |
8.4 |
Resistivity At 20℃(μΩ/cm): |
44 |
Elongation(%): |
≧15 |
TCR(x10﹣6/℃): |
0~+40 |
EMF Vs Cu μV/℃(0~100℃): |
≦2 |
Tensile Strength (N/m㎡): |
Soft 343~539 Hard>637 |
Hardness (Hv): |
Soft 100-172 Hard 140-300 |
Enamel Ability: |
Good |
Application: |
Industry |
Conductor Material: |
Mn,Ni,Cu |
Type: |
Low Voltage |
Insulation Material: |
PVC |
Rated Voltage: |
300/500V |
Conductor Type: |
Solid |
Sheath: |
PVC |
Core: |
Single Core |
Rated Temperature: |
-60-200℃ |
Packing: |
As Request |
MOQ: |
20KG |
Port: |
Shanghai,China |
Brand: |
Tankii |
Mn: |
11-13 |
Ni: |
2-5 |
Cu: |
Bal |
Max Operating Temperature(℃): |
10-80 |
Density (g/cm³): |
8.4 |
Resistivity At 20℃(μΩ/cm): |
44 |
Elongation(%): |
≧15 |
TCR(x10﹣6/℃): |
0~+40 |
EMF Vs Cu μV/℃(0~100℃): |
≦2 |
Tensile Strength (N/m㎡): |
Soft 343~539 Hard>637 |
Hardness (Hv): |
Soft 100-172 Hard 140-300 |
Enamel Ability: |
Good |
Application: |
Industry |
Conductor Material: |
Mn,Ni,Cu |
Type: |
Low Voltage |
Insulation Material: |
PVC |
Rated Voltage: |
300/500V |
Conductor Type: |
Solid |
Sheath: |
PVC |
Core: |
Single Core |
Rated Temperature: |
-60-200℃ |
Packing: |
As Request |
MOQ: |
20KG |
Product Description

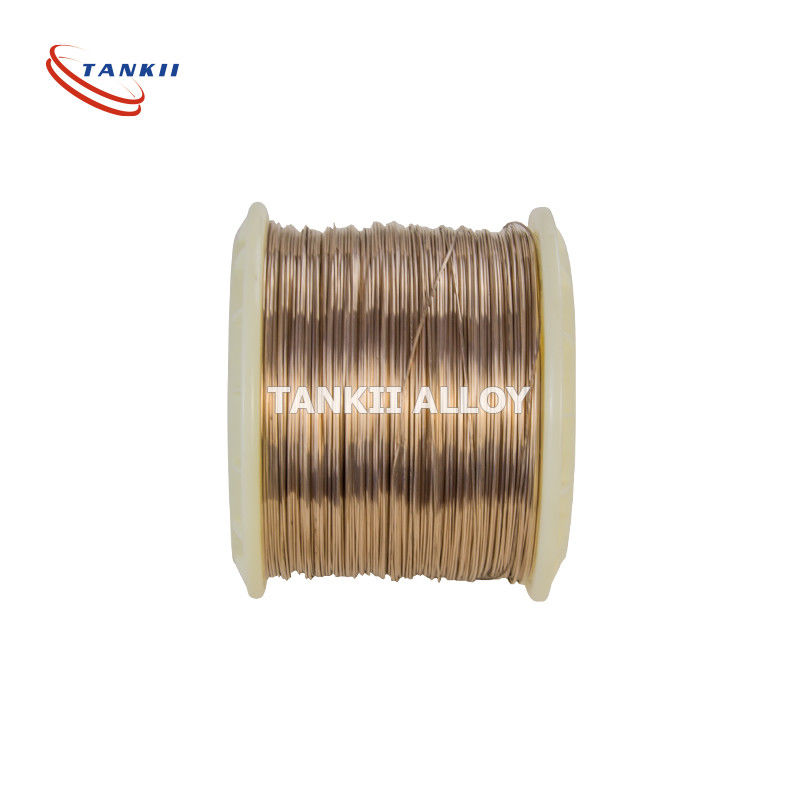

Manganin is an alloy of typically 86% copper,12% manganese,and 2%nickel.
A resistance alloy with moderate resistivity and low temperature coefficent.The resistance/temperature curve is not as flat as the constantans nor are the corrosion resistance properties as good.
Below alloys can be suppied in the form of round wires in the range 8.0 to 0.02 mm in bare or enamelled condition,also with rayon or silk covering . The product line includes sheets,ribbons,flat wires ,stranded wires,rods and tubes.
Manganin foil and wire is used in the manufacture of resistors,particularly ammeter shunts,because of its virtually zero temperature coefficient of resistance value and long term stability.Several manganin resistors served as the legal standard for the ohm.Manganin wire is also used as an electrical conductor in cryogenic systems,minimizing heat transfer between points which need electrical connections.
Product details
| product type | wire |
| carbon content | none |
| shunt material | copper strip,manganin |
| trademark | tankii |
| melting point | 1450℃ |
Company Profile
Shanghai Tankii Alloy Matarial Co.,LTD focus on the production of Nichrome Alloy,Thermocouple wire,FeCrAl alloy ,precision alloy,copper nickel alloy,thermal spray alloy etc in the form of wire ,sheet ,tape,strip,rod and plate.
We' ve already got ISO 9001 quality system certificate and approval of ISO14001 environment protection system.We own a complete set of advanced production flow of refining,cold reduction,drawing and heat treating etc.We also proudly have R&D capasity.
Shanghai Tankii Alloy Material Co.,ltd has accumulated lots of experiences over 35 years in this field.During these years,more than 600 management elites and high science and technology talents were employed.They participated in every walk of the company life,which make our company keep blooming and invincible in the competitive market.
Based on the principle of "first quality,sincere service",our managing ideology is pursuing technology innovation and creating the top brand in the alloy field.We persist in Quality -the foundation of the survival.It is our forever ideology to serve you with full heart and soul.We committed to provide customers all over the world with high - qualtiy ,competive products and perfet service.Our products ,such as nichrome alloy,precision alloy,thermocouple wire,fecral alloy,copper nickel alloy,thermal spray alloy have been exported to over 60 countries in the world.
We are willing to establish strong and long-time parnership with our customers.
Most complete range of products dedicated to resistance,thermocouple and furnace manufacturers.
Quality with end to end production control.
Technical support and customer servicec.
