Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI
Model Number: Manganin Alloy
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Packaging Details: on spool,paper box,wooden case/pallet,in coil
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600T per moth
Port: |
Shanghai,China |
Brand: |
Tankii |
Mn: |
11-13 |
Ni: |
2-5 |
Cu: |
Bal |
Max Operating Temperature(℃): |
10-80 |
Density (g/cm³): |
8.4 |
Resistivity At 20℃(μΩ/cm): |
44 |
Elongation(%): |
≧15 |
TCR(x10﹣6/℃): |
0~+40 |
EMF Vs Cu μV/℃(0~100℃): |
≦2 |
Tensile Strength (N/m㎡): |
Soft 343~539 Hard>637 |
Hardness (Hv): |
Soft 100-172 Hard 140-300 |
Enamel Ability: |
Good |
Application: |
Industry |
Conductor Material: |
Mn,Ni,Cu |
Type: |
Low Voltage |
Insulation Material: |
PVC |
Rated Voltage: |
300/500V |
Conductor Type: |
Solid |
Sheath: |
PVC |
Core: |
Single Core |
Rated Temperature: |
-60-200℃ |
Packing: |
As Request |
MOQ: |
20KG |
Port: |
Shanghai,China |
Brand: |
Tankii |
Mn: |
11-13 |
Ni: |
2-5 |
Cu: |
Bal |
Max Operating Temperature(℃): |
10-80 |
Density (g/cm³): |
8.4 |
Resistivity At 20℃(μΩ/cm): |
44 |
Elongation(%): |
≧15 |
TCR(x10﹣6/℃): |
0~+40 |
EMF Vs Cu μV/℃(0~100℃): |
≦2 |
Tensile Strength (N/m㎡): |
Soft 343~539 Hard>637 |
Hardness (Hv): |
Soft 100-172 Hard 140-300 |
Enamel Ability: |
Good |
Application: |
Industry |
Conductor Material: |
Mn,Ni,Cu |
Type: |
Low Voltage |
Insulation Material: |
PVC |
Rated Voltage: |
300/500V |
Conductor Type: |
Solid |
Sheath: |
PVC |
Core: |
Single Core |
Rated Temperature: |
-60-200℃ |
Packing: |
As Request |
MOQ: |
20KG |
Product Description
Manganin is an alloy of typically 86% copper,12% manganese,and 2%nickel.
A resistance alloy with moderate resistivity and low temperature coefficent.The resistance/temperature curve is not as flat as the constantans nor are the corrosion resistance properties as good.
Below alloys can be suppied in the form of round wires in the range 8.0 to 0.02 mm in bare or enamelled condition,also with rayon or silk covering . The product line includes sheets,ribbons,flat wires ,stranded wires,rods and tubes.
Manganin foil and wire is used in the manufacture of resistors,particularly ammeter shunts,because of its virtually zero temperature coefficient of resistance value and long term stability.Several manganin resistors served as the legal standard for the ohm.Manganin wire is also used as an electrical conductor in cryogenic systems,minimizing heat transfer between points which need electrical connections.
Product details

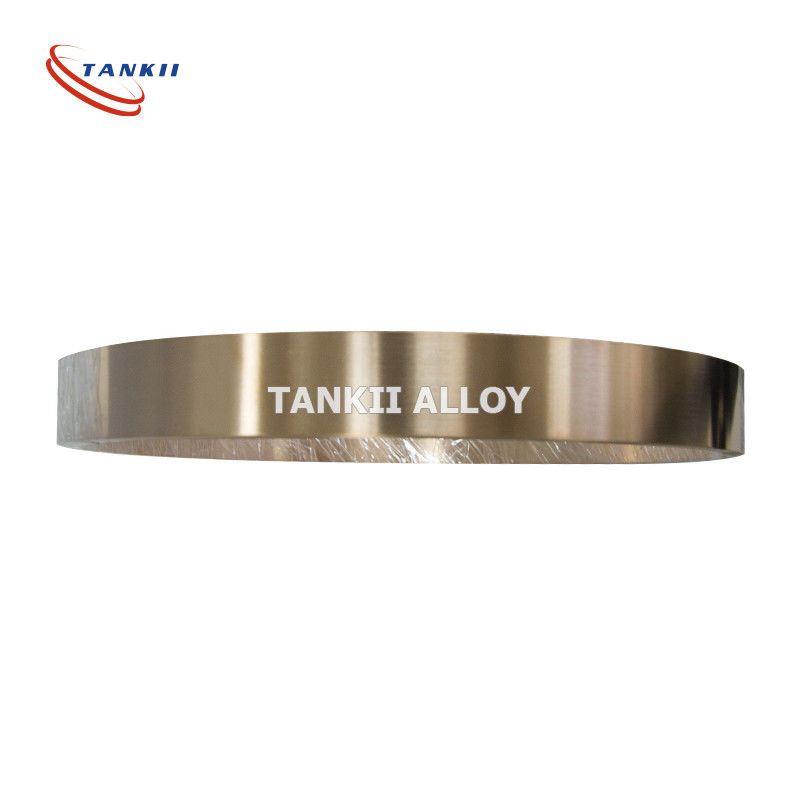

| product type | strip |
| carbon content | none |
| shunt material | copper strip,manganin |
| trademark | tankii |
| melting point | 1450℃ |
