Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: BS,ASTM,AISI,CTI
Model Number: bayonent heating elements
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Packaging Details: on spool,paper box,wooden case/pallet,in coil
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600pcs per moth
Port: |
Shnaghai,China |
Brand: |
TankiI |
Core Components: |
Resistance Wire |
Type: |
Immersion Heater |
Voltage: |
110v~480v |
Warranty: |
1 Years |
Power Source: |
Electric |
Heating Tube Filler: |
Magnesium Oxide |
Wattage Tolerance:: |
+5%- -10% |
Tube Diameter: |
6-20mm |
After Warranty Service: |
Online Support |
Dimension(L*W*H): |
Customized |
Key Selling Points: |
Competitive Price |
Power(W): |
1-3KW |
Condition: |
New |
MOQ: |
50pcs |
Port: |
Shnaghai,China |
Brand: |
TankiI |
Core Components: |
Resistance Wire |
Type: |
Immersion Heater |
Voltage: |
110v~480v |
Warranty: |
1 Years |
Power Source: |
Electric |
Heating Tube Filler: |
Magnesium Oxide |
Wattage Tolerance:: |
+5%- -10% |
Tube Diameter: |
6-20mm |
After Warranty Service: |
Online Support |
Dimension(L*W*H): |
Customized |
Key Selling Points: |
Competitive Price |
Power(W): |
1-3KW |
Condition: |
New |
MOQ: |
50pcs |

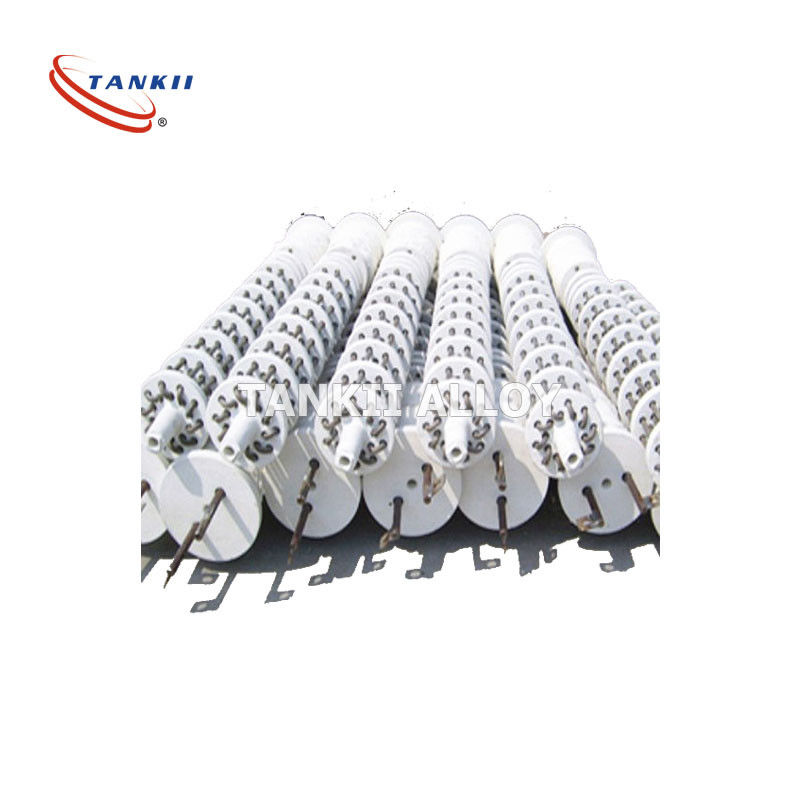

Bayonet heating elements are a reliable and efficient solution for electric heating applications.
These elements are custom designed for the voltage and input (KW) required to satisfy the application. There are a wide variety of configurations available in either large or small profiles. Mounting can be vertical or horizontal, with heat distribution selectively located according to the required process. Bayonet elements are designed with ribbon alloy and watt densities for furnace temperatures up to 1800°F (980°C).
Bayonet heating elements are manufactured from a variety of materials,these include chrome,nickel,aluminum and iron wires. Elements can be designed to operate within most environmental conditions.Elements are often encased within protective tubes or sheaf’s for indirect heating applications or where caustic environments may damage the heating elements.bayonet heating elements are available in high wattage capability in small and large packages and sizes in a variety of package configurations.the heating elements assembly can mounted in any orientation.
| ELEMENT O.D. (in.) (NiCr ALLOY) |
Max Kilowatts/Linear Foot | ELEMENT O.D. (in.) (FeCrAl ALLOY) |
||||
| UP TO 1000°F | 1000°F To 1350°F | 1350°F To 1700°F | 1700°F TO 2050°F | 2050°F TO 2250°F | ||
| 2 3/4 | 2.38 | 2.20 | 1.88 | 1.56 | ||
| 2.28 | 2.10 | 1.87 | 2 5/8 | |||
| 3 3/8 | 3.80 | 3.47 | 2.96 | 2.44 | ||
| 3.83 | 3.48 | 3.12 | 3 1/8 | |||
| 3 3/4 | 4.57 | 4.14 | 3.48 | 2.94 | ||
| 3.83 | 3.48 | 3.12 | 4 5/16 | |||
| 4 3/4 | 6.46 | 5.83 | 4.99 | 4.14 | ||
| 3.83 | 5.40 | 4.90 | 4 7/8 | |||
| 5 3/4 | 7.26 | 6.59 | 5.68 | 4.68 | ||
| 6.43 | 5.84 | 5.28 | 6 | |||
| 6 1/8 | 8.12 | 7.36 | 6.32 | 5.27 | ||
| 7.28 | 6.60 | 6.00 | 6 3/4 | |||
| 7 3/4 | 9.76 | 8.86 | 7.62 | 6.36 | ||
Horizontal Elements showing various locations for ceramic spacers
Company Profile
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
