Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: BS,ASTM,AISI,CTI
Model Number: bayonent heating elements
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Packaging Details: on spool,paper box,wooden case/pallet,in coil
Delivery Time: 30days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600pcs per moth
Port: |
Shnaghai,China |
Brand: |
TankiI |
Core Components: |
Resistance Wire |
Type: |
Immersion Heater |
Voltage: |
110v~480v |
Warranty: |
1 Years |
Power Source: |
Electric |
Heating Tube Filler: |
Magnesium Oxide |
Wattage Tolerance:: |
+5%- -10% |
Tube Diameter: |
6-20mm |
After Warranty Service: |
Online Support |
Dimension(L*W*H): |
Customized |
Key Selling Points: |
Competitive Price |
Power(W): |
1-3KW |
Condition: |
New |
MOQ: |
50pcs |
Port: |
Shnaghai,China |
Brand: |
TankiI |
Core Components: |
Resistance Wire |
Type: |
Immersion Heater |
Voltage: |
110v~480v |
Warranty: |
1 Years |
Power Source: |
Electric |
Heating Tube Filler: |
Magnesium Oxide |
Wattage Tolerance:: |
+5%- -10% |
Tube Diameter: |
6-20mm |
After Warranty Service: |
Online Support |
Dimension(L*W*H): |
Customized |
Key Selling Points: |
Competitive Price |
Power(W): |
1-3KW |
Condition: |
New |
MOQ: |
50pcs |

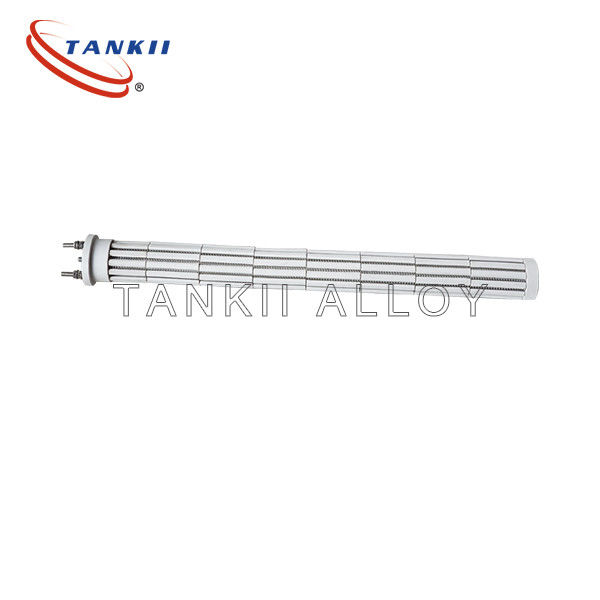

Bayonet heating elements are a reliable and efficient solution for electric heating applications.
These elements are custom designed for the voltage and input (KW) required to satisfy the application. There are a wide variety of configurations available in either large or small profiles. Mounting can be vertical or horizontal, with heat distribution selectively located according to the required process. Bayonet elements are designed with ribbon alloy and watt densities for furnace temperatures up to 1800°F (980°C).
Horizontal Elements showing various locations for ceramic spacers
| ELEMENT O.D. (in.) (NiCr ALLOY) |
Max Kilowatts/Linear Foot | ELEMENT O.D. (in.) (FeCrAl ALLOY) |
||||
| UP TO 1000°F | 1000°F To 1350°F | 1350°F To 1700°F | 1700°F TO 2050°F | 2050°F TO 2250°F | ||
| 2 3/4 | 2.38 | 2.20 | 1.88 | 1.56 | ||
| 2.28 | 2.10 | 1.87 | 2 5/8 | |||
| 3 3/8 | 3.80 | 3.47 | 2.96 | 2.44 | ||
| 3.83 | 3.48 | 3.12 | 3 1/8 | |||
| 3 3/4 | 4.57 | 4.14 | 3.48 | 2.94 | ||
| 3.83 | 3.48 | 3.12 | 4 5/16 | |||
| 4 3/4 | 6.46 | 5.83 | 4.99 | 4.14 | ||
| 3.83 | 5.40 | 4.90 | 4 7/8 | |||
| 5 3/4 | 7.26 | 6.59 | 5.68 | 4.68 | ||
| 6.43 | 5.84 | 5.28 | 6 | |||
| 6 1/8 | 8.12 | 7.36 | 6.32 | 5.27 | ||
| 7.28 | 6.60 | 6.00 | 6 3/4 | |||
| 7 3/4 | 9.76 | 8.86 | 7.62 | 6.36 | ||
