Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001, RoHS
Model Number: cral214
Payment & Shipping Terms
Minimum Order Quantity: 20kgf
Packaging Details: Spool/Coil, Pallet
Delivery Time: 8-20 days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 200+ton+month
Material: |
Fecral |
HS Code: |
72230000 |
Color: |
Metallic Color |
Surface: |
Bright |
Material: |
Fecral |
HS Code: |
72230000 |
Color: |
Metallic Color |
Surface: |
Bright |
GNormal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.12 | 0.025 | 0.025 | 0.70 | Max 1.0 | 18.0~21.0 | Max 0.60 | 3.0~4.2 | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 550 | 750 |
16
|
Typical Physical properties
| Density (g/cm3) | 7.35 |
| Electrical resistivity at 20ºC(Om*mm2/m) | 1.23 |
| Conductivity coefficient at 20ºC (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 13.5 |
| Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.49 |
| Melting point (ºC) | 1500 |
| Max continuous operating temperature in air (ºC) | 1100 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC | 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1 | 1.005 | 1.014 | 1.028 | 1.044 | 1.064 | 1.090 | 1.120 | 1.132 | 1.142 | 1.150 | - | - | - |
Style of supply
| Alloys Name | Type | Dimension | ||

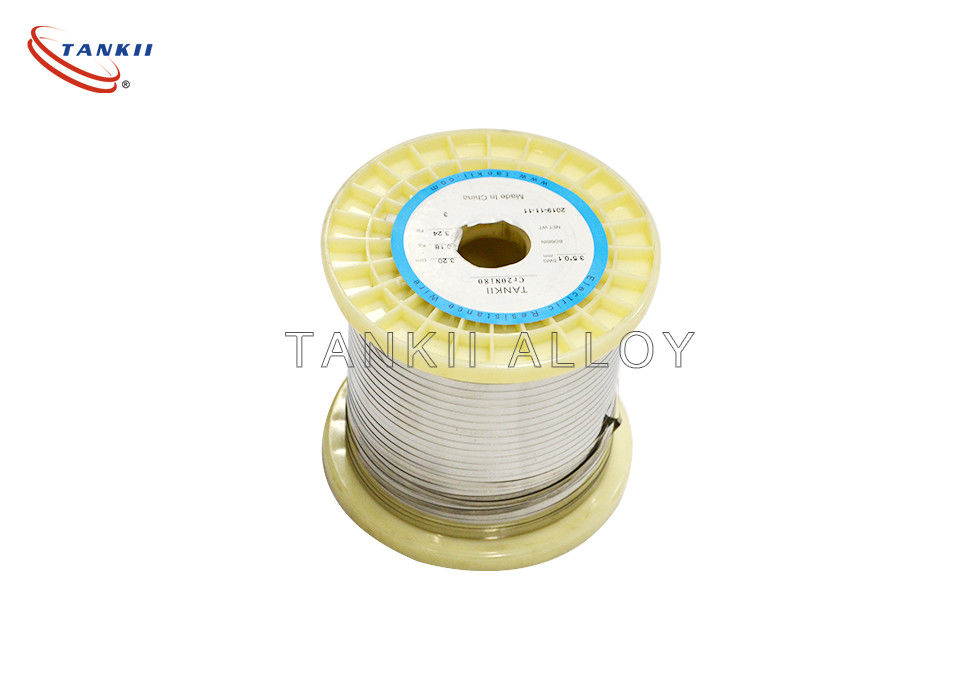

| 0cr21al4 | Wire | D=0.03mm~8mm | ||
| 0cr21al4 | Ribbon | W=0.4~40mm | T=0.03~2.9mm | |
| 0cr21al4 | Strip | W=8~250mm | T=0.1~3.0mm | |
| 0cr21al4 | Foil | W=6~120mm | T=0.003~0.1mm | |
| 0cr21al4 | Bar | Dia=8~100mm | L=50~1000mm | |
OTHER Chemical Composition And Main Properties Of FeCrAl
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
