0Cr27Al7Mo2 FeCrAl Alloy FeCrAl Heating Rod For Thermocouple

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr27Al7Mo2/

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: On Spool,In Coil

Delivery Time: 5-10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

0Cr27Al7Mo2 FeCrAl Alloy

,

FeCrAl Heating Rod

,

Thermocouple FeCrAl Alloy

Application:
Industry
Shape:
Rod/bar/round Material
Material:
FeCrAl
Chemical Composition:
Ferro Chrome Aluminium
Surface:
Bright,acid White/oxidized
Application:
Industry
Shape:
Rod/bar/round Material
Material:
FeCrAl
Chemical Composition:
Ferro Chrome Aluminium
Surface:
Bright,acid White/oxidized
Description

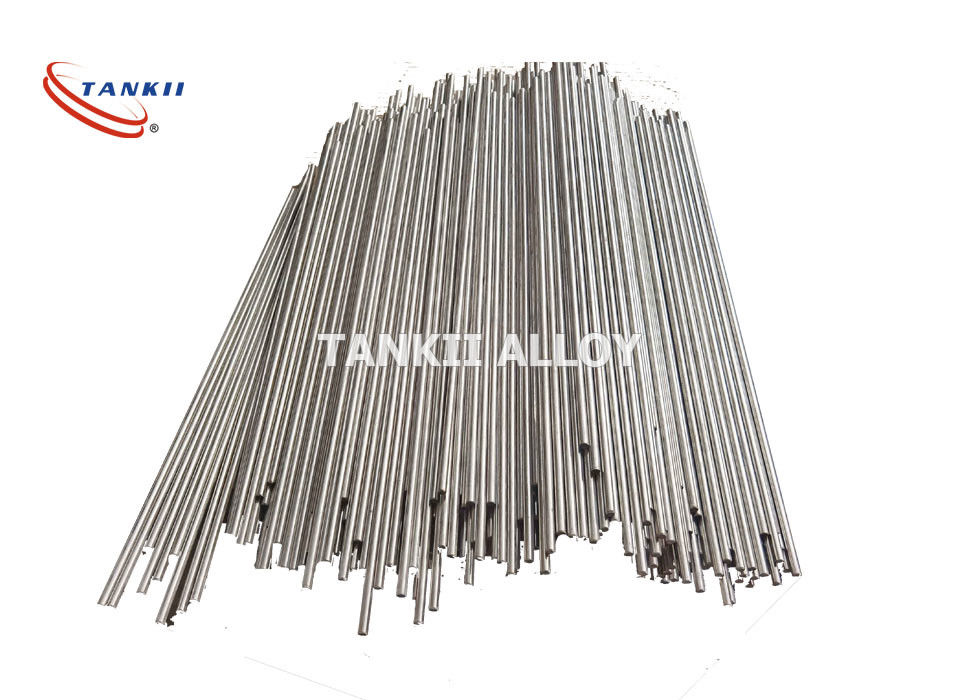

0Cr27Al7Mo2 FeCrAl Alloy FeCrAl Heating Rod For Thermocouple

FeCrAl( 0Cr27Al7Mo2) resistance alloy

With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, it is widely used in the single crystal furnace, sintering furnace, ceramic calcining furnace and heat treatment furnace.


0Cr27Al7Mo2
Chemical Content(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.05 0.025 0.025 0.20 Max 0.40 26.5~27.8 Max 0.60 5.0~7.0 Bal. Mo 1.8-2.2

Mechanical Properties

Max Continuous Service Temp 1350ºC
Resisivity at 20ºC 1.45 ohm mm2/m
Density 7.1 g/cm3
Thermal Conductivity 46.1 KJ/m·h·ºC
Coefficient of Thermal Expansion 16.0×10-6/ºC
Melting Point 1510ºC
Tensile Strength 637~784 Mpa
Elongation Min 12%
Section Variation Shrink Rate 65~75%
Repeatedly Bend Frequency Min 5 times
Continuous Service Time -
Hardness 200-260HB
Micrographic Structure Ferrite
Magnetic Property Magnetic



Temperature Factor of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC 700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC
1 0.997 0.996 0.994 0.991 0.990 0.990 0.990 0.990 0.990 0.990 0.990 0.990
