Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr8020
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Packaging Details: Carton Box
Delivery Time: 2~5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000Ton/Year

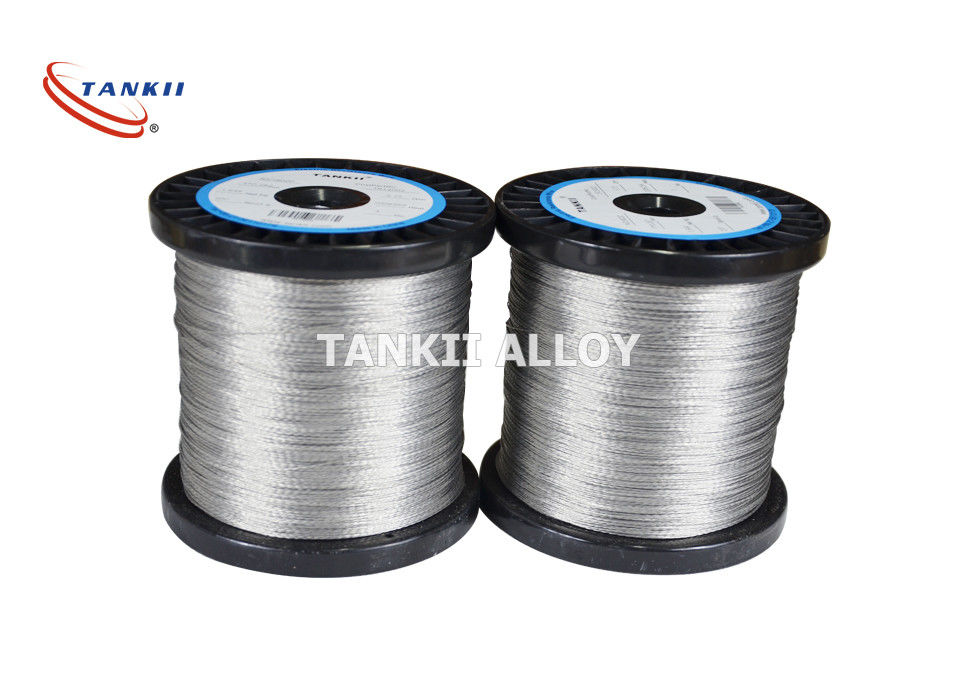

Item: |
Stranded Nichrome Wire 5*0.287mm Used For Heating Cable |
Material: |
Nickel 80%, Chromium 20% |
Surface: |
Bright |
Pakage: |
On Bobbin |
Item: |
Stranded Nichrome Wire 5*0.287mm Used For Heating Cable |
Material: |
Nickel 80%, Chromium 20% |
Surface: |
Bright |
Pakage: |
On Bobbin |
NiCr8020NiCr8020 Nichrome8020/Alloy 20 Wire Mesh China Supplier
the professional manufacturer and exporter for different material woven wire mesh.
Which is the leader of corrosion resistant, high temperature resistant and strong acid alkali wire mesh products.
Nickel chromium 2080 high temperature heat treatment sintering mesh burning silver mesh filter screen
Product name: nickel-chrome alloy mesh nickel-chrome alloy filter mesh
Material: Ni-Cr alloy
Specification: 20-200 mesh
Brand: Cr20Ni80
Features: Excellent elongation, compressive strength, surface finish, oxidation resistance, sulfur resistance, permeability resistance and other functions.Repeated bending times, stable resistance and temperature coefficient, high allowable surface load, light specific gravity and reasonable price.
Application: industrial electric furnace, petroleum, chemical, pharmaceutical, electronic components sintering, national defense, aerospace, etc.
Specifications mesh 20 mesh -200 mesh wire diameter: 0.1-2mm width: 0.1-1.5 meters length: 30 meters/roll special specifications can be customized.
Country's Standards
Nichrome80-20(UNS N06003)
Nichrome60-16(UNS N06004)
Weave Term of Nichrome wire
Plain weave ,Twilled weave,Dutch weave, Welded weave, Knitted Weave,Crimped weave
Chemical Composition of Nichrome Wire
|
Nichrome Chemical Composition%
|
|||||||||
| Grade | C | P | S | Mn | Si | Cr | Ni | Al | Fe |
| Cr15Ni60 | <=0.08 | <=0.02 | <=0.015 | <=0.6 | 0.75-1.6 | 15.00-18.00 | 55.00-61.00 | <=0.50 | remainder |
| Cr20Ni80 | <=0.08 | <=0.02 | <=0.015 | <=0.60 | 0.75-1.6 | 20.00-23.00 | remainder | <=0.50 | <=1.00 |
| Cr20Ni35 | <=0.10 | <=0.03 | <=0.025 | <=1.00 | 1.00-3.00 | 18.00-21.00 | 34.00-37.00 | <=0.50 |
remainder |
Chemical:
Ni80Cr20
Chemical Content, %
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 |
- |
Main Advantage and Application:
(1). Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
(2).NiCr8020 widely used in househole, such as: grills, toaster ovens, air heater, clothes dryer, hand heaters and so on.
NiCr8020 widely used in the heating element which made for industrial heating furnace, such as tempering furnace and drying furnace.
Our service:
(1) We can provide a free sample for testing but the freight at yours.
(2) Mill test certificate will be provided after production, If it is necessary.
(3) Good packing methods to keep goods no damage during delivery
(4) We cooperate with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
Packing & Shipping:
Wire packing:
(1)In spool--when the diameter≤1.2mm
(2)In coil--when the diameter>1.2mm
(3)All the wire packd into cartons→cartons packed into plywood pallet OR wooden case
Regarding the size of the spool,please refer to the picture:
Delivery-When the pre-payment is confirmed:
(1)The requested products are in stock,we will send them out within 3 day
(2)The raw material is in stock,we will send out the products within 10 days.
(3)When we need to re-melt the material,it will take 20-25 days to send the products/
Stranded Nichrome Wire 5*0.287mm Used For Heating Cable
Shipping-By sea,by air,by express or other ways:
| By sea | By air | By express | |
| Japan,Korea,Taiwan | 2-3 days | ||
| Southeast Asia | 7-9 days | 2-3 days | |
| The Middle East | 20-25 days | 3-5 days | 3-5 days |
| India-Pakistan | 15-22 days | 3-5 days | 3-5 days |
| Mediterranean | 28-30 days | 3-5 days | 3-5 days |
| Europe | 28-35 days | 3-5 days | 3-5 days |
| Africa | 40-45 days | about 7 days | about 7 days |
| Australia | 18-32 days | 3-5 days | 3-5 days |
| West of America | 12-15 days | 3-5 days | 3-5 days |
| East of America | 25-35 days | 3-5 days | 3-5 days |
| Middle and South America | 30-55 days | about 7 days | about 7 days |
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, high speed steel products etc.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Please email or call us if there is need on nichrome wire.
