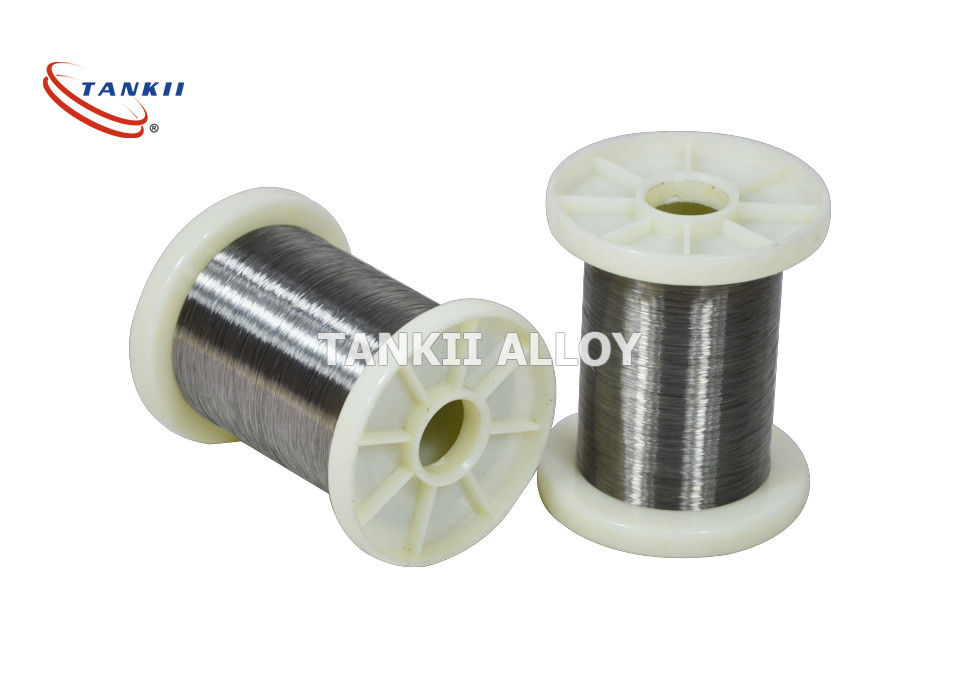

high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory

high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory

    • high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory
    • high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory
    • high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory
    • high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory
    • high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory
    • high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory
  • high resistance electrical heating FeCrAl alloy 0Cr23Al5 wire strip bu factory

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2015
    Model Number: 0Cr23Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 30kg
    Price: Negotiation
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-20 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Material: FeCrAl Density: 7.25g/cm3
    Tensile Strength: 630-780Mpa Condition: Soft Annealed
    Shape: Round Or Strip Application: Heating

    Product Description



    FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.

    It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.



    Grade
    0Cr23Al5
    Size
    1.2-10mm
    Surface
    acide washed/bright/oxidized/blue
    Weight
    25-30kg/roll
    Resistivity
    1.35±0.06μΩ.m
    Highest temperature
    1300℃
    Density
    7.25g/cm³
    Tensile strength
    ≥600N/mm²
    Elongation
    ≥12%
    Grade
    Highest temperature
    Resistivity
    Melting point
    Tensile strength
    Elongation
    0Cr21Al4
    1100℃
    1.23±0.06μΩ.m
    1500℃
    750
    ≥12
    0Cr25Al5
    1250℃
    1.42±0.07μΩ.m
    1500℃
    750
    ≥12
    0Cr23Al5
    1300℃
    1.35±0.06μΩ.m
    1500℃
    600
    ≥12
    0Cr21Al6NbCo
    1350℃
    1.43±0.07μΩ.m
    1510℃
    750
    ≥12
    0Cr27Al7Mo2
    1400℃
    1.53±0.07μΩ.m
    1520℃
    750
    ≥10
    KSC
    1350℃
    1.44±0.05μΩ.m
    1510℃
    750
    ≥16
    Cr20Ni80
    1200℃
    1.09±0.05μΩ.m
    1400℃
    750
    ≥20
    Cr15Ni60
    1150℃
    1.12±0.05μΩ.m
    1390℃
    750
    ≥20
    Cr20Ni35
    1100℃
    1.04±0.05μΩ.m
    1390℃
    750
    ≥20
    Cr20Ni30
    1100℃
    1.04±0.05μΩ.m
    1390℃
    750
    ≥20

    Our advantage:High quality,short delivery time,small MOQ.



    Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.



    Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.





    Main Property of FeCrAl Electric Resistance Heating wire



    Size Range:

    Wire: 0.018mm-10mm

    Rod: 8mm-50mm

    Ribbon: 0.05*0.2mm-2.0*6.0mm
    Strip: 0.5*5.0mm-5.0*250mm



    Alloy material Chemical composition %
    C P S Mn Si Cr Ni Al Fe others
    max(≤)
    1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 - 3.5-4.5 Rest -
    0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 - 4.5-5.3 Rest -
    0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 Rest -
    0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 Rest -
    0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 Rest -
    1Cr20Al3 0.06 0.025 0.025 0.7 ≤1.00 18.0-21.0 ≤0.60 3.0-4.2 Rest -
    0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 Rest Nb add0.5
    0Cr27Al7Mo2 0.05 0.025 0.025 0.2 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 Rest







    Other product series :

    FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr19Al3, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.

    NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.

    CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.

    Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.

    Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.

    Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.

    Incoloy alloy: Incoloy 800,800H,800HT,825,925.

    Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.

    Monel Alloy: Monel 400,K500.

    High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.

    Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.

    Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
