Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2015
Model Number: 0Cr19Al3
Payment & Shipping Terms
Minimum Order Quantity: 30kg
Price: Negotiation
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 7-20 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Material: |
FeCrAl |
Density: |
7.35g/cm3 |
Tensile Strength: |
637-784Mpa |
Condition: |
Soft Annealed |
Shape: |
Round Or Strip |
Application: |
Heating |
Material: |
FeCrAl |
Density: |
7.35g/cm3 |
Tensile Strength: |
637-784Mpa |
Condition: |
Soft Annealed |
Shape: |
Round Or Strip |
Application: |
Heating |
FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.

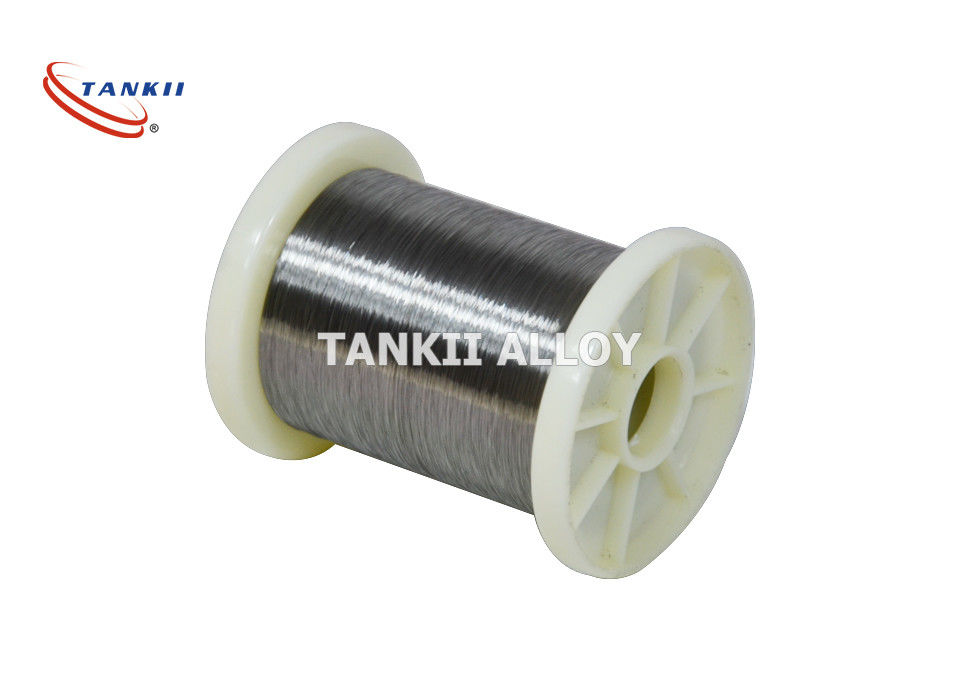

FeCrAl Heating Alloy 0Cr19Al3
0Cr19Al3
ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage:High quality,short delivery time,small MOQ.
Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.
Main Property of FeCrAl Electric Resistance Heating wire
Size Range:
Wire: 0.018mm-10mm
Rod: 8mm-50mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
| Alloy material | Chemical composition % | |||||||||
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | others | |
| max(≤) | ||||||||||
| 1Cr13Al4 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 12.5-15.0 | - | 3.5-4.5 | Rest | - |
| 0Cr15Al5 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 14.5-15.5 | - | 4.5-5.3 | Rest | - |
| 0Cr25Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 23.0-26.0 | ≤0.60 | 4.5-6.5 | Rest | - |
| 0Cr23Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 20.5-23.5 | ≤0.60 | 4.2-5.3 | Rest | - |
| 0Cr21Al6 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 19.0-22.0 | ≤0.60 | 5.0-7.0 | Rest | - |
| 1Cr20Al3 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 18.0-21.0 | ≤0.60 | 3.0-4.2 | Rest | - |
| 0Cr21Al6Nb | 0.05 | 0.025 | 0.025 | 0.7 | ≤0.60 | 21.0-23.0 | ≤0.60 | 5.0-7.0 | Rest | Nb add0.5 |
| 0Cr27Al7Mo2 | 0.05 | 0.025 | 0.025 | 0.2 | ≤0.40 | 26.5-27.8 | ≤0.60 | 6.0-7.0 | Rest | |
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr19Al3, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
