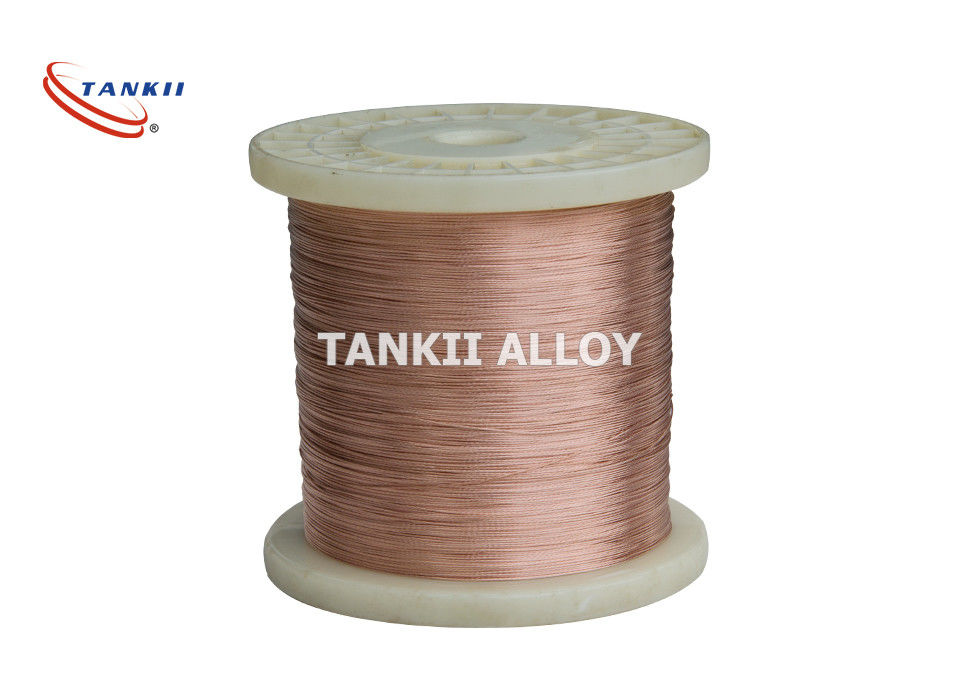

Emitter Resistor Magnesium Copper Nickel Alloy Wire

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: 6J12

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: Negotiation

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 15-28DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

10mm Copper Nickel Alloy Wire

,

Emitter Resistor Copper Nickel Alloy Wire

,

Magnesium Copper Nickel Alloy Wire

Chemical Composition:
Manganese Copper Nickel
Usage:
Emitter Resistor
Nominal Model:
6J8,6J12,6J13
Surface:
Bright, Smooth
Shape:
Round Wire
Material:
Mangnesium Alloy
Chemical Composition:
Manganese Copper Nickel
Usage:
Emitter Resistor
Nominal Model:
6J8,6J12,6J13
Surface:
Bright, Smooth
Shape:
Round Wire
Material:
Mangnesium Alloy
Description
Emitter Resistor Magnesium Copper Nickel Alloy Wire

Manganese Copper Electric Resistant Wire Good Stability For Emitter Resistor





Product Description:

Manganin alloy is one kind of electric resistance alloy which is mainly made of copper, manganese and nickel.

It has character of small resistance temperature coefficient,low thermal EMF vs copper E,outstanding long-term stability,good weldability and workability,which makes it to be superior precision surveying instrument.such as resistor measure voltage/current/resistance and more.

It is also high-quality electric heating wire for low-temperature heating element,such as heater of air-conditioning system,household heating appliances.



Manganin is a trademarked name for an alloy of typically 84% copper, 12% manganese and 4% nickel.

Manganin foil and wire is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.

Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.



Manganin alloy series:

6J8,6J12,6J13



Size dimension range:

Wire: 0.018-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm







Type Electrical resistivity
(20degreeΩ
mm²/m)
temperature coefficient of resistance
(10^6/degree)
Dens
ity
g/mm²
Max. temperature
(°c)
Melting point
(°c)
CuNi1 0.03 <1000 8.9 / 1085
CuNi2 0.05 <1200 8.9
200
1090
CuNi6 0.10 <600 8.9 220 1095
CuNi8 0.12 <570 8.9 250 1097
CuNi10 0.15 <500 8.9 250 1100
CuNi14 0.20 <380 8.9 300 1115
CuNi19 0.25 <250 8.9 300 1135
CuNi23 0.30 <160 8.9 300 1150
CuNi30 0.35 <100 8.9 350 1170
CuNi34 0.40 -0 8.9 350 1180
CuNi40 0.48 ±40 8.9 400 1280
CuNi44 0.49 <-6 8.9 400 1280



Advantages

Advantages 1. Low electric resisitance
2. Wide temperature range
3. Good heat resistant and corrosotion resisitant
4. Easy to be processed and lead welded
5. Cheaper than nichrome wire



Product Application:

Emitter Resistor Magnesium Copper Nickel Alloy Wire 0Emitter Resistor Magnesium Copper Nickel Alloy Wire 1Emitter Resistor Magnesium Copper Nickel Alloy Wire 2Emitter Resistor Magnesium Copper Nickel Alloy Wire 3
