0Cr15Al5 Fecral Wire Electric Heat Resistant Wire For Furnace

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2015

Model Number: 0Cr15Al5

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: Negotiation

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 7-20 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

Furnace Fecral Wire

,

0Cr15Al5 Electric Heat Resistant Wire

,

8.0mm Electric Heat Resistant Wire

Material:
FeCrAl
Surface:
Bright Or Oxidised
Use:
Industrial Furnace
Sample:
Available
Min Elongation:
16%
Tensile Strength:
630
Material:
FeCrAl
Surface:
Bright Or Oxidised
Use:
Industrial Furnace
Sample:
Available
Min Elongation:
16%
Tensile Strength:
630
Description

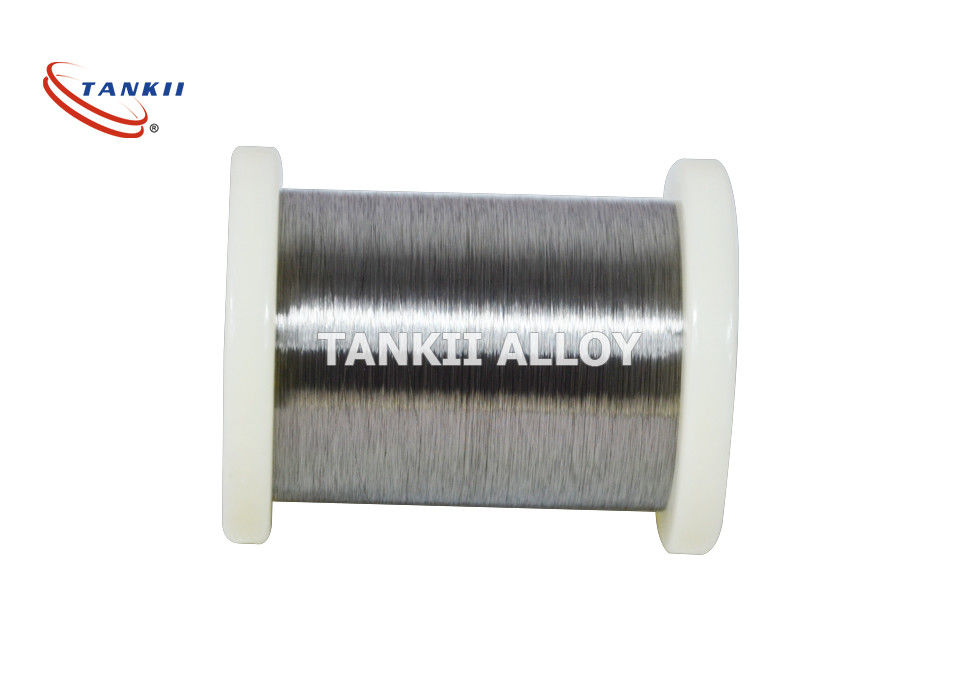

0Cr15Al5 Fecral Wire Electric Heat Resistant Wire For Furnace

0Cr15Al5 FeCrAl Electric Heating Resistance Alloy Wire for Furnace



Introduction



1)Alloy grades:
OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
In the form of wire, ribbon/strip:
Round Wire: Dia 0.04mm-8.0mm
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm



Max Continuous Service Temperature:
Resisivity 20'C
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:
1300'C
1.35+/-0.06ohm mm2/m
7.25g/cm3
60.2 KJ/m@h@'C
15.0×10-6/'C (20'C~1000'C)
1500'C
Min 12%
Ferrite
magnetic


2) Product Specifications:
Ferro-Chrome Alloys (Ferritic Alloys):
OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
Nickel-Chrome Alloys (Ni-Cu Alloys):
Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
Constantan Alloys (Cu-Ni Alloys):
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.

3) High quality assured:
Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.

4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD

0Cr15Al5 Fecral Wire Electric Heat Resistant Wire For Furnace 00Cr15Al5 Fecral Wire Electric Heat Resistant Wire For Furnace 10Cr15Al5 Fecral Wire Electric Heat Resistant Wire For Furnace 2
