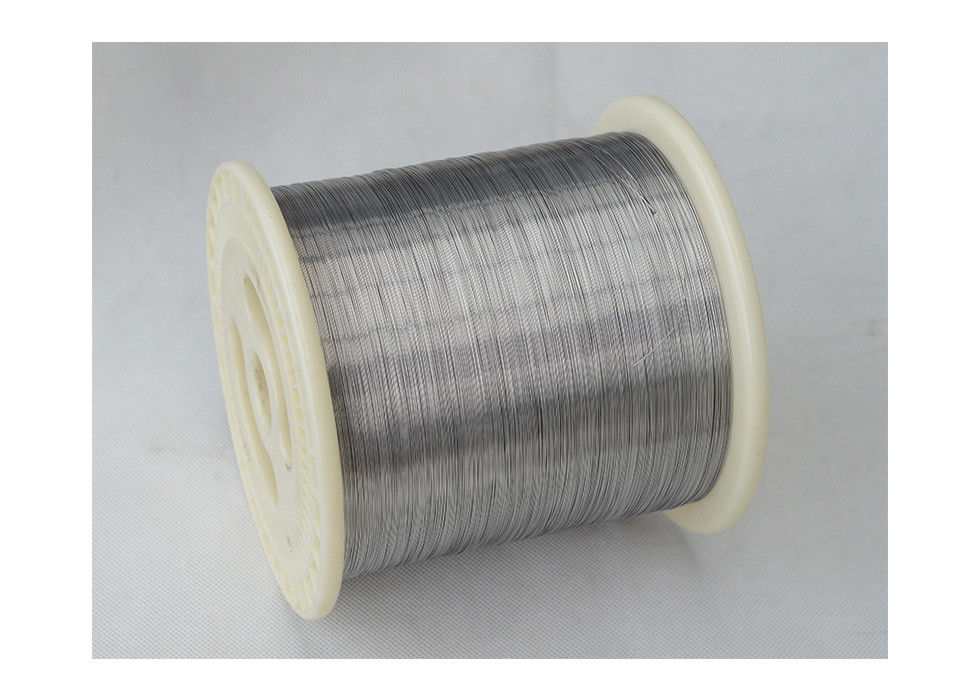

Electric Heat Resistant 0Cr15Al5 Fecral Wire For Furnace

Electric Heat Resistant 0Cr15Al5 Fecral Wire For Furnace

    • Electric Heat Resistant 0Cr15Al5 Fecral Wire For Furnace
  • Electric Heat Resistant 0Cr15Al5 Fecral Wire For Furnace

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001
    Model Number: 0Cr15Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: Negotiation
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-20 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 60+TON+MONTH
    Contact Now
    Detailed Product Description
    Material: Fecral Surface: Bright Or Oxidized
    Composition: Fe Bal, Cr 15%, Al 5% Sample: Available
    Min Elongation: 16%
    High Light:

    0Cr15Al5 Fecral Wire

    ,

    Heat Resistant Fecral Wire

    ,

    Furnace Fecral Wire

    0Cr15Al5 FeCrAl Electric Heating Resistance Alloy Wire for Furnace



    Introduction



    1)Alloy grades:
    OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
    We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
    In the form of wire, ribbon/strip:
    Round Wire: Dia 0.04mm-8.0mm
    Ribbon/strip: Thickness: 0.04mm-0.75mm
    Width: 0.08mm-6.0mm



    Max Continuous Service Temperature:
    Resisivity 20'C
    Density:
    Thermal Conductivity:
    Coefficient of Thermal Expansion:
    Melting Point:
    Elongation:
    Micrographic Structure:
    Magnetic Property:
    1300'C
    1.35+/-0.06ohm mm2/m
    7.25g/cm3
    60.2 KJ/m@h@'C
    15.0×10-6/'C (20'C~1000'C)
    1500'C
    Min 12%
    Ferrite
    magnetic


    2) Product Specifications:
    Ferro-Chrome Alloys (Ferritic Alloys):
    OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
    Nickel-Chrome Alloys (Ni-Cu Alloys):
    Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
    Constantan Alloys (Cu-Ni Alloys):
    CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.

    3) High quality assured:
    Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.

    4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
    5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
    Shanghai TANKII ALLOY MATERIAL Co., Ltd.
    FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD

    Chemical Composition (%)
    Alloy
    C
    P
    S
    Mn
    Si
    Cr
    Ni
    Al
    Fe
    0Cr15Al5
    0.12
    0.025
    0.025
    0.7
    ≤1.00
    14.5-15.5
    4.5-5.3
    Rest

    Properties
    Alloy
    0Cr15Al5
    Yield strength(MPa)
    590-690
    Elongation (%)
    > 12
    Density g/cm3
    7.15
    ·Electrical resistivity (Ωmm2 / m)
    1.30 ± 0.05
    The highest temperature continuous operation (° C)
    750
    Melting point (° C)
    1500
    Thermal conductivity (kJ / m * h * ° C)
    52.4
    Coefficient of linear expansion (α×10-6 / ° C)
    6.15
    Mesh Specification
    Wire Mesh GB/T 5330.1 ; GB/T 17492 ; JB/T 9155 0.5-250 mesh/Inch; Thickness: Min0.05mm
    Manufacture Process
    The manufacture of mesh is started with producing wire. The wire production includes: forging, rolling, annealing and drawing. The wire with right material and wire diameter will be produced. Then the warp wires will be put and prepared on the weaving machine, and then start weaving. From wire to mesh, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, mesh aperture, etc.
    Packing Process & Transportation
    Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
    Transportation: By air or By sea
