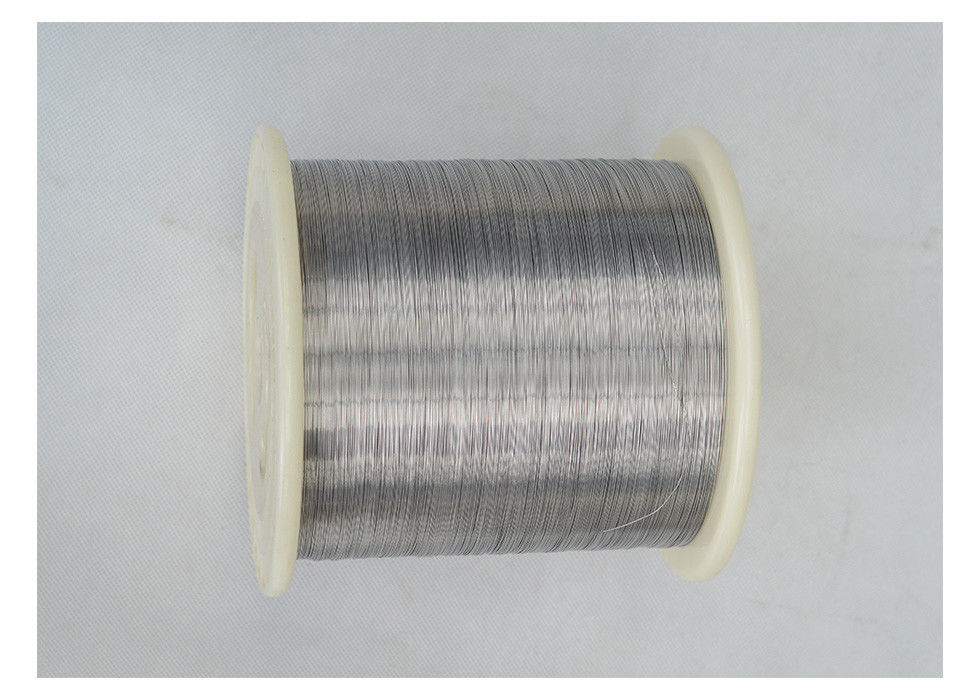

Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire

Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire

    • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire
    • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire
    • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire
    • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire
    • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire
    • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire
    • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire
  • Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001
    Model Number: 0Cr23Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg
    Price: Negotiation
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-20 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 60+TON+MONTH
    Contact Now
    Detailed Product Description
    Material: FeCrAl Shape: Round Wire
    Density: 7.25 Resisivity: 1.35
    Elongation: >12%
    High Light:

    0Cr23Al5 Low Resistance Wire

    ,

    FeCrAl Low Resistance Wire

    ,

    Low Resistance Fecral Wire

    Detailed Product Description
    High Light:

    fecral wire

    ,

    high temperature wire





    0Cr23Al5 Low Resistance Wire FeCrAl Alloy High Heat Wire Forging , Rolling , Annealing



    0Cr23Al5

    0Cr23Al5 is one kind of normal material of Fe-Cr-Al alloy.
    FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
    It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.



    FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.



    They are typically used in electrical heating elements in industrial furnaces and home appliances.



    Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.

    Forms:wire, bar, strip,sheet/plate,forging,tube/pipe,etc.



    Manufacture Processs The manufacture started with producing ingot by advanced vacuum melting process. The wire production includes forging, rolling, annealing and drawing. From the ingot to the final thin wire, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, hardness, etc.





    0Cr23Al5

    Chemical Content, %

    C P S Mn Si Cr Ni Al Fe Other
    Max
    0.06 0.025 0.020 0.50 ≤0.6 20.5-23.5 ≤0.60 4.2-5.3 Balance -





    Mechanical Properties

    Max Continuous Service Temperature:

    Resisivity 20℃:

    Density:

    Thermal Conductivity:

    Coefficient of Thermal Expansion:

    Melting Point:

    Elongation:

    Micrographic Structure:

    Magnetic Property:

    1300℃

    1.35+/-0.06ohm mm2/m

    7.25g/cm3

    60.2 KJ/m·h·℃

    15.0×10-6/℃ (20℃~1000℃)

    1500℃

    Min 12%

    Ferrite

    magnetic





    Temperature Factor of Electrical Resistivity

    20℃ 100℃ 200℃ 300℃ 400℃ 500℃ 600℃
    1.000 1.002 1.007 1.014 1.024 1.036 1.056

    700℃ 800℃ 900℃ 1000℃ 1100℃ 1200℃ 1300℃
    1.064 1.070 1.074 1.078 1.081 1.084 1.084
