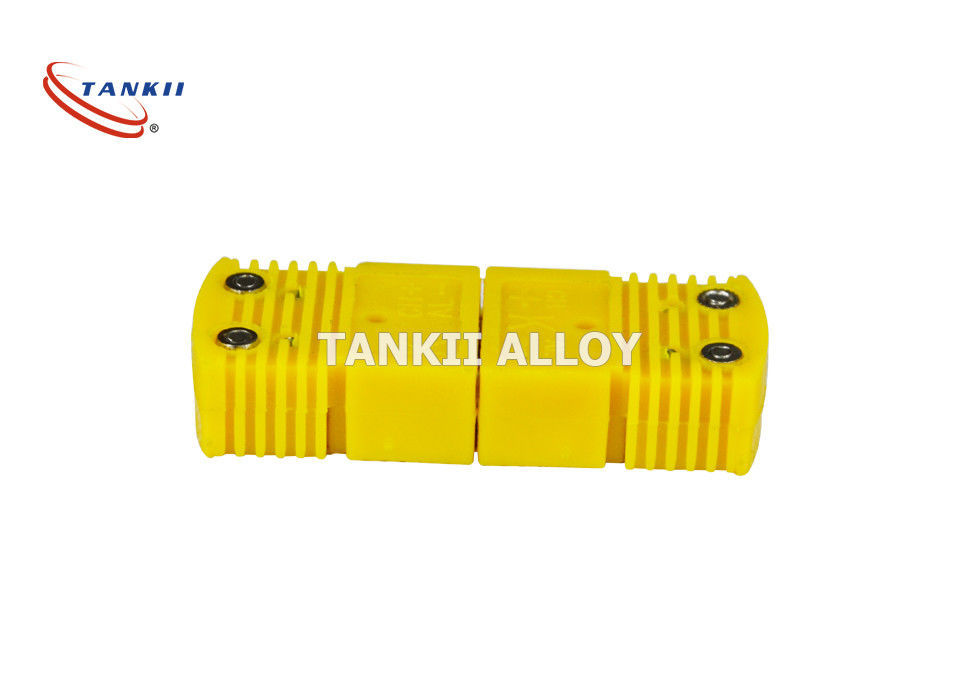

Solid Pin 16A IEC K Type Thermocouple Connector

Solid Pin 16A IEC K Type Thermocouple Connector
Solid Pin 16A IEC K Type Thermocouple Connector

Large Image :  Solid Pin 16A IEC K Type Thermocouple Connector

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K / J / T/ E/ B / S / R
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pcs
Price: Negotiation
Packaging Details: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery Time: 3-5 days after getting the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Piece/Pieces per day

Solid Pin 16A IEC K Type Thermocouple Connector

Description
Color: Custom Made Standard: IEC Or GB
Type: K, E, J, T. N.S./R Rated Current: 10A/15A/16A
Available Size: Mini And Big Customized: Avaliable
Item: Stock IEC Standard K Type Thermocouple Connector Yellow Color
Highlight:

K Type Thermocouple Connector

,

IEC Thermocouple Connector

,

16A Thermocouple Connector

Stock IEC Standard K Type Thermocouple Connector Yellow Color



Quick Details



Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.


Thermocouple connectors have two types of pins. The standard sized male plugs have polarized round pins. The polarized pins prevent mismatched connections. Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks. The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application. High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.



All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.



Stock IEC Standard K Type Thermocouple Connector Yellow Color



STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS

1. Solid Pin Design
2. High Quality Thermoplastic body
3. Polarized Round pins made from Thermocouple Alloys
4. Central cover screw design for quick wiring
5. Molded barriers to prevent short circuit of conductors
6. Captive cover screw for easy assembly
7. Easy wire connection through sandwich construction
8. Stainless Steel Screws
9. Molded barriers to prevent short circuit

10. Available in all calibrations; Type B, E, J, K, N, R, S, T

Solid Pin 16A IEC K Type Thermocouple Connector 0



Stock IEC Standard K Type Thermocouple Connector Yellow Color





Connector Type and Color

Type Color Conductor Material
KX yellow ( ANSI ) or green ( IEC ) NiCr-NiSi
NX orange NiCrSi-NiSiMg
EX purple NiCr-CuNi
JX black Fe-CuNi
TX blue Cu-CuNi
R/S green Cu-CuNi
PT100 white Cu/Ni



Pack and delivery:

Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm GW:22kg

Delivery time : 5-7 days after getting the payment

Delivery: By express



Application:

Solid Pin 16A IEC K Type Thermocouple Connector 1
