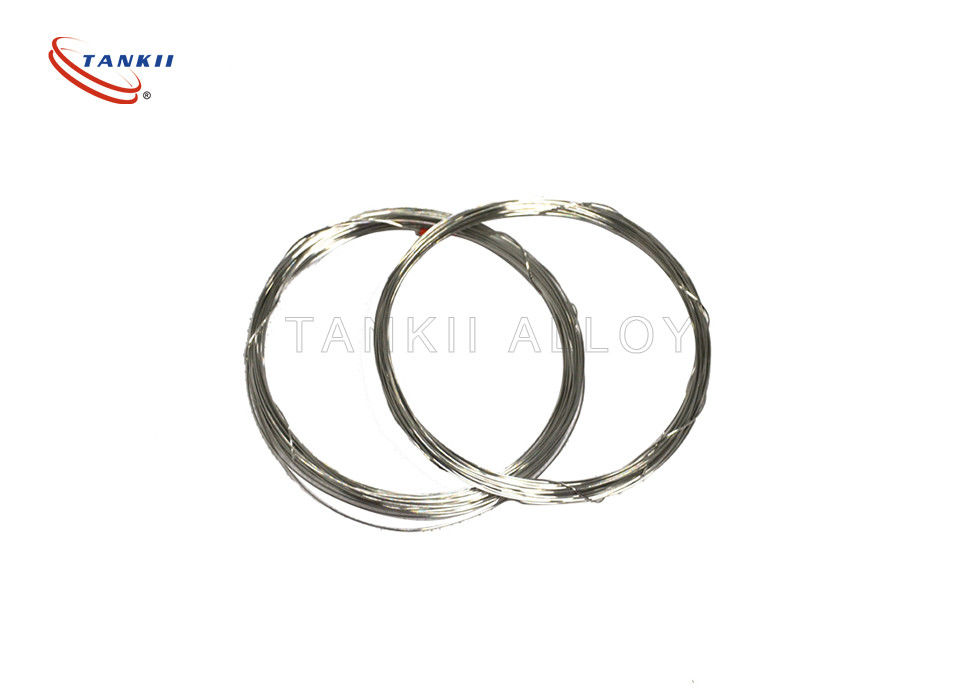

Bright Malleable S Type 0.04MM Bare Thermocouple Wire

Bright Malleable S Type 0.04MM Bare Thermocouple Wire

    • Bright Malleable S Type 0.04MM Bare Thermocouple Wire
  • Bright Malleable S Type 0.04MM Bare Thermocouple Wire

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: S/R/B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1m
    Price: Negotiation
    Packaging Details: Standard exoprt package in carton box or wooden box
    Delivery Time: 5-7 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 10Ton per year
    Contact Now
    Detailed Product Description
    Item: High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry Surface: Bright
    Diameter: 0.04~5.0mm Wire Type: Bare Wire
    Leading Time: 5~10 Days After Getting The Payment Application: Thermocouple Sensor , Temperature Measurement
    High Light:

    0.04MM Bare Thermocouple Wire

    ,

    Malleable Thermocouple Wire

    ,

    High Temperature Thermocouple Bare Wire

    High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry​


    Introduction:
    Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.
    Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.

    Alloys are generally produced by vacuum arc melting or induction melting. While common alloys used in the jewelry industry are malleable, less common alloys can be very brittle and unworkable.
    Platinum rhodium thermocouple(S/B/R TYPE)
    Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting

    High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry

    Characteristics:
    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

    Tankii products conform to the standards of IEC584 -1and IEC-2.


    Tankii Thermocouple strips, thermocouple connectors are available.
    Tankii thermocouple grade extension wire can be supplied as per your request.
    Tankii noble metal thermocouple alloy wire with class 1 and 2 are available.

    Application Range of S type thermocouple wire:

    1. Aerospace and Composites
    2. Aluminum industry
    3. Dental
    4. Forgings
    5. Glass, Ceramics, Clay Tiles, Bricks
    6. Heat Treating
    7. Petroleum, Downhole Oil & Gas
    8. Sensor Manufacturing
    9. Steel industry
    10. Utilities Power Generation
    11. Laboratory


    High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry



    Tankii noble metal Thermocouple Type and Temperature Range

    Thermocouple type and index


    Measurement Range

    Type


    Index



    PtRh30-PtRh6

    B 600~1700


    PtRh13-Pt

    R 0~1600


    PtRh10-Pt

    S 0~1600


    NiCr-NiSi

    K -200~1300


    NiCr-CuNi (constantan)

    E -200~900


    Fe-CuNi (constantan)

    J -40~750


    Cu-CuNi (constantan)

    T -200~350


    NiCrSi-NiSi

    N -200~1300


    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple
    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B 600~1700 ±0.25% t
    600~800 ±4
    800~1700 ±0.5%t
    Type R(S) 0~1100 ±1
    1100~1600 ±[1+(t-1100) ×0.3%]
    0~600 ±1.5
    600~1600 ±0.25% t
    Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type E -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type J -40~750 ±1.5℃ or ±0.4%t
    -40~750 ±2.5℃ or ±0.75%t
    Type T -40~350 ±0.5℃ or ±0.4%t
    -40~350 ±1.0℃ or ±0.75%t
    -200~40 ±1.0℃ or ±1.5%t


    Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.
    A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



    High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry
    Bright Malleable S Type 0.04MM Bare Thermocouple Wire 0
    Bright Malleable S Type 0.04MM Bare Thermocouple Wire 1



     Delivery and Packing of thermocouple wire:

    1. Packaging Details : Carton box.

    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

    3. Delivery: By express, air, sea as per thermocouple wire qty

    Bright Malleable S Type 0.04MM Bare Thermocouple Wire 2
    Bright Malleable S Type 0.04MM Bare Thermocouple Wire 3
    Bright Malleable S Type 0.04MM Bare Thermocouple Wire 4

    High Temperature Thermocouple Wire S Type Bare Wire Thermocouple Used For Aluminum Industry

    Welcome to call me or email to me for more information on S /B/R  type thermocouple wire, Thermocouple cable, thermocouple flat wire, thermocouple strip.
