Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire

Product Details

Place of Origin: Shanghai,China

Brand Name: Tankii

Certification: ISO9001:2008

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: Carton, Wooden case, with Plastic Film according to per client's requirements

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200+Ton+Month

Get Best Price
Contact Now
Specifications
Highlight:

Ni80Cr20 Nickel Chromium Wire

,

Polished Heating Resistance Wire

,

Annealed Nickel Chromium Wire

Advantages:
Bright Smooth Surface
Material:
Nickel Chromium
Composition:
20% Chromium 80% Nickel
Shape:
Round
Surface:
Polished Or Hot-rolled
Advantages:
Bright Smooth Surface
Material:
Nickel Chromium
Composition:
20% Chromium 80% Nickel
Shape:
Round
Surface:
Polished Or Hot-rolled
Description

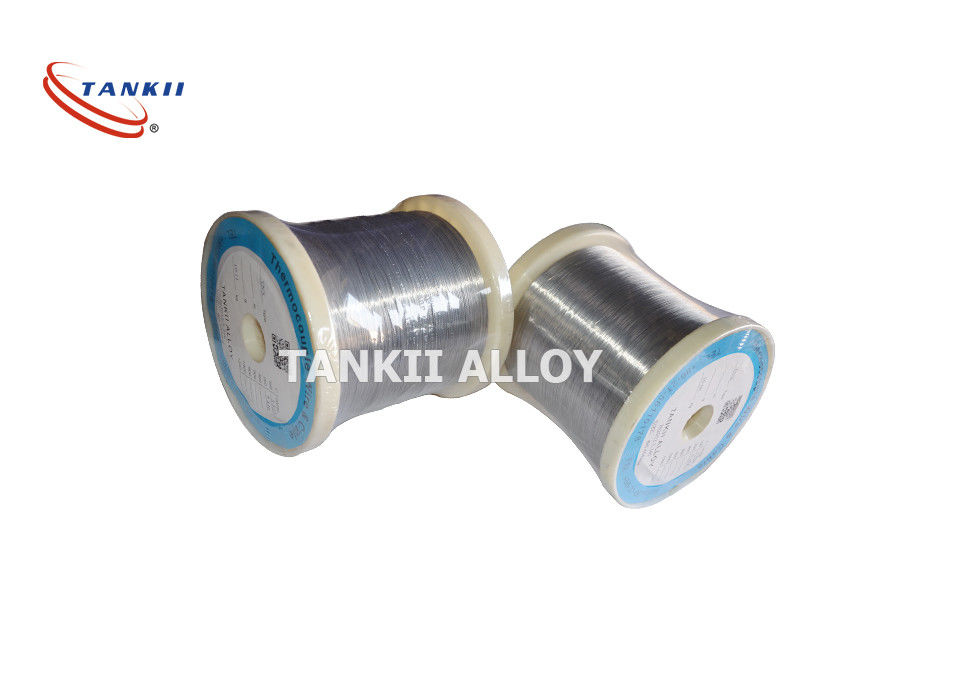

Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire

nicr 8020 Ni80Cr20 NiCr8020 electric resistance nicrome alloy wire Smooth Bright Surface Round Annealed Bar



Nichrome wire is an ideal material, it has good ductility,workability and weldability under high temperature and seismic strength.

Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil-forming ability.

Size dimension range:

Wire: 0.01-10mm

Ribbon: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr10Ni90,Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Alloy Nomenclature Performance Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical composition Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤1.0 ≤1.0 Rest Rest Rest
Max. continuous service temp. of element(ºC) 1200 1250 1150 1100 1100
Meltiing point ℃ 1400 1380 1390 1390 1390
Resistivity at 20ºC (μΩ·m) 1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
Density(g/cm3) 8.4 8.1 8.2 7.9 7.9
Thermal conductivity (KJ/m·h·ºC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α×10-6/ºC) 18 17 17 19 19
Melting point approx.( ºC) 1400 1380 1390 1390 1390
Elongation at rupture(%) >20 >20 >20 >20 >20
Micrographic structure Austenite Austenite Austenite Austenite Austenite
Magnetic properties Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic



Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire 0

Hot Sell

Cr15Ni60,Cr20Ni80,Cr10Ni90,Cr30Ni70 heating resistance wire



Main Advantage and Application



1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.



2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.



Size

wires:0.018-10mm

Ribbons:0.05*0.2-2.0*6.0mm

Strips:0.5*5.0-5.0*250mm

Bars:D10-100mm



Service

1.fine after-sale services
2.small order accepted
3.samples available

More Product

Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire 1Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire 2Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire 3

Bright Annealed Polished Ni80Cr20 Nickel Chromium Wire 4

FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.

NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.

CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/

Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.

Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.



Monel Alloy: Monel 400,K500.



Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
