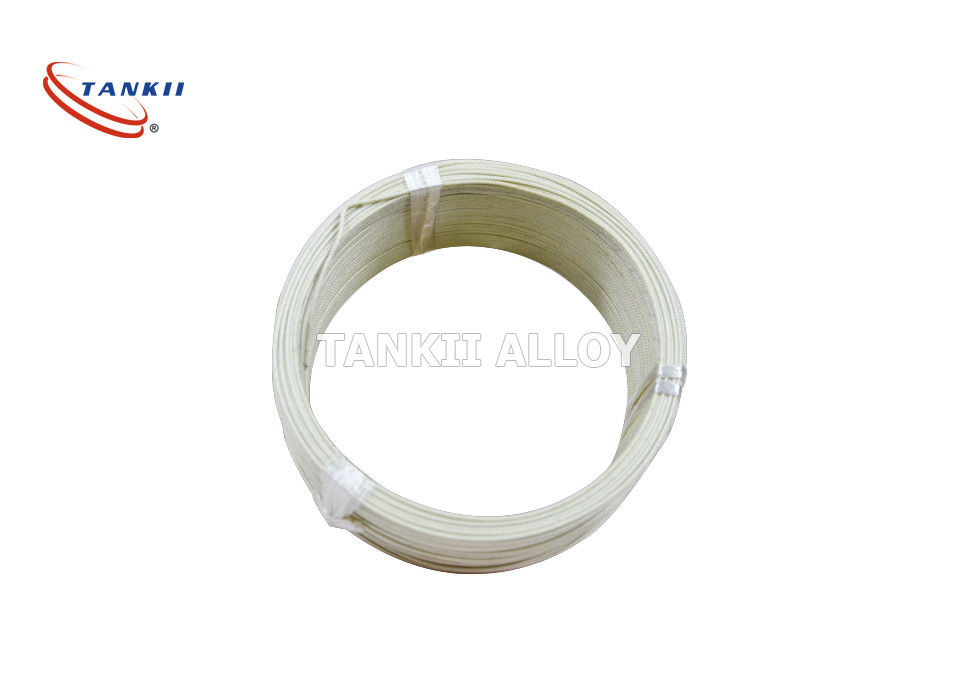

800 Degrees Fiberglass Insulated Nichrome Resistance Wire

800 Degrees Fiberglass Insulated Nichrome Resistance Wire

    • 800 Degrees Fiberglass Insulated Nichrome Resistance Wire
    • 800 Degrees Fiberglass Insulated Nichrome Resistance Wire
    • 800 Degrees Fiberglass Insulated Nichrome Resistance Wire
  • 800 Degrees Fiberglass Insulated Nichrome Resistance Wire

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: NiCr80/20

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg for NiCr2080 wire
    Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
    Delivery Time: About 10 days after gettting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Material: NiCr2080 Or Ni201 Surface: Insulation
    Item: Leading Time: 7 Days After Getting The Deposit MOQ: 500M
    High Light:

    Insulated Nichrome Resistance Wire

    ,

    800 Degrees Nichrome Resistance Wire

    ,

    NiCr2080 Nichrome Resistance Wire

    High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm



    Cr20Ni80 is an ideal material, it has good ductility,workability and weldability under high temperature and seismic strength.

    Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil-forming ability.



    NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.



    Product size:

    Flat strip thickness0.03—5mm,flat strip width0.2—500mm.



    High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm



    Ni80Cr20

    Chemical Content, %

    C P S Mn Si Cr Ni Al Fe Other
    Max
    0.08 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -





    Mechanical Properties

    Max Continuous Service:

    Resisivity( 20℃)/Ω·m:







    Density:

    Thermal Conductivity:

    Coefficient of Thermal Expansion:

    Melting Point:

    Elongation:

    Micrographic Structure:

    Magnetic Property:

    1200℃

    1.09 +/-0.05 (Dia: <0.5mm)

    1.13+/-0.05 (Dia: 0.50-3.00 mm)

    1.14+/-0.05 (Dia: >3.0mm)



    8.4 g/cm3

    60.3 KJ/m·h·℃

    18.0 α×10-6/℃

    1400 ℃

    Min 20%

    Austenite

    nonmagnetic



    800 Degrees Fiberglass Insulated Nichrome Resistance Wire 0



    Our Nichrome alloy are in the form of wire, ribbon, strip, coil.



    • Round wire
    • Ribbon (flat wire)
    • Strip / foil
    • Stranded wire
    • Sheet / plate



    Delivery conditions are:

    • Bright annealed
    • Oxidized
    • Pickled
    • Enameled

    Nichrome products sizes are:

    Wire: 0.018mm-10mm
    Ribbon: 0.05*0.2mm-2.0*6.0mm
    Strip: 0.02*5.0mm-5.0*250mm
    Bar: 10-100mm



    NiCr 80:20 – Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.



    NiCr 70:30 – Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.



    NiCr 60:15 – Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.



    NiCr 40:20 – Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.



    NiCr 30:20/ NiCr 20:25 – Industrial furnaces (upto 1050°C), heating elements of cooking equipment.



    Application:

    1. Dynamic Braking Starting Resistor
    2. Neutral Grounding Resistor
    3. Resistor Box
    4. Hot Cutting Wire
    5. Industrial Furnace Ovens
    6. Industry Heater

    High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm

    Application picture:
    800 Degrees Fiberglass Insulated Nichrome Resistance Wire 1


    Product :
    Bare wire
    800 Degrees Fiberglass Insulated Nichrome Resistance Wire 2
    With fiberglass insulation
    800 Degrees Fiberglass Insulated Nichrome Resistance Wire 3

    High Temperature 800 Degrees Fiberglass Insulated Single Core 0.5mm
