Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Insulation Material: |
PVC |
Conductor Type: |
Stranded |
Item: |
20AWG Multi Conductor Yellow And Red Chromel Alumel Thermocouple Wire With PVC |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
Kx, Tx Jx Type Thermocouple Cable |
Insulation Material: |
PVC |
Conductor Type: |
Stranded |
Item: |
20AWG Multi Conductor Yellow And Red Chromel Alumel Thermocouple Wire With PVC |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
Kx, Tx Jx Type Thermocouple Cable |
Conductor Name | Type | Applicable thermocouple type |
Cu-Constantan0.6 | SC or RC | S or R |
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
NiCr10-Constantan45 | EX | E |
Iron-Constantan 45 | JX | J |
Copper-Constantan 45 | TX | T |
Properties of insulation materials
Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
International Color code:
Packaging Details | Roll with plastic film wrapped and carton package |
---|---|
Delivery Detail | Shipped in 7 ~15 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.

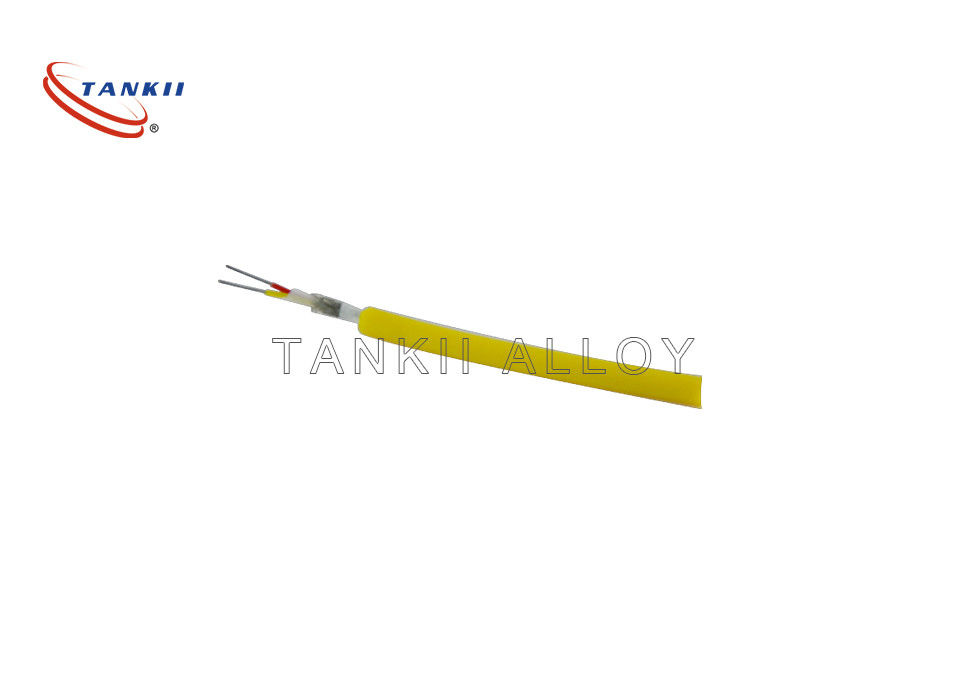

20AWG Multi Conductor Yellow And Red Chromel Alumel Thermocouple Wire With PVC
20AWG Multi Conductor Yellow And Red Chromel Alumel Thermocouple Wire With PVC
