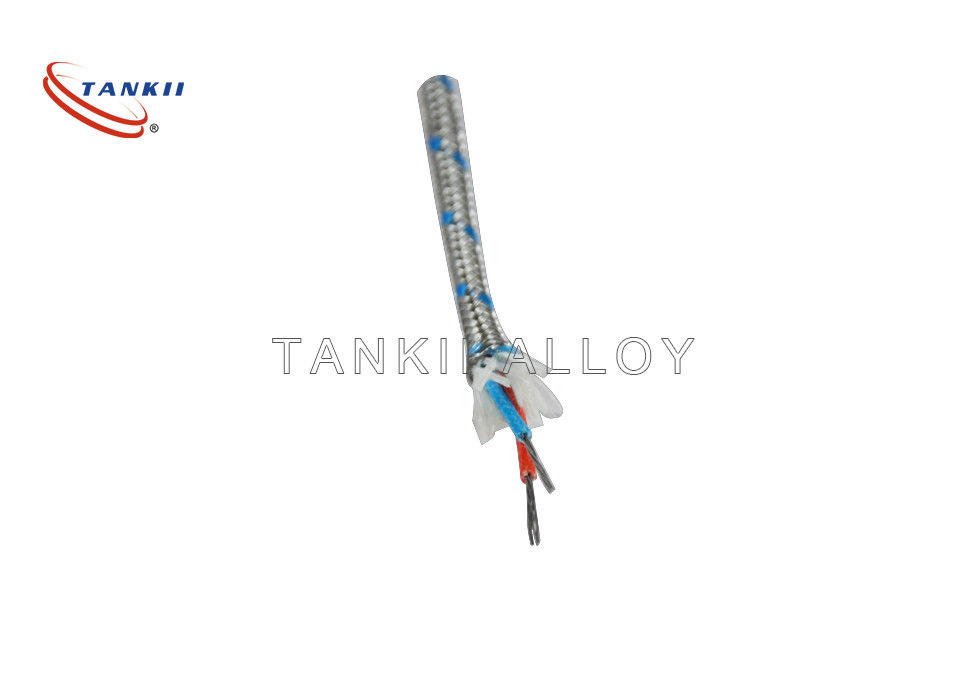

Fiberglass ANSI 7*0.3mm Screened K Type Thermocouple Wire

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: Rohs, SGS

Model Number: KX

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiation

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Delivery Time: 7 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

Screened K Type Thermocouple Wire

,

7*0.3mm Thermocouple Wire

,

ANSI Type K Thermocouple Wire

Insulation Material:
Fiberglass
Conductor Type:
Multi
Item:
Stainlesss Steel Screened K Type Thermocouple Wire 7*0.3mm With Blue Yarn
Standard:
ANSI, IEC
Leading Time:
5~7 Days After Getting The Deposit
Type:
Kx, Tx Jx Type Thermocouple Cable
Insulation Material:
Fiberglass
Conductor Type:
Multi
Item:
Stainlesss Steel Screened K Type Thermocouple Wire 7*0.3mm With Blue Yarn
Standard:
ANSI, IEC
Leading Time:
5~7 Days After Getting The Deposit
Type:
Kx, Tx Jx Type Thermocouple Cable
Description
Fiberglass ANSI 7*0.3mm Screened K Type Thermocouple Wire
Stainlesss Steel Screened K Type Thermocouple Wire 7*0.3mm With Blue Yarn

A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined.
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.

Stainlesss Steel Screened K Type Thermocouple Wire 7*0.3mm With Blue Yarn





Detailed Description
Conductor Name Type Applicable thermocouple type
Cu-Constantan0.6 SC or RC S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T





Fiberglass ANSI 7*0.3mm Screened K Type Thermocouple Wire 0

Fiberglass ANSI 7*0.3mm Screened K Type Thermocouple Wire 1








Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PVC 105 Very Good Very Good Good Fair Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent




International Color code:

Fiberglass ANSI 7*0.3mm Screened K Type Thermocouple Wire 2



Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment



Thermocouple wire With insulation used for extension cable or compensation cable.

Fiberglass ANSI 7*0.3mm Screened K Type Thermocouple Wire 3






Class 1 24AWG Type K Extension Cable With VITREOUS SILICA FIBER 1000 Deg C


FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.


2. When will you arrange the production?
In 12 hours since we get your payment.


3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request


4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.


5. What is your warranty ?
For most of our products, the warranty will be 12 months.


6. When will I get a solution for defective products?
Within 48 hours (on working days )


7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!


8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.



Stainlesss Steel Screened K Type Thermocouple Wire 7*0.3mm With Blue Yarn



Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
