Magnetic Ohmpm145 Fecral Electric Resistance Wire

Product Details

Place of Origin: Shanghai

Brand Name: Kanthal

Certification: ISO9001

Model Number: APM

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Price: 26.8-32.8 USD/KG

Packaging Details: Wooden case

Delivery Time: 7-30 working days

Payment Terms: T/T, Western Union

Supply Ability: 30000KG/MONTH

Get Best Price
Contact Now
Specifications
Highlight:

Ohmpm145 fire protection cable

,

Fecral fire retardant cable

Max Continuous Service Temperature:
1425℃
Resisivity:
1.45 Ohm·mm²/m
Density:
7.1 G/cm³
Melting Point:
1500℃
Yield Strength:
455 MPa
Elongation:
27%
Hardness:
225 Hv
Micrographic Structure:
Ferrite
Magnetic Property:
Magnetic
Max Continuous Service Temperature:
1425℃
Resisivity:
1.45 Ohm·mm²/m
Density:
7.1 G/cm³
Melting Point:
1500℃
Yield Strength:
455 MPa
Elongation:
27%
Hardness:
225 Hv
Micrographic Structure:
Ferrite
Magnetic Property:
Magnetic
Description

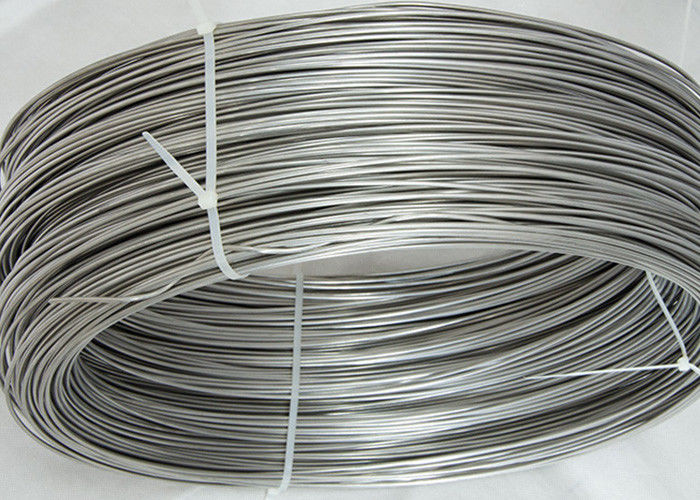

Magnetic Ohmpm145 Fecral Electric Resistance Wire

Ohmpm145 Fecral Resistance Wire /Instead of Apm Alloy with Comparable Performance and Favorable Price for Heating



Description

TANKII APM is an advanced powder metallurgical, dispersion strengthened, ferrite FeCrAl alloy which is used at tube temperatures up to 1250°C (2280°F). TANKII APM tubes have good form stability at high temperature. TANKII APM forms an excellent, non-scaling surface oxide, which gives good protection in most furnace environments, i.e. Oxidising, sulphurous and carbonaceous gas, as well as against deposits of carbon, ash, etc. The combination of excellent oxidation properties and formstability makes the alloy unique.



Chemical Content, %


C S P Mn Si Cr Al Fe
Max
0.08 0.025 0.020 0.50 Max 0.7 20.5-23.5 5.8 Bal



Application:

Typical applications for TANKII APM are radiant tubes in electrically or gas fired furnaces such as continuous galvanizing furnaces, seal quench furnaces, holding furnaces and dosing furnaces in the aluminium, zinc, lead industries, thermocouple protection tubes, furnace muffles for sintering applications.





As a result, when APM is used to manufacture Radiant Tube Heater and the Radiant Tube, it could give very long life with any bending or oxidation happening at the surface of the heater and the tube. TANKII tubular and APM tube, when used together, will give a minimum 3 times longer life than regular radiant tube heater set. Tubular heating elements are available in standard dimensions from 68 to 170 mm (2.6 to 6.6 inch) diameter and can be supplied in almost any length. Tubular elements can be used inside all types of radiant tubes or as stand-alone elements.



Magnetic Ohmpm145 Fecral Electric Resistance Wire 0

Magnetic Ohmpm145 Fecral Electric Resistance Wire 1
