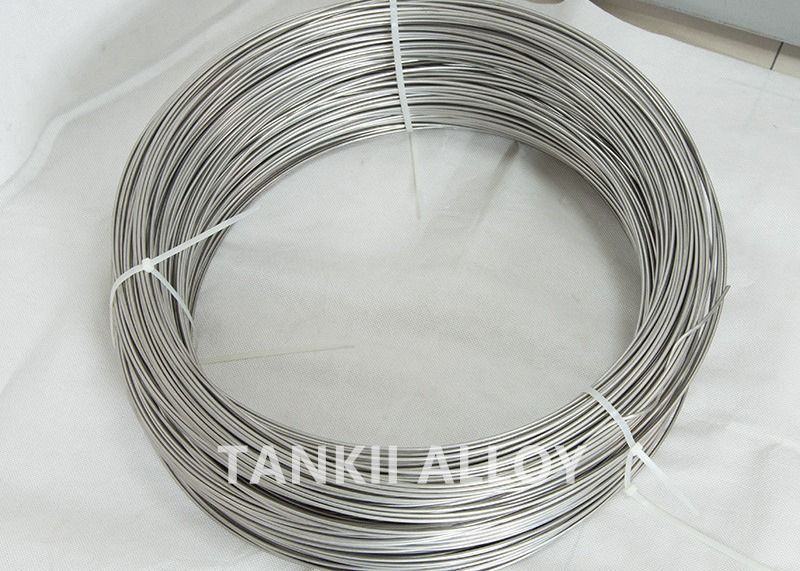

IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class

IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class

IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class
IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class

Product Details:

Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden case
Delivery Time: 5~20 days as per order qty
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Contact Now
Detailed Product Description
Standard: ANSI, IEC584 Application: Thermocouple Sensor, MI Cable
Tolerance: IEC 60584 Class 1 Diameter: Customized
Delivery Time: 5~10 Days After Getting The Payment Item: First Class Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm
High Light:

thermocouple lead wire

,

high temperature thermocouple wire

First Class Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm ​



Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



What's the application of Tankii thermocouple wire?

1. Mineral Insulated Thermocouples
2. Plastics/Packaging Industry T/C's & RTD's
3. Industrial Thermocouples
4. Food, Dairy & Pharmaceutical Probes



IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class 0



First Class Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm



Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Tankii products conform to the standards of IEC584 -1 and 2.


Tankii Thermocouple strips, thermocouple connectors are available.
Tankii thermocouple grade extension wire can be supplied as per your request.
Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.



First Class Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm

More parameters of Tankii thermocouple wires:

Tankii Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B 600~1700


PtRh13-Pt

R 0~1600


PtRh10-Pt

S 0~1600


NiCr-NiSi

K -200~1300


NiCr-CuNi (constantan)

E -200~900


Fe-CuNi (constantan)

J -40~750


Cu-CuNi (constantan)

T -200~350


NiCrSi-NiSi

N -200~1300


First Class Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t


Product packing details:

IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class 1

IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class 2

First Class Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm


Delivery and Packing of thermocouple wire:

1. Packaging Details : DIN spools with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty

IEC 60584 Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm First Class 3

First Class Coiled Type E / N Thermocouple Wire 1.29mm 1.5mm


Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple  flat wire, thermocouple strip.
