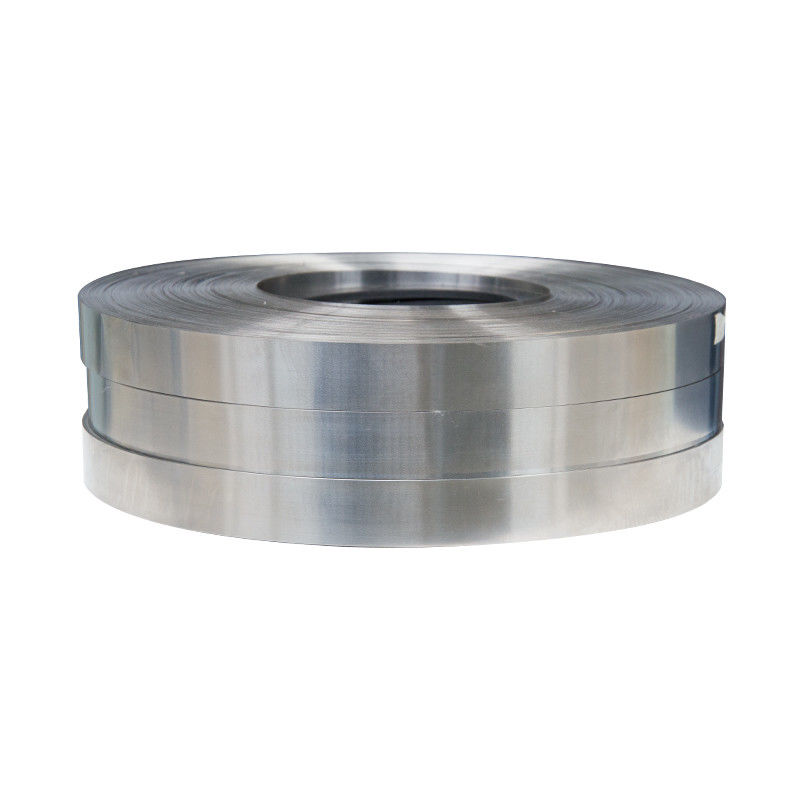

0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor

0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor

    • 0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor
    • 0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor
    • 0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor
    • 0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor
  • 0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: Evanohm / Karma

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Tons per Month
    Contact Now
    Detailed Product Description
    Material: NIckel Chrome Alloy Thickness: 0.002mm Min
    Diameter: 0.02mm Width: 200mm
    Surface: Bright Standard: ASTM/GB
    High Light:

    soft magnetic alloy

    ,

    precision tubing

    0.005mm High Resistivity Evanohm / Karma nickel Chromium Nichrome Alloy Strip / Foil for Resistor​



    Advantages: deformation ability, thermal stability,mechanical character, shockproof ability in thermal state and anti-oxidization.

    Nickel-Chrome Alloy are widely used in electric furnace heating or heat-treating processes in the chemical, mechanical, metallurgical and defense industries.

    Nickel chromium

    Grade Ni80Cr20 Ni70Cr30 Ni60Cr23 Ni60Cr15 Ni35Cr20 Karma Evanohm

    Nominal composition

    %

    Ni Bal Bal 58.0-63.0 55.0-61.0 34.0-37.0 Bal Bal
    Cr 20.0-23.0 28.0-31.0 21.0-25.0 15.0-18.0 18.0-21.0 19.0-21.5 19.0-21.5
    Fe ≤1.0 ≤1.0 Bal Bal Bal 2.0-3.0 --


    Al 1.0-1.7

    Ti 0.3-0.5



    Al 2.7-3.2

    Mn0.5-1.5

    Al 2.7-3.2

    Cu2.0-3.0



    Max continuous Operating Temperature(°C) 1200 1250 1150 1150 1100 300 1400

    Resisivity

    (Ω/cmf,20°C)

    1.09 1.18 1.21 1.11 1.04 1.33 1.33

    Resisivity

    (μΩ/m,60°F)

    655 704 727 668 626 800 800

    Density

    (g/cm³)

    8.4 8.1 8.4 8.2 7.9 8.1 8.1

    Tensile Strength

    (N/mm²)

    750 875 800 750 750 780 780

    Process:

    Strip:Material preparation→melting(vacuum,medium frequency)→electroslag→lathe-forging→planing→hot rolling→annealing→polish by high pressurewater→rolling→degrease→annealing→welding→rolling→edge shearing→annealing→slitting→inspection→package



    Product features:

    1)Excellent anti-oxidation and mechanical strength at high temperature;

    2)High resistivity and low temperature coefficient of resistance;

    3)Excellent reelability and forming performance;

    4)Excellent welding performace



    Application:

    Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
    Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
    Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
    Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
    Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.


    Specification
    1).Locomotive resistance strip:
    Thickness:0.6mm-1.5mm
    Width:60mm-90mm

    2).Electric ceramic cooktop resistance strip:
    Thickness:0.04mm-1.0mm
    Width:5mm-12mm
    Thickness&Width:(0.04mm-1.0mm)×12mm(above)

    3).Low resistance ribbon:
    Thickness&Width:(0.2mm-1.5mm)*5mm

    4).Industrial furnace strip:
    Thickness:1.5mm-3.0mm
    Width:10mm-30mm

    5)Wire: Diameter:0.05mm-10.0mm


    FECRAL Usage
    FeCrAl electric heating strip Alkrothal 14 is mainly used in electric locomotive, diesel locomotive, metro vehicle and
    high speed moving car etc brake system brake resistor,electric ceramic cooktop,industrial furnace.

    FECRAL Features
    FeCrAl electric heating strip Alkrothal 14 has Stable performance;Anti-oxidation;Corrosion resistance;High
    temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.



    FeCRAL Application
    Mainly applied in the braking resistance system of electrical power locomotive, internal-combustion engine, high speed motor car, this kind of resistance alloy strip have higher and stable resistivity, good anti-oxidation, good corrosion resistance. Also it has a good shock resistant and creep resistant under high temperature. So these alloys surely can meet all the requirement in making locomotive resistance appliance


    tankiialloy is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by Stable performance, Anti-oxidation, Corrosion resistance, High temperature stability, Excellent coil-forming ability, Uniform and beautiful surface condition without spots.


    Typical applications for TANKII alloy are used in Neutral Grounding Resistor, Load Bank,Motor Starter,Battery Discharger,Harmonic Filter, electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc, brake system brake resistor, electric ceramic cooktop, industrial furnace, It is suitable for use at temperatures up to 950°C, used extensively as heating elements in industrial furnaces and so on.

    0.005mm High Resistivity Evanohm / Karma Nickel Chromium Nichrome Alloy Strip / Foil For Resistor 0
