Home ProductsPrecision Alloy

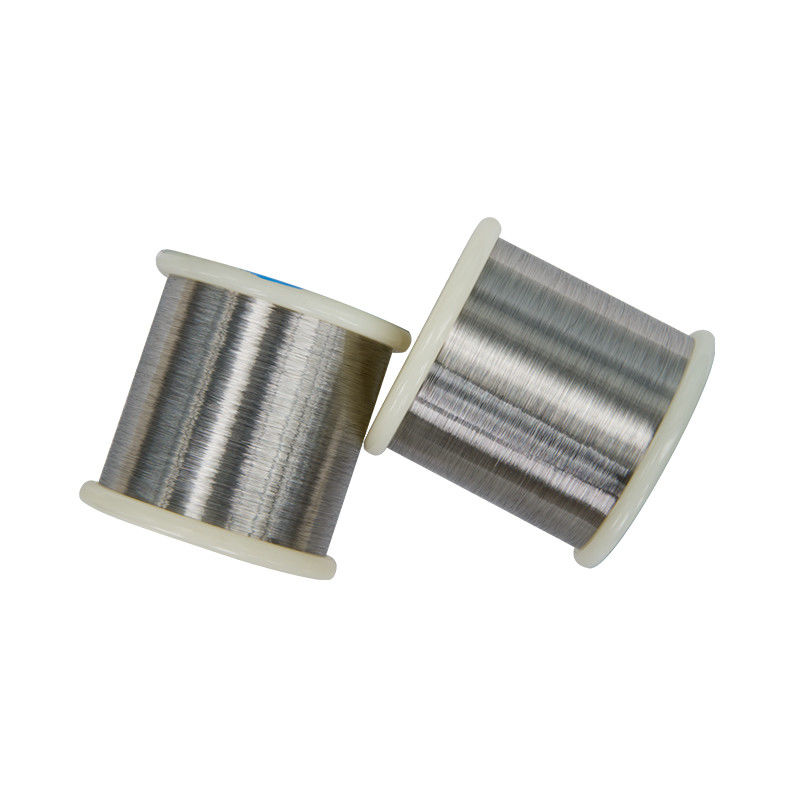

4j50 ExpansionPrecision Alloy 50h, N50, Vacovit 500, Feni50 Permalloy Soft Magnetic Alloy Strip / Wire

4j50 ExpansionPrecision Alloy 50h, N50, Vacovit 500, Feni50 Permalloy Soft Magnetic Alloy Strip / Wire

    • 4j50 ExpansionPrecision Alloy 50h, N50, Vacovit 500, Feni50 Permalloy Soft Magnetic Alloy Strip / Wire
    • 4j50 ExpansionPrecision Alloy 50h, N50, Vacovit 500, Feni50 Permalloy Soft Magnetic Alloy Strip / Wire
    • 4j50 ExpansionPrecision Alloy 50h, N50, Vacovit 500, Feni50 Permalloy Soft Magnetic Alloy Strip / Wire
    • 4j50 ExpansionPrecision Alloy 50h, N50, Vacovit 500, Feni50 Permalloy Soft Magnetic Alloy Strip / Wire
  • 4j50 ExpansionPrecision Alloy 50h, N50, Vacovit 500, Feni50 Permalloy Soft Magnetic Alloy Strip / Wire

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: NiFe50

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 Tons per Month
    Contact Now
    Detailed Product Description
    Material: Fe-Ni Alloy Dia.: 0.02mm Min
    Surface: Bright Sample: Accepted
    Shape: Pipe/wire/rod/strip/coil
    High Light:

    soft magnetic alloy

    ,

    precision tubing

    4j50 (Expansion-alloy) 50h, N50, Vacovit 500, Feni50 permalloy Soft Magnetic Alloy strip / wire



    Tk-4J50 (Expansion alloy)

    (Common Name: 50H, N50, Vacovit 500, FeNi50)
    4J50 alloy is mainly composed of iron, nickel elements. It is characterized with a fixed coefficient of expansion. Increase the thermal expansion coefficient and the Curie point with increase of nickel content.
    4J50 alloy is widely used the structure of the sealing material in the electric vacuum industry.

    Normal composition%

    Ni 49.5~50.5 Fe Bal. Co 1.0 Si ≤0.3
    Mo - Cu - Cr - Mn 0.8
    C ≤0.05 P ≤0.02 S ≤0.02 Al 0.1



    Typical Physical properties

    Density (g/cm3) 8.21
    Electrical resistivity at 20ºC(Ωmm2/m) 0.44
    Thermal conductivity, λ/ W/(m*ºC) 16.7
    Curie point Tc/ ºC 500
    Elastic Modulus, E/ Gpa 158

    Coefficient of expansion

    θ/ºC α1/10-6ºC-1 θ/ºC α1/10-6ºC-1
    20~100 9.8 20~400 9.4



    20~200 9.8 20~450 9.4
    20~300 9.5 20~500 9.7
    20~350 9.4 20~600 10.6

    Typical Mechanical properties

    Tensile Strength Elongation
    Mpa %
    490 35



    The heat treatment process
    Annealing Heated to 900 ±20ºC in a hydrogen atmosphere
    Holding time, h 1 hour
    cooling With speed not more than 5 ºC / min. cooling to below 200 ºC


    Style of supply

    Alloys Name Type Dimension
    TK-4J50 Wire D= 0.02~8mm
    TK-4J50 Strip W= 5~250mm T= 0.1mm
    Tk-4J50 Foil W= 10~100mm T= 0.01~0.1
    TK-4J50 Bar Dia= 8~100mm L= 50~1000



     Soft magnetic alloy are in weak magnetic field with high permeability and low coercive force of alloys.This kind of alloy are widely used in radio electronics, precision instruments and meters, remote control and automatic control system, the combination is mainly used for energy conversion and information processing, the two aspects of is an important material in the national economy.
