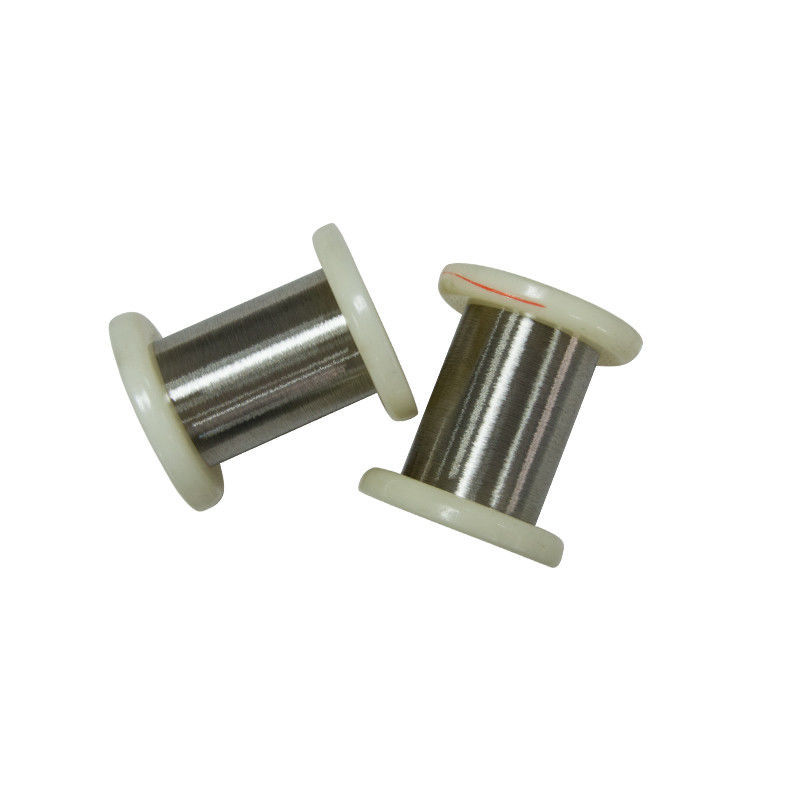

Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H

Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H

    • Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H
    • Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H
    • Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H
    • Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H
  • Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: FeNi50

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 Tons per Month
    Contact Now
    Detailed Product Description
    Material: Iron Nickel Alloy Dia.: 0.02mm
    Surface: Bright / Polished Sample: Accepted
    Shape: Pipe/wire/rod/strip/plate/coil
    High Light:

    soft magnetic alloy

    ,

    precision tubing

    Permalloy 1j50/ Ni50 / E11a Wire Precision Alloy FeNi50 50H
    Brand: 1J50

    Classification: Alloys of precision soft magnetic
    Supplement: alloy has a high permeability and low saturation induction of technical
    Application: For cores between the tube and small power transformers, chokes, relays and parts of magnetic circuits operating at elevated inductions without bias or small bias

    Chemical Composition in % 1J50


    Ni
    49-50.5%

    Fe
    48.33-50.55%

    C
    0.03%

    Si
    0.15 - 0.3%

    Mn
    0.3 - 0.6%

    S
    o 0.02%

    P
    0.02%

    Mo
    -

    Ti
    -

    Al
    -

    Cu
    0.2%



    Basic physical constants and mechanical properties of the alloy:

    Density: γ = 8,2 g / cm3;
    Electric resistivity: ρ = 0,45 ohm mm2 ? / m;
    Curie Point Temperature: Θs = 500 ° C;
    Saturation magnetostriction: λS = 25 ? 106;
    Brinell Hardness: 170/130 HB;
    Ultimate: Rm = 780/440 MPa;
    Yield strength: σ0,2 = 685/145 MPa;
    Modulus of elasticity E = 160 kN / mm2;
    Elongation: δ5 = 3/35%;
    Relative compression: φ = 15/60%.

    The magnetic properties of the alloy

    Type Class Thickness or diameter, mm The initial magnetic permeability Maximum magnetic
    permeability
    Coercive force Technical saturation induction
    mH / m G / E mH / m G / E / E (10-4 G)
    No more No more No less
    cold-rolled strips 1 0,05
    0,08

    2,5

    2000

    25

    20000

    20

    0,25
    1,50
    0,10
    0,15

    2,9

    2300

    31

    25000

    16

    0,20
    0,20
    0,25
    0,27

    3,3

    2600

    38

    30000

    12

    0,15
    0,35
    0,50

    3,8

    3000

    44

    35000

    10

    0,12
    0,80
    1,0

    3,8

    3000

    38

    30000

    12

    0,15
    1,5
    2,0
    2,5

    3,5

    2800

    31

    25000

    13

    0,16
    hot rolled sheets 3-22 3,1 2500 25 20000 24 0,30
    Bars 8-100 3,1 2500 25 20000 24 0,30
    cold-rolled strips 2 0,10
    0,15

    3,8

    3000

    38

    30000

    14

    0,18
    0,20
    0,25

    4,4

    3500

    44

    35000

    12

    0,15
    0,35
    0,50

    5,0

    4000

    56

    45000

    10

    0,12
    0,80
    1,0

    5,0

    4000

    50

    40000

    10

    0,12
    1,5
    2,0

    3,8

    3000

    44

    35000

    12

    0,15
    cold-rolled strips 3 0,05
    0,10
    0,20

    12,5
    *

    10000
    *

    75

    60000

    4,0

    0,05
    1,52

    2.Usage
    It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

    3.Features
    1).Low coercivity and magnetic hysteresis loss;
    2).High resistivity and loweddy-currentloss;
    3).High initialmagnetic permeability and maximum magnetic permeability;
    4).High saturation magnetic flux density;

    4. Packing detail
    1). Coil (plastic spool) + compressed ply-wooden case + pallet
    2). Coil (plastic spool) + carton + pallet
    5. Products and services

    Dia. 0.05mm Precision Alloy Iron Nickel Alloy Wire Permalloy 1j50/ Ni50 / E11a / FeNi50 / 50H 0
