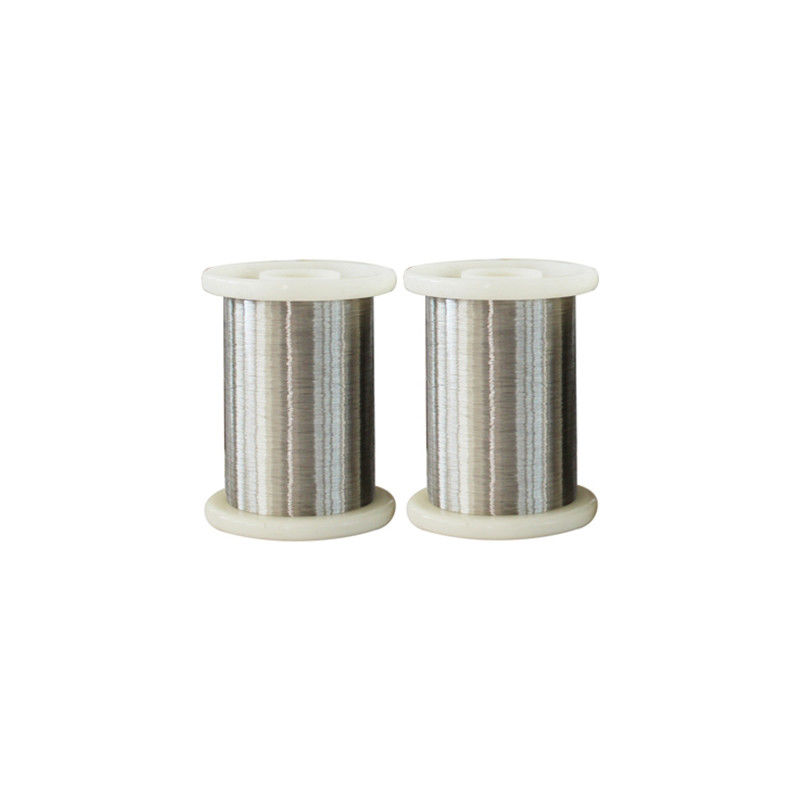

0.05mm CuNi19 Copper Nickel Heating Resistance Element wire / Cable for Resistor Temperature Control

0.05mm CuNi19 Copper Nickel Heating Resistance Element wire / Cable for Resistor Temperature Control

    • 0.05mm CuNi19  Copper Nickel Heating Resistance Element wire / Cable  for Resistor Temperature Control
    • 0.05mm CuNi19  Copper Nickel Heating Resistance Element wire / Cable  for Resistor Temperature Control
    • 0.05mm CuNi19  Copper Nickel Heating Resistance Element wire / Cable  for Resistor Temperature Control
    • 0.05mm CuNi19  Copper Nickel Heating Resistance Element wire / Cable  for Resistor Temperature Control
  • 0.05mm CuNi19  Copper Nickel Heating Resistance Element wire / Cable  for Resistor Temperature Control

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: CUNI19

    Payment & Shipping Terms:

    Minimum Order Quantity: 10KG
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Tons per Month
    Contact Now
    Detailed Product Description
    Material: Cu-Ni Wire / Strip Diameter: 0.02-5.0mm
    Thickness: 0.01mm-2.00mm Width: 300 Mm Max.
    Shape: Wire/Rod/Strip/Sheet Standard: ASTM/GB/

    CuNi19 Resistance Wire Copper Nickel Heating Element /Cable Swg Wire for Resistor Alloy Wire Temperature Control



    Tankii  Alloy Material Co.,Ltd is one of the best copper nickel alloy cuni19 manufacturers and suppliers in China, welcome to buy discount and low price nc25B from us, and also welcome to check the price and quotation with our factory.

    CuNi19

    (Common Name:CuNi19,NC25)

    CuNi19 is a copper-nickel alloy (Cu81Ni19 alloy) with low resistivity for use at temperatures up to 300°C.

    CuNi19 is kind of low resistance heating alloy.It is one of the key materials of the low-voltage electrical products. It is widely used in low-voltage circuit breaker, electric blankets.thermal overload relay, and other low-voltage electrical product.

    CuNi19 is typically used for low-temperature applications such as heating cables.

    Normal composition%

    Nickel 19 Manganese 0.5
    Copper Bal.



    Typical Mechanical properties(1.0mm)

    Yield strength Tensile Strength Elongation
    Mpa Mpa %
    155 340 25



    Typical Physical properties

    Density (g/cm3) 8.9
    Electrical resistivity at 20ºC (ohm*mm2/m) 0.25
    Temperature factor of resistivity(20ºC~600ºC)X10-5/ºC <25
    Conductivity coefficient at 20ºC (WmK) 38
    EMF vs Cu(μV/ºC )(0~100ºC ) -32





    Coefficient of thermal expansion
    Temperature Thermal Expansion x10-6/K
    20 ºC- 400ºC 17.5



    Specific heat capacity
    Temperature 20ºC
    J/gK 0.380



    Melting point (ºC) 1135
    Max continuous operating temperature in air (ºC) 300
    Magnetic properties non-magnetic

    Corrosion resistance performance

    Alloys Working In atmosphere at 20ºC Working at max temperature 200ºC

    Air and oxygen contain

    gases

    gases with Nitrogen

    gases with sulfur

    oxidability

    gases with sulfur

    reductibility

    carburization
    CuNi19 good general general general bad good





    Product Name Copper Nickel Alloy CuNi Wire
    Product Description Copper Nickel Alloy is mainly made of copper and nickel. The copper and nickel can be melted together no matter what percentage. Normally the resistivity of CuNi alloy will be higher if the Nickel content is larger than Copper content. From CuNi6 to CuNi44, the resistivity is from 0.1μΩm to 0.49μΩm. That will help the resistor manufacture choosing the most suitable alloy wire.
    Product Features By the way, the Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas.



    Style of supply

    Alloys Name Type Dimension
    CuNi19W Wire D=0.06mm~8mm
    CuNi19R Ribbon W=0.4~40 T=0.05~2.9mm
    CuNi19S Strip W=8~200mm T=0.1~3.0
    CuNi19F Foil W=6~120mm T=0.005~0.1
    CuNi19B Bar Dia=8~100mm L=50~1000



    0.05mm CuNi19  Copper Nickel Heating Resistance Element wire / Cable  for Resistor Temperature Control
