FeNi Alloy 1j85 1j87/1j92/1j93/1j94/1j95 / 1j80 High Permeability Soft Magnetic Alloy Permalloy 80 Wire

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: Ni80mo5 / Mu 80 / 1J85

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per Month

Get Best Price
Contact Now
Specifications
Highlight:

soft magnetic alloy

,

precision tubing

Material:
Permalloy
Name:
1J85 / Mu 80
Thickness:
0.03mm Min
Diameter:
0.02mm Min
Shape:
Pipe/wire/rod/strip/plate
Standard:
ASTM/GB
Material:
Permalloy
Name:
1J85 / Mu 80
Thickness:
0.03mm Min
Diameter:
0.02mm Min
Shape:
Pipe/wire/rod/strip/plate
Standard:
ASTM/GB
Description
FeNi Alloy 1j85 1j87/1j92/1j93/1j94/1j95 / 1j80 High Permeability Soft Magnetic Alloy Permalloy 80 Wire

FeNi Alloy 1j85 1j87/1j92/1j93/1j94/1j95 / 1j80 High Permeability Soft Magnetic Alloy Permalloy 80 Wire

General Description



Soft magnetic alloy outer magnetic field under the action of easy magnetization, basic disappear after removal of magnetic field of magnetic induction intensity and magnetic alloys.
The hysteresis loop area is small and narrow, coercive force generally below 800 a/m, high resistivity, eddy current loss is small, high permeability, high saturation magnetic induction.Are generally processed into sheets and strip.Melt was prepared.Mainly used for electrical appliances, telecommunications industry in various core components (such as transformer core, relay iron core, choke coil, etc.).Commonly used soft magnetic alloy has a low carbon electrical steel, eminem iron, silicon steel sheet, soft magnetic alloy, iron, cobalt soft magnetic alloy, nickel iron iron silicon soft magnetic alloy, etc.

The magnetic properties of soft magnetic alloy mainly is: (1) coercive force (Hc) and low hysteresis losses (Wh);(2) resistivity (rho) is higher, low eddy current loss (We);(3) initial permeability (mu 0) and the maximum high
The main kinds of
Can be divided into low carbon electrical steel and eminem iron, silicon steel sheet, nickel iron soft magnetic alloy, iron, cobalt soft magnetic alloy, iron, silicon aluminum soft magnetic alloy, etc., in terms of electric power industry, mainly used in high magnetic field with high magnetic induction and low core loss of the alloy.In the electronic industry, mainly used in low or medium under magnetic field with high permeability and low coercivity of the alloy.Under high frequency must adopt the thin strip or higher resistivity of the alloy.Commonly used sheet or strip.


Mu 85 is a soft magnetic nickel-iron alloy with about 80 % nickel, 4.8 - 5.2 % molybdenum, a saturation induction of approx. 0.7 T, the highest technically obtainable permeability, and a very low coercive force.
Typical applications are toroidal tape-wound cores, laminations, shieldings, electromagnetic relays.

Chemical Composition

Grade C% P% S% Mn% Si% Ni% Mo% Cu% Fe%
Mu 85/1J85 Max 0.03 Max 0.02 Max 0.02 0.30-0.60 0.15-0.30 79.0-81.0 4.80-5.20 Max 0.20 Bal.


Physical Properties
Density: 8.7 g/cm3
Melting Point: 1400 °C
Curie Temp: 400 °C

Magnetic Properties
Saturation Induction: 0.70
Maximum Permeability: 110,000-260,000
Coercive Force - A/m: 0.7-2.4
Permeability μ 0.08>=: 30,000-55,000

Mechanical Properties
Soft Annealed
Tensile: Min 570 MPa
Yield: Min 160 MPa
Elongation: Min 45%

Forms
Wire/Rod, Strip/Sheet, Tube are available


Wear resistant alloy high permeability
Wear resistant high permeability alloys not only has high initial permeability, low coercive force, high resistance, and high hardness, magnetism is not sensitive to stress, alloy has good wear resistance.Generally applicable to the production of tape recorder, video, disk, digital tape machine and some movie projector head core material, usually referred to as the head of alloy.In addition can also be used in micro motors, transformers, sensors, magnetic amplifier and the core of high frequency inductive components.

2.Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

3.Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

4. Packing detail

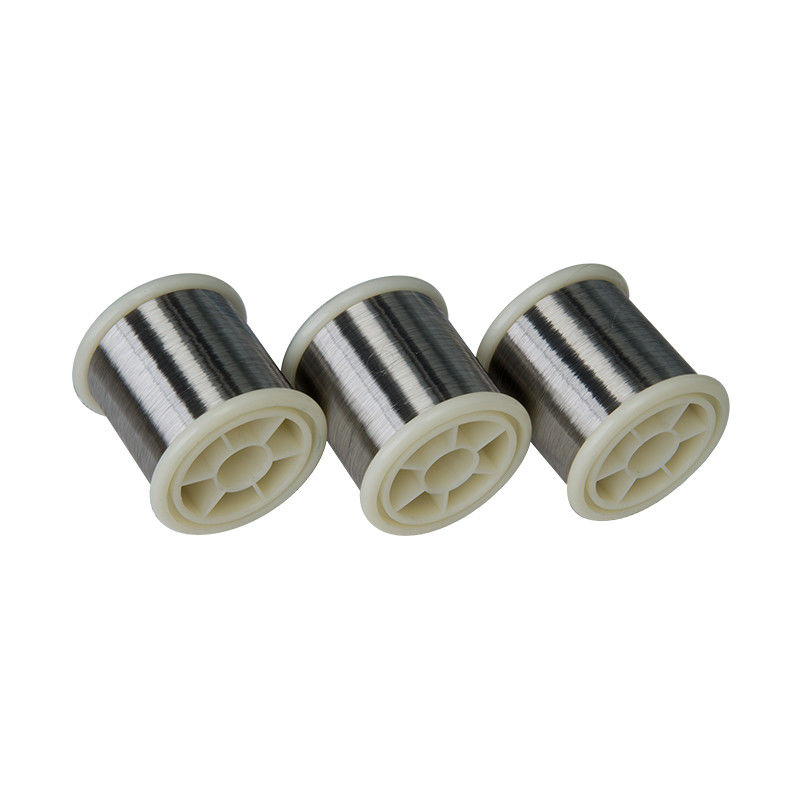

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services
