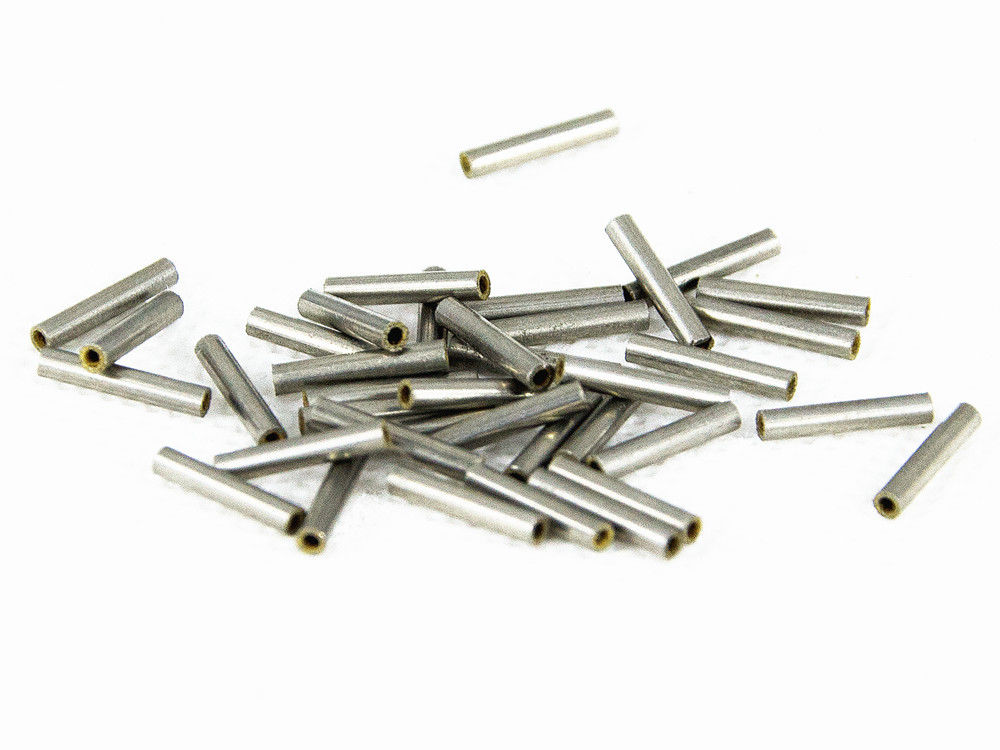

Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86 Alloy Pipe

Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86 Alloy Pipe

    • Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86  Alloy Pipe
    • Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86  Alloy Pipe
    • Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86  Alloy Pipe
    • Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86  Alloy Pipe
  • Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86  Alloy Pipe

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: NI80Mo5 pipe

    Payment & Shipping Terms:

    Minimum Order Quantity: 100KG
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Tons per Month
    Contact Now
    Detailed Product Description
    Material: Ni80Mo5 Soft Magnetic Surface: Bright / Polished
    OD: 1.00mm Min W.T.: 0.02mm Min
    Shape: Pipe/wire/rod/strip/plate Name: Soft Magnetic Alloy Pipe 1J85

    Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86 Alloy Pipe
    Soft magnetic alloy are in weak magnetic field with high permeability and low coercive force of alloys.This kind of alloy are widely used in radio electronics, precision instruments and meters, remote control and automatic control system, the combination is mainly used for energy conversion and information processing, the two aspects of is an important material in the national economy.
    Introduction to the

    Chemical composition

    composition C P S Mn Si
    Content(%) 0.03 0.02 0.02 0.3~0.6 0.15~0.3



    composition Ni Cr Mo Cu Fe
    Content(%) 79.0~81.0 - 4.8~5.2 ≤0.2 Bal


    Heat treatment system

    shop sign Annealing medium heating temperature Keep the temperature time/h Cooling rate

    1j85
    Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa Along with the furnace heating up 1100~1150ºC
    3~6
    In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge


    Soft magnetic alloy outer magnetic field under the action of easy magnetization, basic disappear after removal of magnetic field of magnetic induction intensity and magnetic alloys.

    2.Usage
    It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

    3.Features
    1).Low coercivity and magnetic hysteresis loss;
    2).High resistivity and loweddy-currentloss;
    3).High initialmagnetic permeability and maximum magnetic permeability;
    4).High saturation magnetic flux density;

    4. Packing detail

    1). compressed ply-wooden case

    5. Products and services

    1). Pass: ISO9001 certification, and SO14001cetification;
    2). Fine after-sale services;
    3). Small order accepted;
    4). Fast delivery;

    Precision Soft Magnetic Nickel Iron Alloy Ni80mo5 Permalloy Tube 1j85/1J79 / 1J86  Alloy Pipe
