Ni80mo5 Precision Alloy Permalloy Tube , 1j85/1J79 / 1J86 Soft Magnetic Alloy Pipe

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: NI80Mo5

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per Month

Get Best Price
Contact Now
Specifications
Highlight:

soft magnetic alloy

,

precision tubing

Material:
Ni80Mo5
Surface:
Bright / Polished / Oxidation / Golden
OD:
1.00mm Min
W.T.:
0.02mm
Shape:
Pipe/wire/rod/strip/plate/coil
Name:
Soft Magnetic Alloy Pipe
Material:
Ni80Mo5
Surface:
Bright / Polished / Oxidation / Golden
OD:
1.00mm Min
W.T.:
0.02mm
Shape:
Pipe/wire/rod/strip/plate/coil
Name:
Soft Magnetic Alloy Pipe
Description

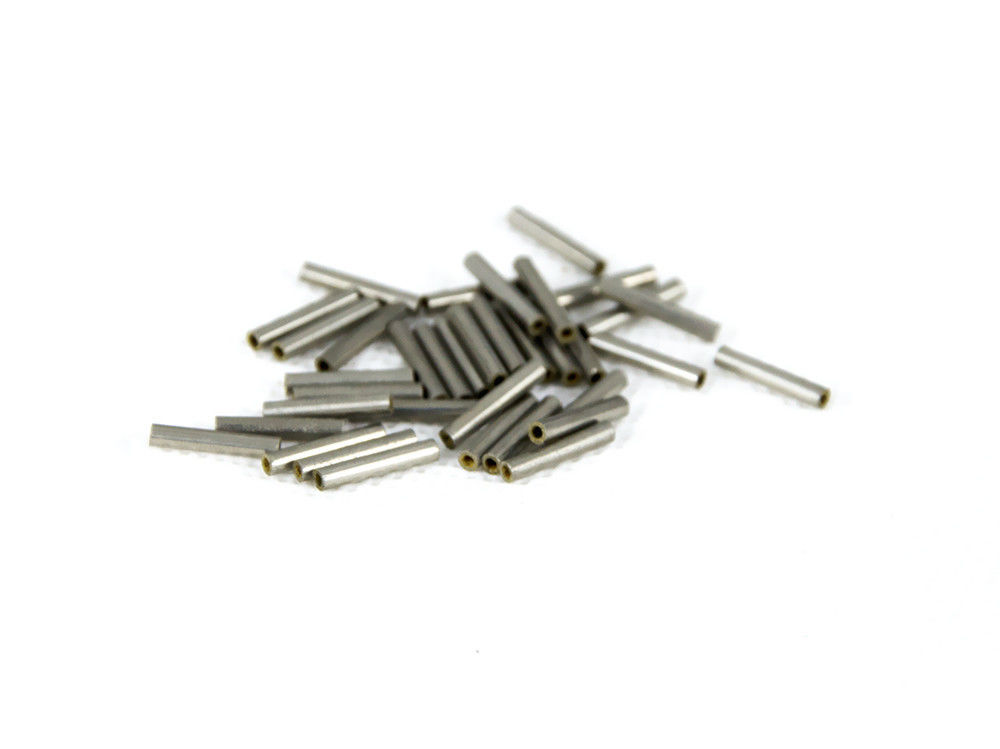

Ni80mo5 Precision Alloy Permalloy Tube , 1j85/1J79 / 1J86 Soft Magnetic Alloy Pipe

Ni80mo5  Permalloy Tube 1j85 Soft Magnetic Alloy Pipe

Introduction

Soft magnetic alloys produced by TANKII are nickel-iron alloys that contain from about 35 to 81% of nickel. These alloys are using in applications requiring the following

Characteristics: high permeability, high saturation magneto striction, low hysteresis-energy loss, low eddy-current loss in alternating flux, low curie temperature, vonstant permeability with changing temperature.

TANKII has been manufacturing soft magnetic alloys for many years. They are used for instrument transformers, radar pulse transformers, transducers, shielding, tape recorder head laminations and so on.

Main grades

Chemical Grade Saturation induction
Bs/T
Rs
Br/Bm
Curie Temp
Tc/℃
Coercive force
Hc/A·m-1
Initial Permeability
mH·m-1
Max Permeability
μm/mH·m-1
Resistivity
μΩ·cm
46NiFe   ≥1.50 0.75 400 ≤12 2.5-4.5 22.5-45 45
50NiFe   ≥1.50 0.72 500 ≤8.8 2.8-5.9 31-65 45
65Ni2.5MoFe   ≥1.20 ≥0.9 530 ≤6.4 200-438 45
76Ni5Cu2CrFe   ≥0.75 400 ≤4.8 18.8-31.3 75-225 55
77Ni4Mo5CuFe   ≥0.60 350 ≤2.0 37.5-75.0 175-312 55
79Ni4MoFe 79 Permalloy ≥0.75 450 ≤4.8 15-32 87.5-275 55
80Ni3CrFe   ≥0.65 330 ≤4.8 17.5-44 75-200 62
80Ni5MoFe   ≥0.70 400 ≤4.8 20-75 87.5-325 56
81Ni6MoFe   ≥0.60 ≤4.0 12.5-62.5 100-250 60

Ni80mo5 Precision Alloy Permalloy Tube , 1j85/1J79 / 1J86 Soft Magnetic Alloy Pipe 0
