Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nickel pipe
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Ni 99.6% |
OD: |
1.00mm Min |
W.T.: |
0.02mm Min |
Surface: |
Bright / Polished |
MOQ: |
2000meters |
Material: |
Ni 99.6% |
OD: |
1.00mm Min |
W.T.: |
0.02mm Min |
Surface: |
Bright / Polished |
MOQ: |
2000meters |

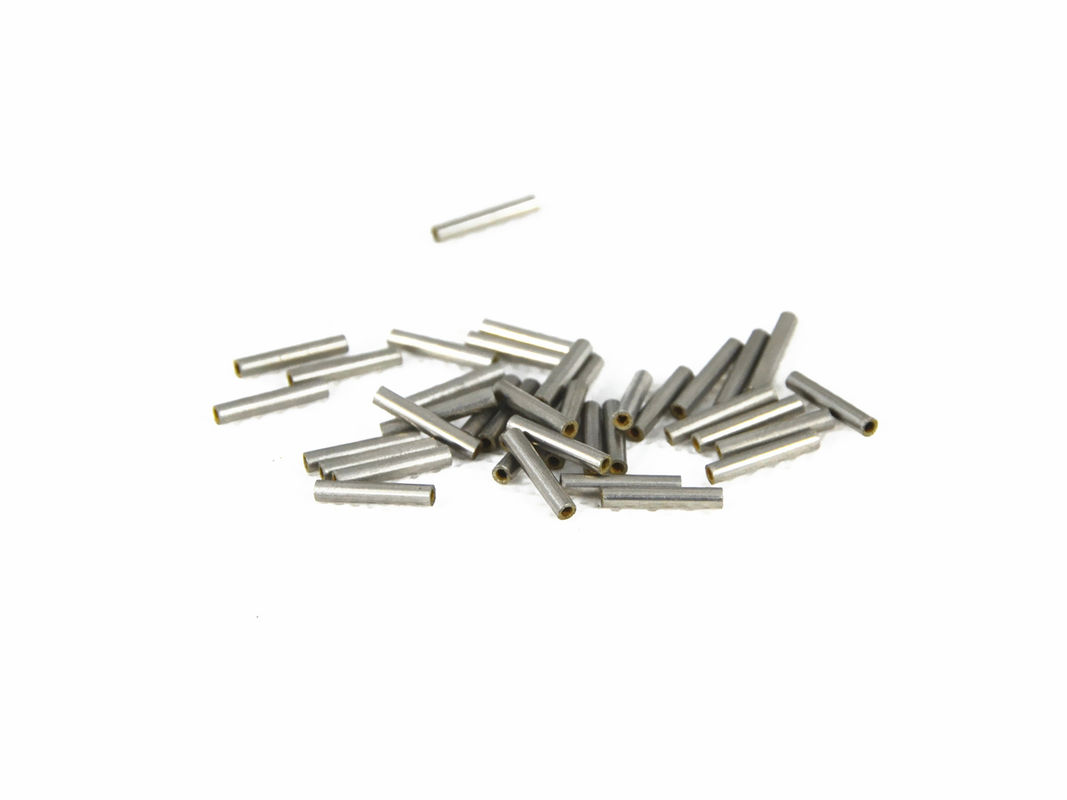

Pure Nickel Uns No2201 / No 2200 Micro capillary Tube / Pipe for Heat Exchanger
Pure Nickel 201:
Shanghai Tankii Alloy material Co., Ltd specialized in production of Resistance Heating alloy, nickel chromium alloy, iron chromium aluminum alloy, nickel aluminum alloy, manganin, copper nickel alloy, thermocouple wire, pure nickel and other precision alloy material in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
Commercially wrought Nickel 201 ( UNS N02201) , a grade of pure nickel contains 99.0% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
1). Chemical composition(%):
Grade |
C | Si | Mn | P | S | Ni+Co | Cu | Fe |
| Nickel 201 | <0.02 | <0.35 | <0.35 | <0.01 | >99.0 | <0.25 | <0.40 |
2). Physical properties:
Grade |
Density (g/cm3) | Melting Range (ºC) |
Curie point (ºC) |
Volume resistivity (μΩ.cm) | Thermal conductivity (W/m. ºC) | |
| Nickel 201 | 8.9 | 1435-1446 | 360 | 8.5(20ºC) | 79.3(20ºC) |
1. Producing process:
Nickel wire are made by advanced vacuum melting process. And by forging, rolling, annealing and drawing.
2.Features:
(1)Low Density and High Specification Strength
(2)Excellent Corrosion Resistance
(3)Good resistance to effect of heat
(4)Excellent Bearing to cryogenic property
(5)Nonmagnetic and Non-toxic
3. Usage:
1). Sulfuric acid factory usage for heating pipe, container, basket,chain and so on.
2). Cooling heat exchanger, marine product pipeline system and gas pipeline of acidic environment.
3). Heat exchanger, steam machine, washing, impregnation pipe, etc. for phosphoric acid produce
4). Food processing equipment.
5). Salt production .
6). Chemical process
7).Oil refining in the air heat exchanger.
8).Caustic handling equipment
9).Reactors and vessels in which fluorine is generated and reacted with hydrocarbons
10). Application of high pressure oxygen flam-retardant alloy
4. Sizes:
Pipe/tube : OD 1-120mm.
5. Advantage:
High quality, short delivery time, small MOQ.
(1).Competitive price
(2).Comparative high quality on the base of the same price
(3).Timely delivery as your requirements
(4).Professional service to cut much purchasing costs
6. Package
(1) Spool, Carton, Wooden Case, for diameter less than 1mm.
(2) Coil, Waterproof Paper, Wooden Case/Pallet, for diameter more than 1mm
