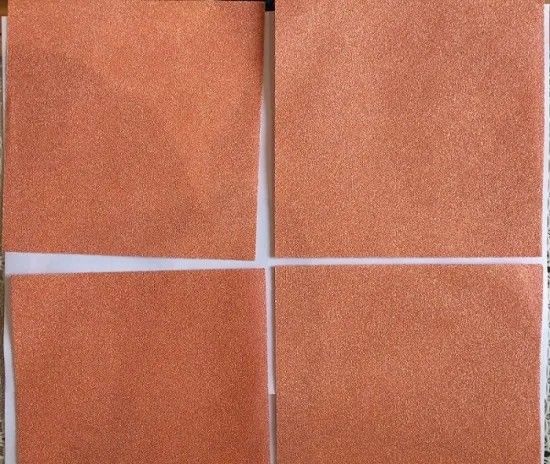

Porous Metal Foam Cu (Open Cell Copper Foam 500mm*500mm) Purity 99.99%

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: copper foam

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000000 Pcs per Month

Get Best Price
Contact Now
Specifications
Highlight:

thin copper sheet

,

pure copper foil

Material:
Copper Foam
Purity:
99.99%
Size:
500x500mm
Surface:
Bright / Polished
Name:
Cu Foam / Foam Cu
Material:
Copper Foam
Purity:
99.99%
Size:
500x500mm
Surface:
Bright / Polished
Name:
Cu Foam / Foam Cu
Description
Porous Metal Foam Cu (Open Cell Copper Foam 500mm*500mm) Purity 99.99%

Porous Metal Foam Cu (open cell Copper foam 500mm*500mm) Purity 99.99%



Copper foam is a kind of new material, it can be used in a lot of applications. It can be used Such as Electrode materials,catalyzer,Thermal conductive materials, Filtering material, Fluid pressure buffer material ect. Our factory has a long history in producing this kind of material. Usually we do it according to customer's specific request. The size can be different, such as 500mm*500mm*10mm; 500mm*500mm*15mm;1000mm*500mm*10mm etc the core size usually is 5mm, the length, width and thickness can be made according your specific needs. Our factory has a long history in producing this material, so the quality can be guaranteed, also the price is very competitive. If you have any question about the material pls feel free to contact with us.

A pore characteristics and bulk density
Aperture: 0.1mm-10mm (5-120ppi)
Porosity: 50% -98 %
Through porosity: ≥ 98%
Bulk density: 0.1-0.8g/cm3
Second, the main features:
1 ) copper foam has excellent thermal conductivity, thermal heat can be widely used in electrical / electrical and electronic components
2 ) copper foam because of its excellent electrical conductivity, and its application in the electrode material nickel-zinc batteries and electric double layer capacitor is also the industry 's attention is being
3 ) Due to the structure and properties of copper foam harmless to human basic characteristics of copper foam is an excellent medicine and water purification filter material filter material
Third, the application areas:
( A ) an electrode material. Excellent conductive properties of the foam can be widely used in copper -nickel-zinc batteries, electric double layer capacitor electrode skeleton new battery materials, the current bubble has received a number of copper -nickel-zinc battery manufacturer to try and put volume use, while the bubble copper is expected as the electric double layer capacitor electrode current collector obtained promote the application; Addition, foam copper electrolytic recovery of copper waste used as electrode material, but also has a very promising future.
( 2 ) catalyst. In many organic reactions, people try to replace the direct use with copper foam punching copper large specific surface area, as a catalyst for chemical reactions; Copper foam as a photocatalytic air purification carrier, also gained more successful applications.
( 3 ) thermal conductivity material. Copper foam has excellent thermal conductivity, making it a high performance flame retardant materials to be applied in many foreign advanced fire equipment, especially as the flame isolated equipment with excellent results; Addition, people use copper foam excellent thermal performance and the apparent permeability, made into electrical, electronics cooling material.
( 4 ) silencer and shielding materials. Copper surface acoustic foam diffusely reflected, and through the expansion silencer, silencers and other porous principle, to achieve silencing effect; Shielding properties of copper and silver close, is an excellent electromagnetic shielding material.
( 5 ) filter material. Excellent structural characteristics and harmless to human basic copper metal foam products as medical filter material, also received a successful application; While copper foam applications in water purification device also has a good future.
( 6 ) a fluid pressure cushioning material. Copper dispersion and foam cushioning effect of the fluid to pressure protection device as a variety of pressure gauges, with excellent results.
SIZE 500*500mm;1000*1000mm etc
PORE SIZE 10-30ppi etc
THICKNESS 5-20MM etc. can be different
