Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument

Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument

    • Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument
    • Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument
    • Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument
    • Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument
  • Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: Manganin Wires

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiable
    Packaging Details: wooden case / Carton
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Tons per Month
    Contact Now
    Detailed Product Description
    Resistivity: 0.43+/-5% Ωmm2/m Density: 8.40g/cm3
    TCR: 0-40 α×10-6/ºC Sample: Accepted
    Surface: Bright / Polished Diameter: 0.02-10.0mm
    Name: CuMn12Ni

    Cu-Ni-Mn Resistance Wire- Manganin 6j8 / 6j12 / 6j13 for Precision Instrument

    Product Description

    Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.

    Chemical Content, %

    Ni Mn Fe Si Cu Other ROHS Directive
    Cd Pb Hg Cr
    2~5 11~13 <0.5 micro Bal - ND ND ND ND

    Mechanical Properties

    Max Continuous Service Temp 0-100ºC
    Resisivity at 20ºC 0.43±0.05ohm mm2/m
    Density 8.4 g/cm3
    Thermal Conductivity 40 KJ/m·h·ºC
    Temp Coefficient of Resistance at 20 ºC 0~40α×10-6/ºC
    Melting Point 1450ºC
    Tensile Strength(Hard) 585 Mpa(min)
    Tensile Strength,N/mm2 Annealed,Soft 390-535
    Elongation 6~15%
    EMF vs Cu, μV/ºC (0~100ºC) 2(max)
    Micrographic Structure austenite
    Magnetic Property non
    Hardness 200-260HB
    Micrographic Structure Ferrite
    Magnetic Property Magnetic



    Manganin 47(Precision Resistance Alloy)


    (Common Name:Normal Manganin,Normal Manganin 47,CuMn12Ni2 )

    Normal Manganin 47 is a copper-manganese-nickel alloy (CuMnNi alloy) for use at room temperature. The alloy is characterized by very low thermal electromotive force (emf) compared to copper.
    Normal Manganin 47 is typically used for the manufacturing of resistance standards, precision wire wound resistors, potentiometers, shunts and other electrical and electronic components.
    Normal Manganin 47 widely used for precision resistors with the highest requirements, the resistors should be carefully stabilised and the application temperature should not exceed +60 °C. Exceeding the maximum working temperature in air may result in a resistance drift generated by oxidizing. Thus, the long-term stability can be affected negatively. As a result, the resistivity as well as the temperature coefficient of the electric resistance may slightly change.
    It is also used as low cost replacement material for silver solder for hard metal mounting.The alloy's low emf vs. copper makes it ideal for use in electrical circuits, especially D.C., where a spurious thermal emf could cause malfunctioning of electronic equipment. Due to the low operating temperature, the temperature coefficient of resistance is controlled to be low over a range of 15 to 35°C .Normal composition%

    Nickel 2~3 Manganese 11~13
    Copper Bal.

    Typical Mechanical properties(1.0mm)

    Yield strength Tensile Strength Elongation
    Mpa Mpa %
    180 390 15

     Packing detail

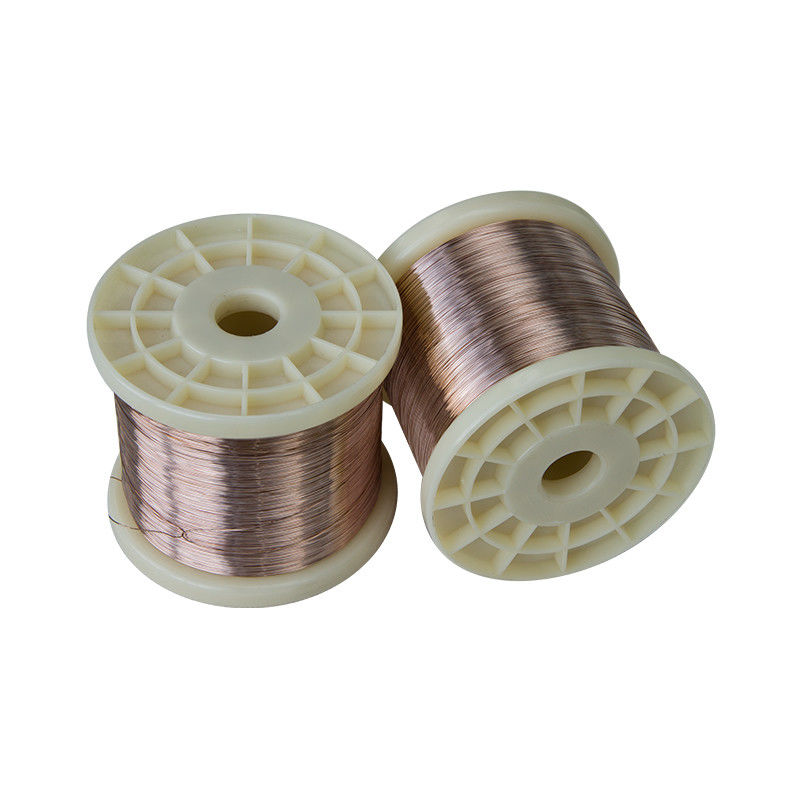

    1). Coil (plastic spool) + compressed ply-wooden case + pallet
    2). Coil (plastic spool) + carton + pallet

    Products and services
    1). Pass: ISO9001 certification, and SO14001cetification;
    2). Fine after-sale services;
    3). Small order accepted;
    4). Fast delivery;

     Cu-Ni-Mn Electric Resistance Wir Manganin Copper 6j8 / 6j12 / 6J13 For Precision Instrument
