Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS

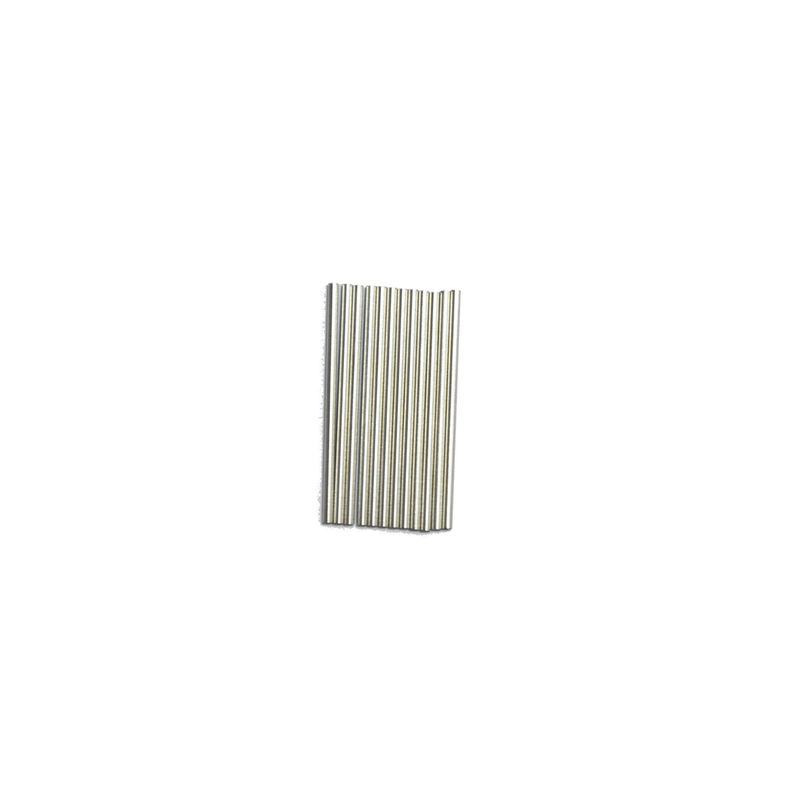

Model Number: Inconel 601 pipes / tubes
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Alloy 601 |
Size: |
2.0x0.08mm |
Surface: |
Bright |
MOQ: |
100.00KGS |
Length: |
Customer Requirements |
Shape: |
Pipe/wire/rod/strip/plate |
Wall Thickness: |
0.05mm Min |
Material: |
Alloy 601 |
Size: |
2.0x0.08mm |
Surface: |
Bright |
MOQ: |
100.00KGS |
Length: |
Customer Requirements |
Shape: |
Pipe/wire/rod/strip/plate |
Wall Thickness: |
0.05mm Min |
Product Overview of Inconel 601:
TANKII Brand Inconel 601 alloy have excellent oxidation resistance at high temperature, good carbonization resistance, good resistance to oxidation sulfur atmosphere, and has good mechanical properties at room and high temperature as good resistance to stress corrosion cracking performance due to control the carbon content and grain size,
Inconel 601 had a higher creep rupture strength, therefore it is recommended to use in the field of above 500 ºC.
Chemical Compositon of Inconel 601 Wt.%:
Inconel 601 (UNS N06601/W.Nr.2.4851) | ||||||||||||||
% | Ni | Cr | Fe | C | Mn | Si | Cu | Al | P | S | ||||
Min | 58 | 21 | ||||||||||||
Max | 63 | 25 | Bal. | 0.1 | 1.5 | 0.5 | 1 | 1.7 | 0.02 | 0.015 |
Inconel 600's Min Value of Mechanical Properties at normal temperature:
Typical Mechanical Properties | Tensile Srength Rm N/mm2 | Yield Strength Rp0.2N/mm2 | Elongation A5 % | Hardness HB |
annealed treatment | 650 | 300 | 30 | - |
solution treatment | 600 | 240 | 30 | 220 |
Characters of Inconel 601:
(1) Have excellent oxidation resistance at high temperature;
(2) Good carbonization resistance;
(3) Can be a very good resistance to oxidation sulfur atmosphere;
(4) Has good mechanical properties at room and high temperature;
(5) Good resistance to stress corrosion cracking performance due to control the carbon content and grain size, 601 has high creep rupture strength, therefore it is recommended to use in the field of above 500 ºC;
Application Field of Inconel 601:
(1) Tray, basket and fixture used in heat treatment factories;
(2) Mesh belt used in steel wire annealing and radiant tube, high-speed gas burner and furnace;
(3) Components of exhaust system;
(4) Combustion chamber of solid waste incinerator;
(5) Components of pipe supports and ash handling,
(6) Components of exhaust detoxification system;
(7) Oxygen re-heater;
