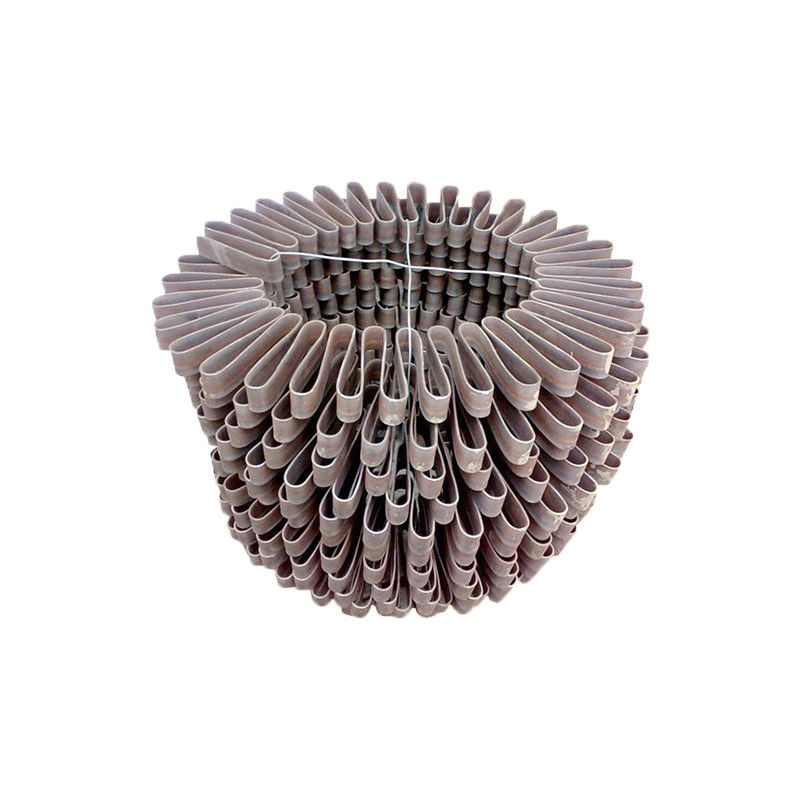

220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace

220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace

    • 220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace
    • 220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace
    • 220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace
    • 220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace
    • 220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace
  • 220V Nichrome FeCrAl Alloy Radiant Heating Element For Furnace

    Product Details:

    Place of Origin: Shanghai, China,
    Brand Name: TANKII
    Certification: ISO SGS
    Model Number: Radiant Heating Element

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiable
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 200 Tons per Month
    Contact Now
    Detailed Product Description
    Material: NICR, FeCrAl Size: Customized
    MOQ: 1 Pcs Surface: Bright, Oxidation, Golden
    Power: 500-2000W

    220V High Quality Furnace Ceramic Radiant Heating Element for Furnace



    Nichrome Wire resistance Heating Element for Electric Furnace

    Power for each element: 500W to 20 KW

    Working voltage: 5V to 220V

    Useful length: 50 to 3000mm

    diameter: Φ 0.7- Φ 8.0

    2. Characteristics:

    1) The highest working temperature up to 1200 degree.

    2) Longer working life,and better technical properties

    3) Higher surface load.

    4) Higher resistivity.

    5) Lower density.

    6) Free from oxide debris


    3. Applications
    bobbin heater is made of alumina ceramic insulation and series wound High Temperature RESISTANCE heating wire.It is widely used in heat treatment equipment, auto parts, iron and steel manufacturing, aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery, food machinery, pharmaceutical machinery, power engineering industry, and residential appliances.


    4. Chemical Composition and Main Properties of Nichrome

    Nichrome Rod/Nichrome Wire (NiCr 80/20)

    Chemical Composition: Nickel 80%, Chrome 20%

    Condition: Bright/Acid white/Oxidied Color

    Diameter: 0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod

    Nichrome Round Wire: Diameter 0.018mm~10mm

    Nichrome Ribbon: Width 5~0.5mm, thickness 0.01-2mm

    Nichrome Strip: Width 450mm~1mm, thickness 0.001m~7mm

    Diameter: 1.5mm-8mm packing in coil, 8~60mm in rod

    Other Grade: Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20

    Ni80, Ni70,Ni60, Ni40,

    Nichrome's metallurgical structure confers them a very good plasticity when cold.

    Production Standard: ASTM B603, DIN 17470, JIS C2520, GB/T1234.
    Our advantage:High quality,short delivery time,small MOQ.
    Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

    Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.

    Chemical Composition and Main Properties of Nichrome
    Properties Grade NiCr 80/20 NiCr 70/30 NiCr 60/15 NiCr 35/20 NiCr 30/20
    Main Chemical Composition Ni Balance Balance 55.0-61.0 34.0-37.0 30.0-34.0
    Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
    Fe ≤1.0 ≤1.0 Balance Balance Balance
    Max Continuous Service Temperature(oC) 1200 1250 1150 1100 1100
    Resisivity 20oC (Ωmm2/m) 1.09 1.18 1.12 1.04 1.04
    Density (g/cm3) 8.4 8.1 8.2 7.9 7.9
    Thermal Conductivity(KJ/m@h@oC) 60.3 45.2 45.2 43.8 43.8
    Coefficient of Thermal Expansion(α×10-6/oC) 18 17 17 19 19
    Melting Point( oC) 1400 1380 1390 1390 1390
    Elongation(%) >20 >20 >20 >20 >20
    Micrographic Structure austenite austenite austenite austenite austenite
    Magnetic Property nonmagnetic nonmagnetic nonmagnetic Weak magnetic Weak magnetic
