Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: ceramic heating element
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Pcs per Month
Material: |
Ceramic Heating Element |
MOQ: |
1 Pcs |
Voltage (V): |
60 /80 |
Power (KW): |
2.7 / 3.6 |
Material: |
Ceramic Heating Element |
MOQ: |
1 Pcs |
Voltage (V): |
60 /80 |
Power (KW): |
2.7 / 3.6 |

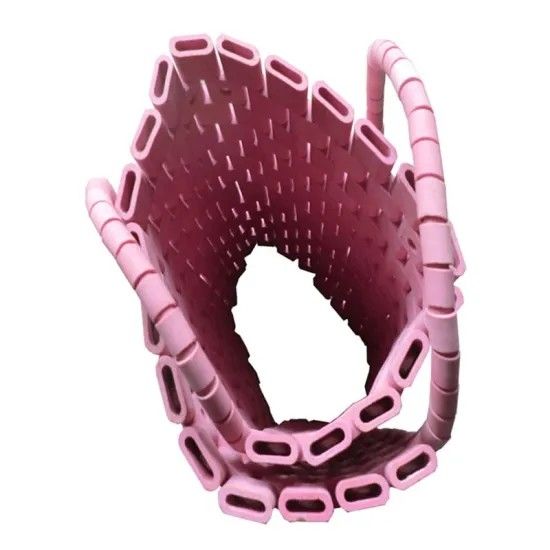

60V 80V Post weld heat treating ceramic heating element
Introduction
A 95% aluminum oxide ceramic with 3/8 inch thickness
B The ceramic beads are sintered, special dielectric to bear high temperature 1100 degree celsius
C Nickel chrome resistance wire, multi-stranded weavng. It goes through the space which is formed by interlocking ceramic beads.
D Flexible for curve surface heating, such as pipes and containers.
E Cold tail.
Nominal 9 inches length of nickel chrome wire is welded with another nickel chrome wire. Then it forms cold tail to prevent dielectrical connector from being heated.
F Two kinds as usual.
80v 3.6kw thermal power with 120 square inches, 45 amps
60v 2.7kw thermal power with 90 square inches, 45 amps
Customized size is available.
| Type Ref. | Width (mm) | Length (mm) | Voltage (V) | Power (KW) | Type Ref. | Width (mm) | Length (mm) | Voltage (V) | Power (KW) |
| CP3 | 75 | 670 | 60 | 2.7 | CP3 | 75 | 991 | 80 | 3.6 |
| CP4 | 100 | 500 | 60 | 2.7 | CP4 | 102 | 737 | 80 | 3.6 |
| CP6 | 150 | 335 | 60 | 2.7 | CP6 | 152 | 501 | 80 | 3.6 |
| CP8 | 205 | 250 | 60 | 2.7 | CP8 | 203 | 368 | 80 | 3.6 |
| CP10 | 255 | 205 | 60 | 2.7 | CP10 | 254 | 368 | 80 | 3.6 |
| CP12 | 305 | 165 | 60 | 2.7 | CP12 | 305 | 248 | 80 | 3.6 |
| CP15 | 380 | 145 | 60 | 2.7 | CP15 | 380 | 203 | 80 | 3.6 |
| CP16 | 410 | 125 | 60 | 2.7 | CP18 | 457 | 465 | 80 | 3.6 |
| CP21 | 525 | 105 | 60 | 2.7 | CP21 | 535 | 145 | 80 | 3.6 |
| CP24 | 600 | 85 | 60 | 2.7 | CP24 | 610 | 125 | 80 | 3.6 |
| CP48 | 1200 | 45 | 60 | 2.7 | CP36 | 915 | 80 | 80 | 3.6 |
When you inquiry, pls sspecify the following details
1. What wattage and voltage will be used?
2. What is the size required?
3. What is the lead wire required?
Application
* All kinds of metal components, sucs as the large tower, pressure vessels, bridges, high pressure pipeline welding preheating, welding preheating, welding stress relief.
* Piping, vessels of auxiliary heating
* Longitudinal-seam welded bends
* Area heating
