Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Model Number: Silicon Carbide Rod
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Pcs per Month
Certification: |
RoHS, ISO9001 |
Material: |
SiC Rod |
MOQ: |
1 Pcs |
Form: |
Spiral Heating Element |
Name: |
Silicon Carbide Rods |
Certification: |
RoHS, ISO9001 |
Material: |
SiC Rod |
MOQ: |
1 Pcs |
Form: |
Spiral Heating Element |
Name: |
Silicon Carbide Rods |
Silicon carbide heating element is a kind of non-metal high temperature electric heating element. It is made of selected high quality green silicon carbide as main material, which is made into blank, siliconization under high temperature and recrystallized. It is the most popular type of economical heating element capable of operating under hot and rigorous environments.
Product Advantages
1. Withstands as high as 1500°C (surface temperature).
2. Various shapes, like Rod shape, U shape, W shape, Single Spiral & Double Spiral shape, are available to meet your demand.
3. Large size range.
4. Generates high heat output per unit surface area.
5. High strength and excellent shock resistance.
6. Heat source is free of noise and air pollution.
Specification for SIC heater
| Diameter | Length of hot zone | Length of cold zone | Overall length | Range of resistance |
| 8mm | 100-300mm | 60-200mm | 240-700mm | 2.1-8.6 ohms |
| 12mm | 100-400mm | 100-350mm | 300-1100mm | 0.8-5.8 ohms |
| 14mm | 100-500mm | 150-350mm | 400-1200 | 0.7-5.6 ohms |
| 16mm | 200-600mm | 200-350mm | 600-1300 | 0.7-4.4 ohms |
| 18mm | 200-800mm | 200-400mm | 600-1600 | 0.7-5.8 ohms |
| 20mm | 200-800mm | 250-600mm | 700-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
Product Application
Used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery.
Detailed Features of SIC heater:
1. U Type SIC heater
SIC heaters are constructed to from a U-shape. Consequently Type U have the terminals at one end for a single-phase power source. This reduces the number terminations and cold ends thus enabling energy savings.
2.W Type SIC heater
SIC heater with the terminals at one end, is designed for three-phase power source applications, such as the float glass process.
3.Spiral Type SIC heater
SIC heater with a spiral-grooved heating section, are more resistant to heat and corrosion than conventional products and are able to withstand operation in rigorous conditions. Single spiral elements are provided with energy-saving, low-resistance, cold-end terminals.
4.Double Spiral Type SIC heater
SIC heater with a spiral-grooved heating section, are more resistant to heat and corrosion than conventional products and are able to withstand operation in rigorous conditions. Double spiral elements are provided with energy-saving, low-resistance, cold-end terminals.

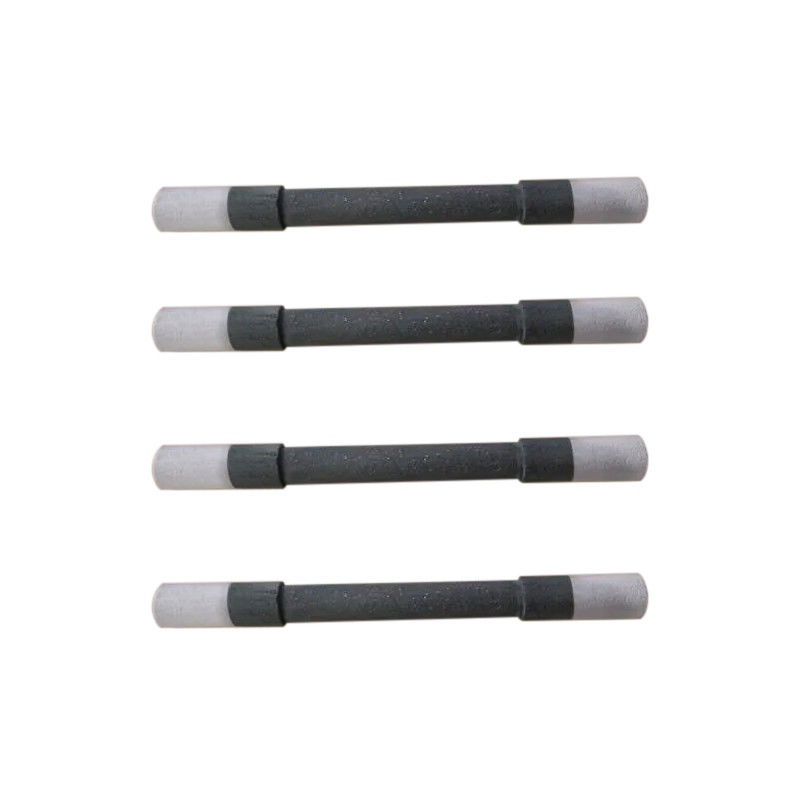

5.GC ( Dumb bell type )and GD (Rod)Type SIC heater
GC and GD type SIC heater is made from high-density,high-purity silicon carbide ,which is the most popular type of economical heating element capable of operating under hot and rigorous environments.
Notice for using and installing SIC heater
1. Be protected against damp during storing or installing to ensure the performance ;
2. Divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other;
3. Be careful when using and maintaining;
4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.
5. When heater is damaged and need to be changed, the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.
