Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Silver Plated Copper Clad Steel Stranded Wire
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case / Carton
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Silver Plated Copper Clad Steel Stranded Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver Gray |
Coating Thickness（um）: |
0.3-2.0 |
Name: |
Silver Plated Copper Clad Steel Stranded Wire |
Material: |
Silver Plated Copper Clad Steel Stranded Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver Gray |
Coating Thickness（um）: |
0.3-2.0 |
Name: |
Silver Plated Copper Clad Steel Stranded Wire |

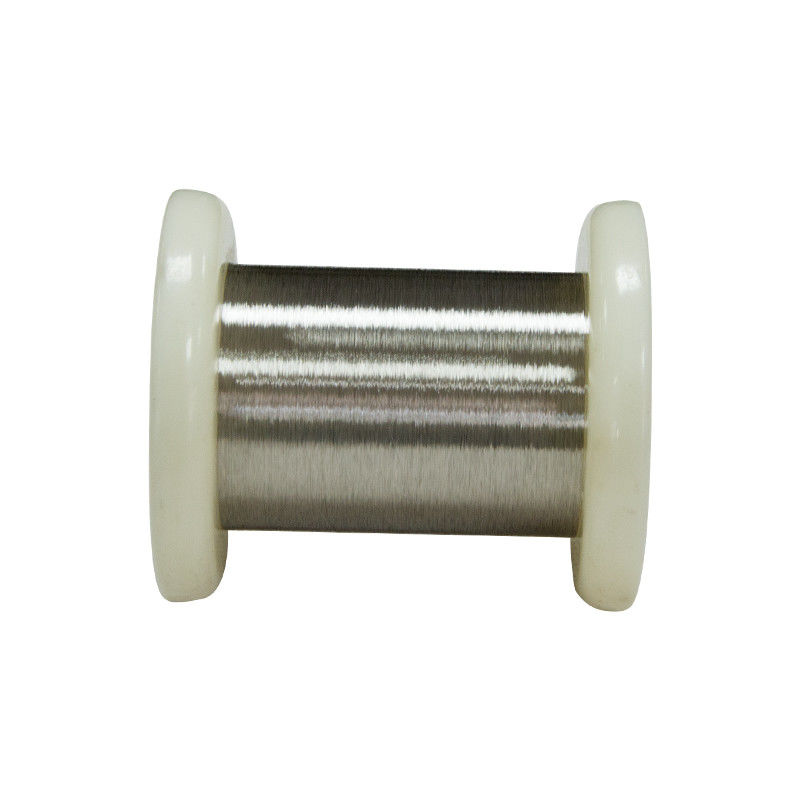

7/0.102mm 7/0.175mm Silver Plated Copper Clad Steel Stranded Wire
Silver-plated copper-clad steel wire (hard wire)
Product standard: refer to ASTM B501-04, ASTM B355-95 or according to customers’ requirements
| Item | Diameter(mm) | |
| 0.10<d≦0.23 | 0.23<d≦0.50 | |
| Tolerance(mm) | ±0.003 | ±0.004 |
| Resistivity(Ωmm2/m) | ≧40% | |
| Elongation(%) | ≦5% | |
| Tensile Strength(MPa) | Hard:≧700 | |
| Coating Thickness(um) | 0.3-2.0um | |
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | |
| Packing | 8 inch,9 inch, etc. | |
| Remark | According to customers’ requirements | |
Silver-plated copper-clad steel wire
| Item | Diameter(mm) | |
| 7/0.102 | 7/0.175 | |
| Tolerance(mm) | ±0.003 | ±0.003 |
| Resistivity(Ωmm2/m) | ≧40% | |
| Elongation(%) | ≦4% | |
| Tensile Strength(MPa) | ≧196 | |
| Coating Thickness(um) | 1.5-3.0um | |
| Strand | 7 | |
| Direction of Twist | Z(left) or S(right) | |
| Lay length(mm) | 3.0-10.0 | |
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | |
| Packing | Type 300 | |
| Remark | According to customers’ requirements | |
