Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nickel Plated Copper Wire
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case / Carton
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Nickel Plated Copper Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver |
Coating Thickness（um）: |
0.3-5.0 |
Material: |
Nickel Plated Copper Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver |
Coating Thickness（um）: |
0.3-5.0 |

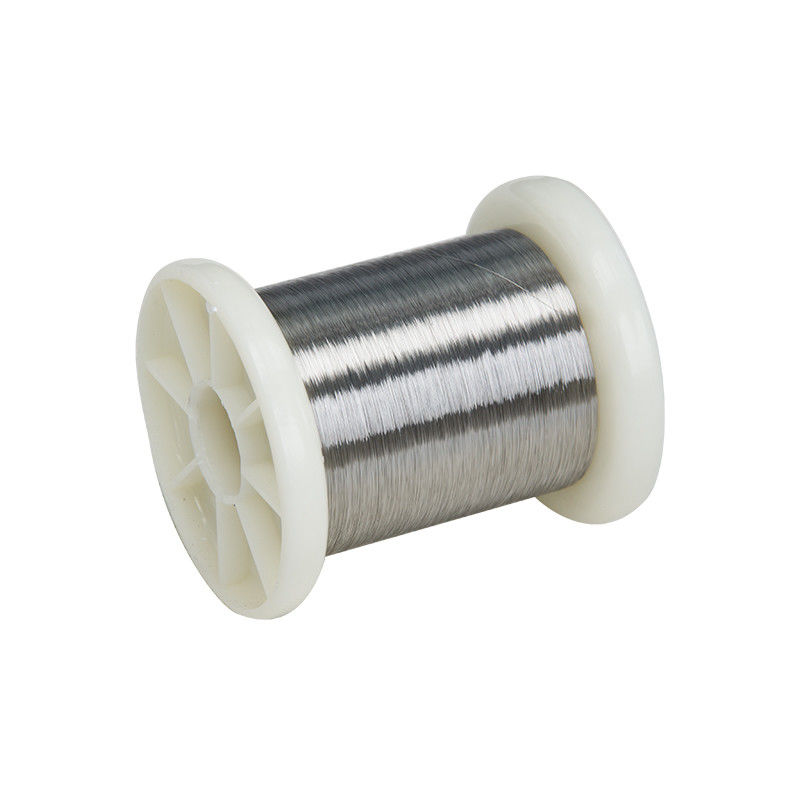

Nickel Plated Copper Lead / Wire / Stranded wire for Type-K Thermocouple Cable Shield
Nickel Plated Copper Wire
Product standard: refer to GB / T 11019-2009, ASTM B355-95 or according to customers’ requirements
| Item | Diameter(mm) | |||
| 0.05≦d≦0.10 | 0.10<d≦0.23 | 0.23<d≦0.50 | 0.50<d≦3.26 | |
| Tolerance(mm) | ±0.002 | ±0.003 | ±0.004 | ±d% |
| Resistivity(Ωmm2/m) | GB/T11019-2009 Table 4 | |||
| Elongation(%) | GB/T11019-2009 Table 3 | |||
| Tensile Strength(MPa) | Soft:≧196 Hard:≧350 | |||
| Coating Thickness(um) | 0.3-5.0um | |||
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | |||
| Packing | 8 inch,9 inch/Type 300, etc | |||
| Remark | According to customers’ requirements | |||
Nickel Plated Copper Stranded Wire
| Item | Diameter(mm) | ||
| 0.05≦d≦0.09 | 0.09<d≦0.25 | 0.25<d≦0.50 | |
| Tolerance(mm) | ±0.003 | ±0.004 | ±0.005 |
| Resistivity(Ωmm2/m) | GB/T11019-2009 Table 4 | ||
| Elongation(%) | GB/T11019-2009 Table 3 | ||
| Tensile Strength(MPa) | ≧196 | ||
| Coating Thickness(um) | 0.3-5.0um | ||
| Strand | 7-37 | ||
| Direction of Twist | Z(left) or S(right) | ||
| Lay length(mm) | 2.0-35 | ||
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | ||
| Packing | Type 300. Type 400 | ||
| Remark |
According to customers’ requirements |
||
