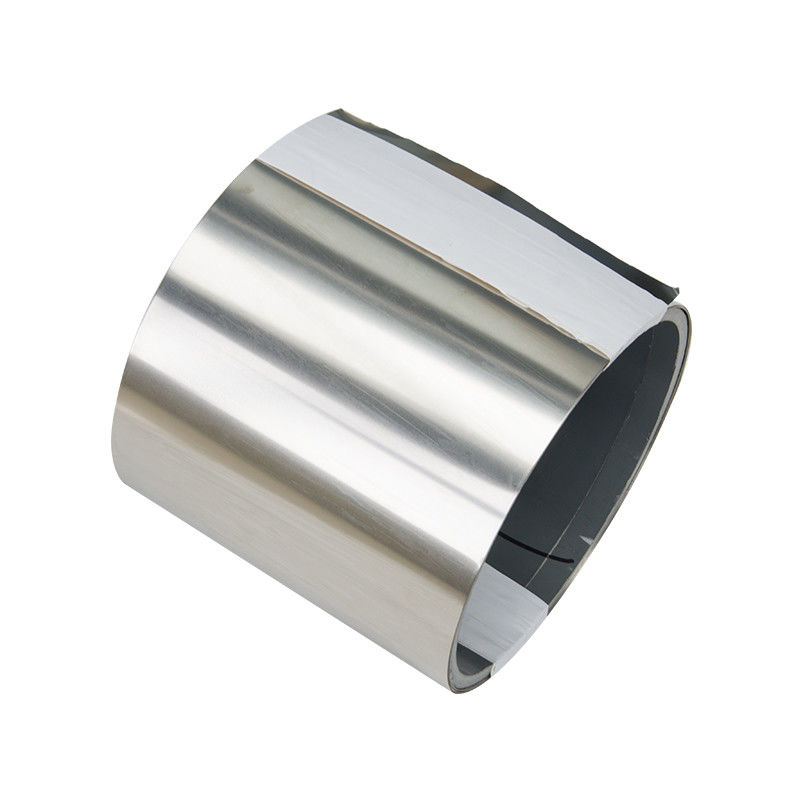

99.6% Pure Nickel Strip Bright Ni200 Thickness 0.3mm Strip For Li Battery Pack

Product Details

Place of Origin: Shanghai China

Brand Name: TANKII

Certification: SGS

Model Number: Nickel strip

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Wooden Case,

Delivery Time: 7-12 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per Month

Get Best Price
Contact Now
Specifications
Highlight:

nickel copper alloy

,

nickel 200 strip

Material:
Pure Nickel Strip
Purity:
99.6% Min
Width:
300 Mm Max.
Thickness:
10um-1.5mm
Color:
Silver Gray
Name:
Ni Strip
Material:
Pure Nickel Strip
Purity:
99.6% Min
Width:
300 Mm Max.
Thickness:
10um-1.5mm
Color:
Silver Gray
Name:
Ni Strip
Description
99.6% Pure Nickel Strip Bright Ni200 Thickness 0.3mm Strip For Li Battery Pack

Pure Nickel Strip 99.6% Bright Ni201/ Ni201 Thickness 0.3mm Strip for Li Battery Pack

Nickel 201 is a low carbon variety compared with Nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.



Chemical Composition

Alloy Ni% Mn% Fe% Si% Cu% C% S%
Nickel 201 Min 99 Max 0.35 Max 0.4 Max 0.35 Max 0.25 Max 0.02 Max 0.01

Physical Data

Density 8.9g/cm3
Specific Heat 0.109(456 J/kg.℃)
Electrical Resistivity 0.085×10-6ohm.m
Melting Point 1435-1445℃
Thermal Conductivity 79.3 W/m-K
Mean Coeff Thermal Expansion 13.1×10-6m/m.℃

Typical Mechanical Properties

Mechanical Properties Nickel 201
Tensile Strength 403 Mpa
Yield Strength 103 Mpa
Elongation 50%

Our Production Standard

  Bar Forging Pipe Sheet/Strip Wire
ASTM ASTM B160 ASTM B564 ASTM B161/B163/B725/B751 AMS B162 ASTM B166



The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300℃.
