|Place of Origin:||Shanghai, China|
|Minimum Order Quantity:||50kg|
|Packaging Details:||Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements|
|Delivery Time:||7-12 DAYS|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram, Paypal|
|Surface Treatment:||Oxidation Or Bright||Application:||Industrial Furnace|
|Melting Point:||1450||Tensile Sterngth:||630|

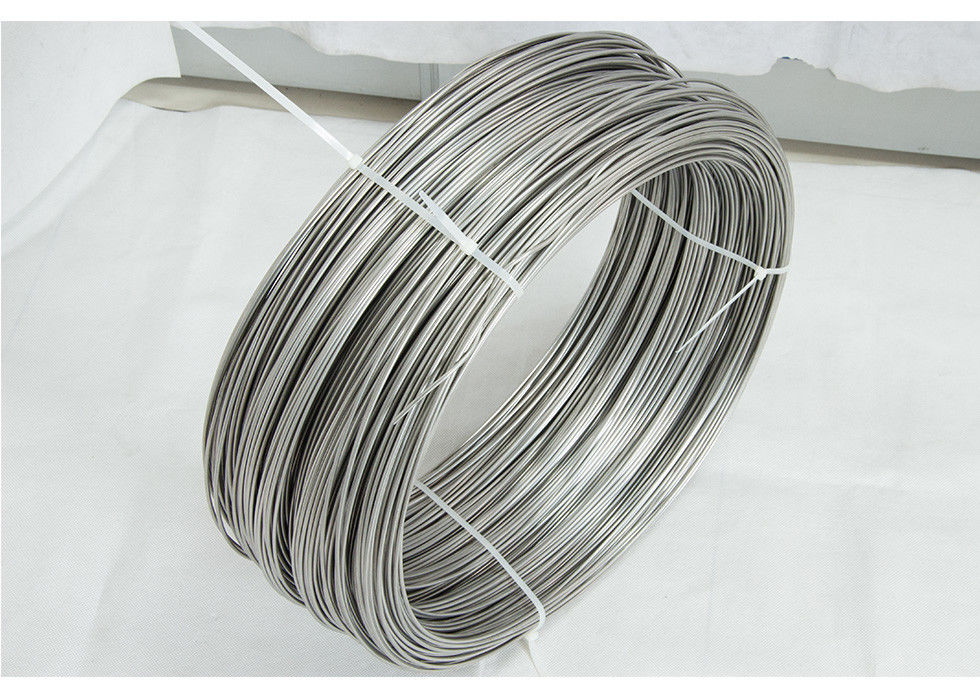

OCr21Al4 FeCrAl Resistance Wire for Automobile Tail Gas Purification
1Cr13Al4 is an iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 750°C (1382°F). The alloy with the characteristics of high resistivity, low temperature coefficient of electric resistance, high operating temperature, good oxidation resistance under high temperature.
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device. Such as panel heaters, infrared heaters, warming plates, in cartridge heaters, storage heaters, ceramic heaters for cooking plates, kilns elements, radiators, in quartz tube heaters for space heating, toasters, toaster ovens, industrial infrared dryers, coils on molded ceramic fibre for cooking plates with ceramic hobs and so on.
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
3. Packing detail
Spool, coil, wooden case(as per client's requirement)
1). Locomotive resistance strip:
2). Electric ceramic cooktop resistance strip:
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)
3). Low resistance ribbon:
4). Industrial furnace ribbon:
5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.
Delivery status and supply state of furnace resistance alloy heating ribbon
Wire and plate with the looseness or oxidation colour soft modal supply.
Strip except special requirements outside, general with after annealing oxidation colour supply.
The flat silk thread and protecting gas to light after annealing soft modal supply.
2, product packaging of furnace resistance alloy heating ribbon
Wire or strips to pack cloth bandaged volumes supply.
Thread and flat silk, axis encapsulate supply.
3, export products and users have special requirement, negotiation.
1, when the design should be based on the power wiring method, reasonable surface load, the correct choice of silk diameter,
2, before installation coping furnace thorough examination, cleared ferritic, "carbon, and the electric stove contact risks to avoid short circuit, in case caused furnace silk breakdown,
3, when installation should press design wiring method properly connected;
4, in use before should check the sensitivity of the temperature control system, in case of failure, cause temperature burnt.
