High Temperature Electrical Resistance Heating Wire 0Cr21Al4 / 1Cr19Al3 SWG16 18

Product Details

Place of Origin: Shanghai, China

Brand Name: Tankii

Certification: ISO9001:2015

Model Number: 0Cr21Al4

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiated price

Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

high resistance wire

Surface Treatment:
Oxidation Or Bright
Application:
Industrial Furnace
Wire Diameter:
Customized
Density:
7.4
Melting Point:
1450
Tensile Sterngth:
630
Surface Treatment:
Oxidation Or Bright
Application:
Industrial Furnace
Wire Diameter:
Customized
Density:
7.4
Melting Point:
1450
Tensile Sterngth:
630
Description
High Temperature Electrical Resistance Heating Wire 0Cr21Al4 / 1Cr19Al3 SWG16 18



High Temperature Electrical Resistance Heating Wire 0Cr21Al4 / 1Cr19Al3



Introduction



1Cr13Al4 is an iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 750°C (1382°F). The alloy with the characteristics of high resistivity, low temperature coefficient of electric resistance, high operating temperature, good oxidation resistance under high temperature.
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device. Such as panel heaters, infrared heaters, warming plates, in cartridge heaters, storage heaters, ceramic heaters for cooking plates, kilns elements, radiators, in quartz tube heaters for space heating, toasters, toaster ovens, industrial infrared dryers, coils on molded ceramic fibre for cooking plates with ceramic hobs and so on.





1Cr13Al4 0.03-12.0 1.25±0.08 588-735 >16 >6 950 >10000
0Cr15Al5 1.25±0.08 588-735 >16 >6 1000 >10000
0Cr25Al5 1.42±0.07 634-784 >12 >5 1300 >8000
0Cr23Al5 1.35±0.06 634-784 >12 >5 1250 >8000
0Cr21Al6 1.42±0.07 634-784 >12 >5 1300 >8000
1Cr20Al3 1.23±0.06 634-784 >12 >5 1100 >8000
0Cr21Al6Nb 1.45±0.07 634-784 >12 >5 1350 >8000
0Cr27Al7Mo2 0.03-12.0 1.53±0.07 686-784 >12 >5 1400 >8000





2. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

3. Packing detail
Spool, coil, wooden case(as per client's requirement)



4. Specification
1). Locomotive resistance strip:
Thickness: 0.6mm-1.5mm
Width: 60mm-90mm

2). Electric ceramic cooktop resistance strip:
Thickness: 0.04mm-1.0mm
Width: 5mm-12mm
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)

3). Low resistance ribbon:
Thickness&Width: (0.2mm-1.5mm)*5mm

4). Industrial furnace ribbon:
Thickness: 1.5mm-3.0mm
Width: 10mm-30mm



5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.



Delivery status and supply state of furnace resistance alloy heating ribbon
Wire and plate with the looseness or oxidation colour soft modal supply.
Strip except special requirements outside, general with after annealing oxidation colour supply.
The flat silk thread and protecting gas to light after annealing soft modal supply.
2, product packaging of furnace resistance alloy heating ribbon
Wire or strips to pack cloth bandaged volumes supply.
Thread and flat silk, axis encapsulate supply.
3, export products and users have special requirement, negotiation.
Note
1, when the design should be based on the power wiring method, reasonable surface load, the correct choice of silk diameter,
2, before installation coping furnace thorough examination, cleared ferritic, "carbon, and the electric stove contact risks to avoid short circuit, in case caused furnace silk breakdown,
3, when installation should press design wiring method properly connected;
4, in use before should check the sensitivity of the temperature control system, in case of failure, cause temperature burnt.

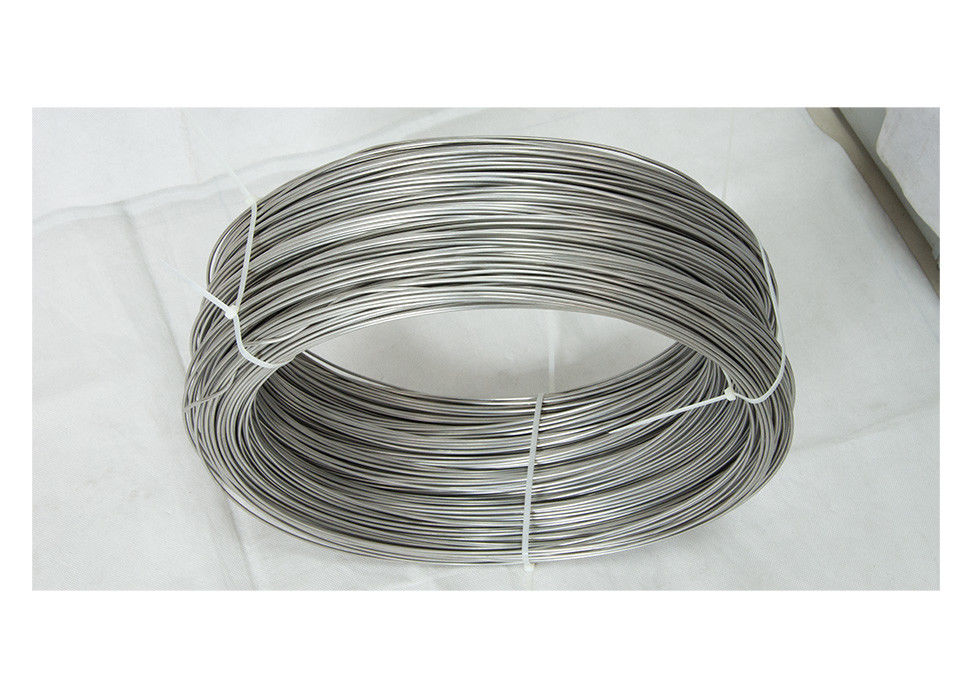

High Temperature Electrical Resistance Heating Wire 0Cr21Al4 / 1Cr19Al3 SWG16 18 0High Temperature Electrical Resistance Heating Wire 0Cr21Al4 / 1Cr19Al3 SWG16 18 1
