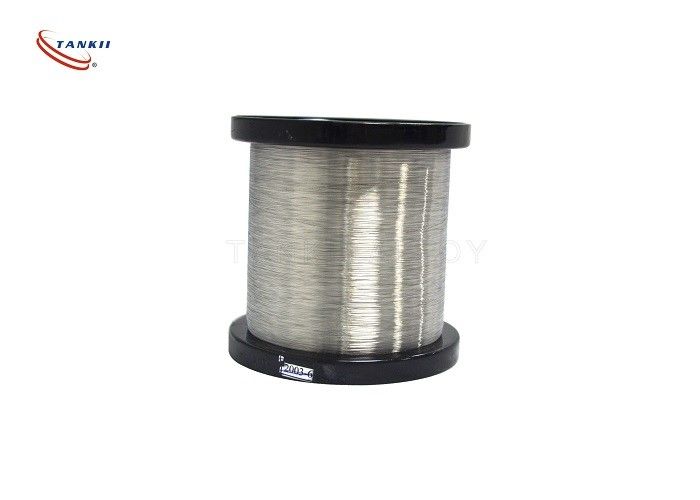

Resistohm 60/Nikrothal 6/Nichrome 60/Ni60cr15 Nickel Alloy Flat / Round Heating Wire

Product Details

Place of Origin: Shanghai, Tankii

Brand Name: TANKII

Certification: ISO9001

Model Number: Ni60Cr15

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: negotiable

Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film As to Custom's Requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 2000+TON+YERA

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

high resistance wire

Advantage:
Good Processing Performance, Corrosion Resistance
Insulation Material:
None
Conductor Type:
Solid
Colour:
Silver Or Polished
Type:
Bare Round Wire/ Flat Wire
Application:
Furnace, Household Appliance
Advantage:
Good Processing Performance, Corrosion Resistance
Insulation Material:
None
Conductor Type:
Solid
Colour:
Silver Or Polished
Type:
Bare Round Wire/ Flat Wire
Application:
Furnace, Household Appliance
Description
Resistohm 60/Nikrothal 6/Nichrome 60/Ni60cr15 Nickel Alloy Flat / Round Heating Wire

Resistohm 60/Nikrothal 6/Nichrome 60/Ni60cr15 Nickel Alloy Flat / Round Heating Wire for Resistor



Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.



Ni60Cr15 nickel chromium alloy wire is an ideal material, it has good ductility,workability and weldability under high temperature and seismic strength.

Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil-forming ability.


We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma

Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.





Application of Different Grades:

Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.



Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.


Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.


Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.


Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.



Mechanical Properties



Alloy Nomenclature Performance Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical composition Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤1.0 ≤1.0 Rest Rest Rest
Max. continuous service temp. of element(ºC) 1200 1250 1150 1100 1100
Resistivity at 20ºC (μΩ·m) 1.09 1.18 1.12 1.0 1.04
Density(g/cm3) 8.40 8.10 8.20 7.90 7.90
Thermal conductivity (KJ/m·h·ºC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α×10-6/ºC) 18.0 17.0 17.0 19.0 19.0
Melting point approx.( ºC) 1400 1380 1390 1390 1390
Elongation at rupture(%) >20 >20 >20 >20 >20
Micrographic structure austenite austenite austenite austenite austenite
Magnetic properties nonmagnetic nonmagnetic Weak magnetic Weak magnetic Weak magnetic





Resistohm 60/Nikrothal 6/Nichrome 60/Ni60cr15 Nickel Alloy Flat / Round Heating Wire 0
