Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2015/ ROHS
Model Number: 6J13
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: To negotiate
Packaging Details: spool, coil, carton or plywood case with plastic film according to clients' requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 2000+TON+YEAR
Resistivity: |
0.44 |
Min Elongation: |
15% |
Copper: |
Yes |
Application: |
Resistors/ Shunt |
Shape: |
Flat |
Min Tensile Strength: |
490 |
Resistivity: |
0.44 |
Min Elongation: |
15% |
Copper: |
Yes |
Application: |
Resistors/ Shunt |
Shape: |
Flat |
Min Tensile Strength: |
490 |

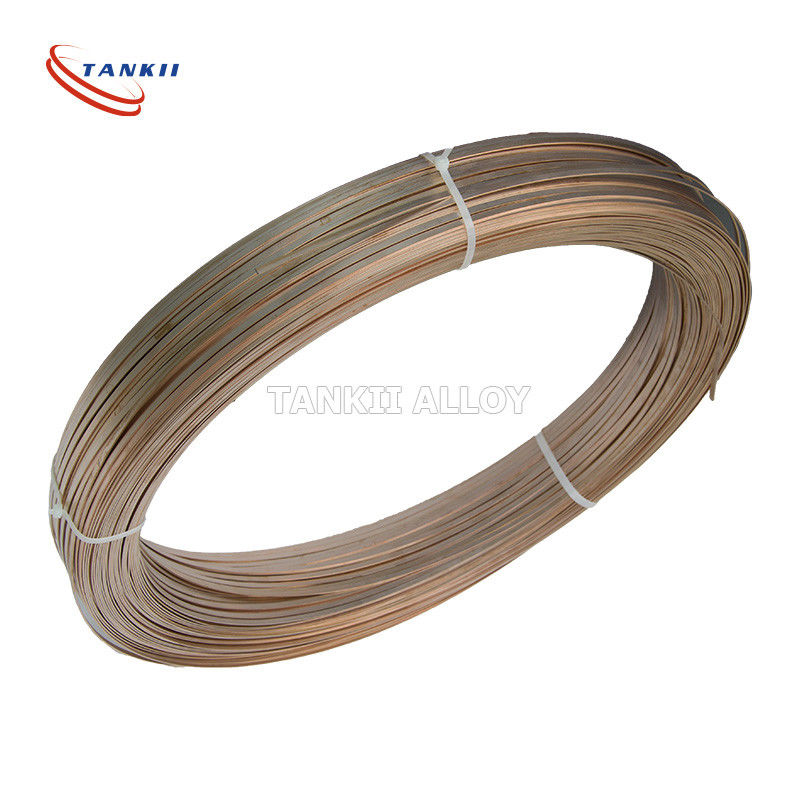

1mm*8mm BMN13-2 Electric Resistance Alloy Flat Wire / Flat Strip
Manganin is a trademarked name for an alloy of typically 84% copper, 12% manganese, and 4% nickel. It was first developed by Edward Weston in 1892, improving upon his Constantan (1887).
Manganin foil and wire is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.
Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.
Manganin wire( cupro-manganese wire ) is a trademarked name for an alloy of typically 86%copper,12%manganese, and 2-5%nickel .
Manganin wire and foil is used in the manufactue of resistor,particularly ammeter shunts ,because of its cirtually zero temperature cofficient of resintance value and long terms stability.
| Mark | Kanthal | ISA |
|---|---|---|
| Constantan | CUPROTHAL 49 / 294 | ISOTAN |
| Alloy 30 | Cuprothal 5 | |
| Alloy 60 | Cuprothal 10 | |
| Alloy 90 | Cuprothal 15 | |
| Alloy 180 | Cuprothal 30 | |
| Manganin 37 | MANGANIN 37 | |
| Manganin 43 | MANGANIN 43 |
Mechanical Properties
| Max Continuous Service Temp | 0-100℃ |
| Resisivity at 20℃ | 0.44±0.04ohm mm2/m |
| Density | 8.4 g/cm3 |
| Thermal Conductivity | 40 KJ/m·h·℃ |
| Temp Coefficient of Resistance at 20 ºC | 0~40α×10-6/ºC |
| Melting Point | 1450℃ |
| Tensile Strength(Hard) | 585 Mpa(min) |
| Tensile Strength,N/mm2 Annealed,Soft | 390-535 |
| Elongation | 6~15% |
| EMF vs Cu, μV/ºC (0~100ºC) | 2(max) |
| Micrographic Structure | austenite |
| Magnetic Property | non |
| Hardness | 200-260HB |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
| 标号 | Kanthal | ISA |
|---|---|---|
| Constantan | CUPROTHAL 49 / 294 | ISOTAN |
| Alloy 30 | Cuprothal 5 | |
| Alloy 60 | Cuprothal 10 | |
| Alloy 90 | Cuprothal 15 | |
| Alloy 180 | Cuprothal 30 | |
| Manganin 37 | MANGANIN 37 | |
| Manganin 43 | MANGANIN 43 |
