5mm Width CUNI12MN2 Resistance Alloy Copper Color Flat Strip / Flat Wire For Shunt

Name: 5mm Width CUNI12MN2 Resistance Alloy Copper Color Flat Strip / Flat Wire For Shunt
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 6J13
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2015/ ROHS

Model Number: 6J13

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: To negotiate

Packaging Details: spool, coil, carton or plywood case with plastic film according to clients' requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 2000+TON+YEAR

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    precision tubing, kovar alloy


Max Operating Temp.:	0-100℃	Density:	8.4
Color:	Copper Color	Size:	Request
Shape:	Ribbon	Alloy Type:	Manganin

Max Operating Temp.:	0-100℃
Density:	8.4
Color:	Copper Color
Size:	Request
Shape:	Ribbon
Alloy Type:	Manganin

Description

5mm Width CUNI12MN2 Resistance Alloy Copper Color Flat Strip / Flat Wire For Shunt

4mm*12mm 6J13 Copper Manganese Alloy Resistance Flat Ribbon/ Strip

Specifications

manganin wire/CuMn12Ni2 Wire used in rheostats, resistors,shunt etc manganin wire 0.08mm to 10mm 6J13, 6J12, 6J11 6J8...

Manganin wire( cupro-manganese wire ) is a trademarked name for an alloy of typically 86%copper,12%manganese, and 2-5%nickel .

Manganin wire and foil is used in the manufactue of resistor,particularly ammeter shunts ,because of its cirtually zero temperature cofficient of resintance value and long terms stability.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~5	11~13	<0.5	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100℃
Resisivity at 20℃	0.44±0.04ohm mm2/m
Density	8.4 g/cm3
Thermal Conductivity	40 KJ/m·h·℃
Temp Coefficient of Resistance at 20 ºC	0~40α×10-6/ºC
Melting Point	1450℃
Tensile Strength(Hard)	585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	390-535
Elongation	6~15%
EMF vs Cu, μV/ºC (0~100ºC)	2(max)
Micrographic Structure	austenite
Magnetic Property	non
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

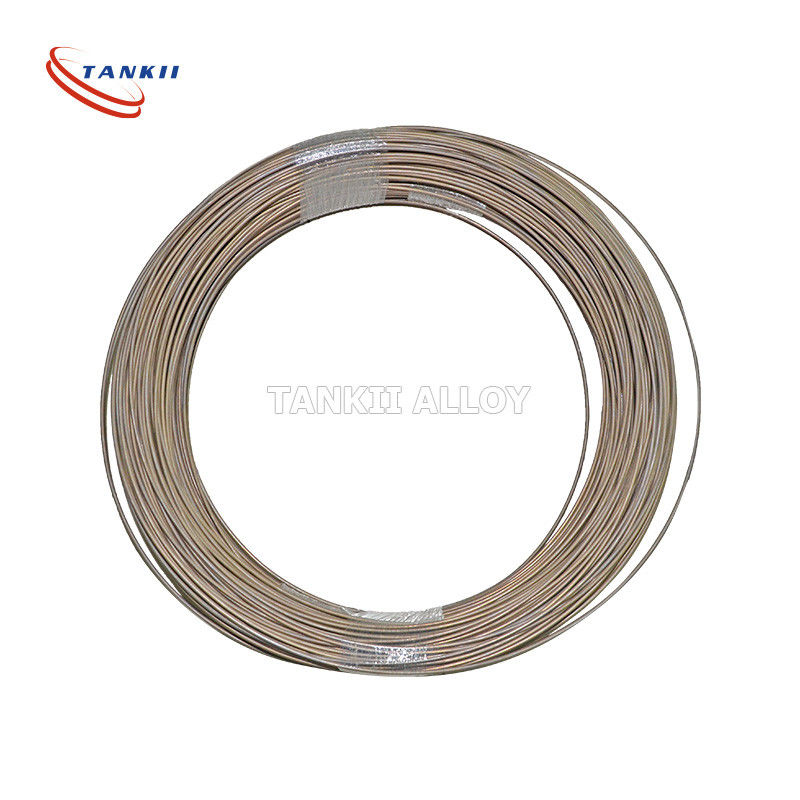

5mm Width CUNI12MN2 Resistance Alloy Copper Color Flat Strip / Flat Wire For Shunt 0

Application of Manganin

Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.
