Nickle Plated Copper Strip 0.25*30mm For Condensor Pipe Element / Power Battery Pole Ear

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: SGS

Model Number: Nickel plated copper strip

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Sea worthy package

Delivery Time: 5~20 days as per order qty

Payment Terms: T/T, Western Union

Supply Ability: 1000T/year

Get Best Price
Contact Now
Specifications
Highlight:

thin copper sheet

,

pure copper foil

Shape:
Coil
Application:
Industrial
Cu (min):
99.9%
Material:
Brass,Copper
Surface:
Matt Light
Package:
Sea Worthy Package
Item:
Nickle Plated Copper Strip 0.25*30mm Used For Condensor Pipe Element
Color:
Silvery
Shape:
Coil
Application:
Industrial
Cu (min):
99.9%
Material:
Brass,Copper
Surface:
Matt Light
Package:
Sea Worthy Package
Item:
Nickle Plated Copper Strip 0.25*30mm Used For Condensor Pipe Element
Color:
Silvery
Description
Nickle Plated Copper Strip 0.25*30mm For Condensor Pipe Element / Power Battery Pole Ear

Nickle Plated Copper Strip 0.25*30mm Used For Condensor Pipe Element / Power Battery Pole Ear



Description:

Nickel plating: The process of electroplating a layer of nickel on a metal or some nonmetal by electrolysis or chemistry.

Material Type: T2, H62, H65, H85.

Specification: thickness (0.1mm-3mm) width (2mm-200mm).

This series of products with good electrical and thermal conductivity, ductility, deep impact and corrosion resistance,

it can be used in electrical appliances, construction, chemical industry, sealing gaskets, transformers, water heaters etc.





Advantages of nickel-plated copper strip:

1, Good welding function

2, Anti-electromagnetic stirring

3, Cheap price

4, With higher chemical fluctuation, in sulfuric acid, nitric acid, in the dilute solution of hydrochloric acid is simply not dissolved.





Application scope of nickel-plated copper strip:

1. Electronic connector,

2. Lead frame,

3. Relay spring plate,

4. Switch contact plate,

5. Precision electronic connector,

6. Terminal,

7. High-power battery connector,

8. Button battery cathode material,

9. Electronic material,

10. Connection between lithium battery anode

11. PCB board and other industries.



Cu%99.90 C11000 Cu ETP

T2 Chemical Content, %

Cu Bi Sb As Fe Ni Pb S Zn ROHS Directive
Cd Pb Hg Cr
99.90 0.001 0.002 0.002 0.005 - 0.005 0.005 - ND ND ND ND



Physical Properties of copper strip

Melting Point - Liquidus 1083ºC
Melting Point - Solidus 1065ºC
Density 8.91 gm/cm3@ 20 ºC
Specific Gravity 8.91
Electrical Resistivity 1.71 microhm-cm @ 20 ºC
Electrical Conductivity** 0.591 MegaSiemens/cm @ 20 ºC
Thermal Conductivity 391.1 W/m ·oK at 20 C
Coefficient of Thermal Expansion 16.9 ·10-6perºC(20-100 ºC)
Coefficient of Thermal Expansion 17.3 ·10-6perºC(20-200 ºC)
Coefficient of Thermal Expansion 17.6·10-6perºC(20-300 ºC)
Specific Heat Capacity 393.5 J/kg ·oK at 293 K
Modulus of Elasticity in Tension 117000 Mpa
Modulus of Rigidity 44130 Mpa





T2  copper strip:

Nickle Plated Copper Strip 0.25*30mm For Condensor Pipe Element / Power Battery Pole Ear 0

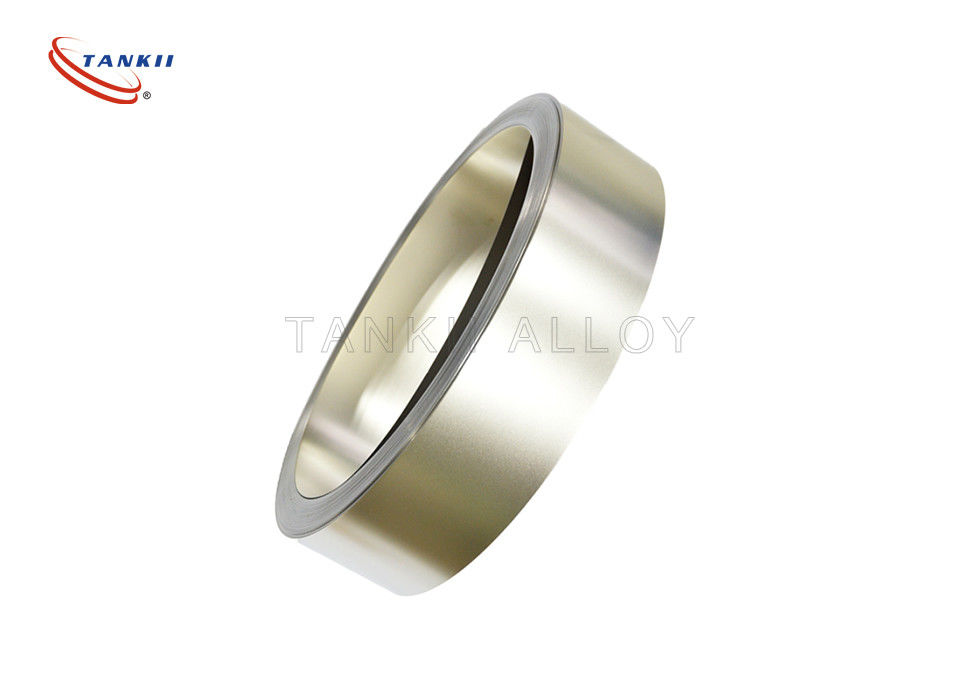

Nickel plated copper strip:

Nickle Plated Copper Strip 0.25*30mm For Condensor Pipe Element / Power Battery Pole Ear 1



Package:



Nickle Plated Copper Strip 0.25*30mm For Condensor Pipe Element / Power Battery Pole Ear 2



Nickle Plated Copper Strip 0.25*30mm For Condensor Pipe Element / Power Battery Pole Ear 3

Nickle Plated Copper Strip 0.25*30mm For Condensor Pipe Element / Power Battery Pole Ear 4
