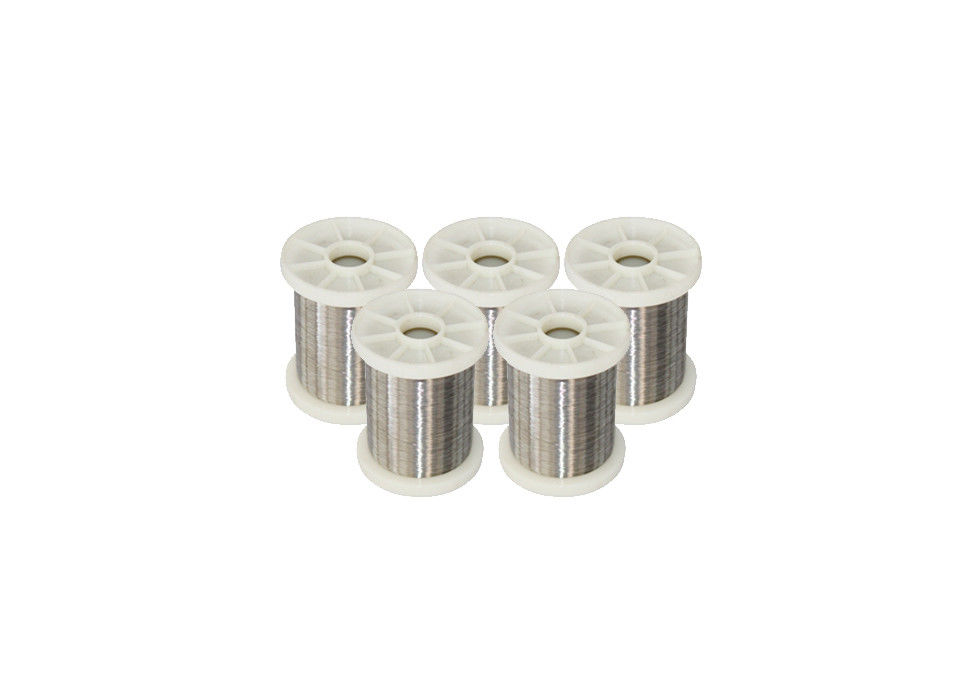

Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode

Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode

    • Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode
    • Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode
    • Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode
    • Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode
  • Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO 9001
    Model Number: A1

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotatioin
    Packaging Details: Spool
    Delivery Time: 5-30 days
    Payment Terms: T/T, Western Union
    Supply Ability: 20000kg/month
    Contact Now
    Detailed Product Description
    Application: Heating Wire Shape: Wire
    Resistivity: 0.49+-5% State: Annealed And Hard
    Melting Point: 1280 Elongation: >25%

    Dia 2mm 3mm 1.7mm fe-cr-al A1 wire FLAME ROD heating alloy wire for central igniter electrode



    Resistance heating wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy. Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.





    Specifications
    STANDARD: GB1234-2012
    Main chemical composition
    Cr:22%,Al:6%,Nb:0.5%
    Max. continues service temp.
    1350°C
    Resistivity at 20 °C
    1.45±0.07
    Density (g/cm3)
    7.10
    Thermal conductivity(KJ/m.h.°C)
    46.1
    Melting point appox °C
    1510
    Elongation at rupture %
    >12
    Min tensile strength in N/mm2
    637
    Hardness
    200~260







    Grade 1Cr13Al4 TK1 0Cr25Al5 0Cr20Al6Re 0Cr23Al5 0Cr19Al3 0Cr21Al6Nb 0Cr27Al7Mo2

    Nominal

    composition

    %

    Cr 12.0-15.0 22.0-26.0 23.0-26.0 19.0-22.0 22.5-24.5 18.0-21.0 21.0-23.0 26.5-27.8
    Al 4.0-6.0 5.0-7.0 4.5-6.5 5.0-7.0 4.2-5.0 3.0-4.2 5.0-7.0 6.0-7.0
    Re opportune 0.04-1.0 opportune opportune opportune opportune opportune opportune
    Fe Bal.   Bal. Bal. Bal. Bal. Bal. Bal.
                  Nb0.5 Mo1.8-2.2
    Resistivity 20ºC 1.25 1.48 1.42 1.40 1.35 1.23 1.45 1.53
    Density(g/cm³) 7.4 7.1 7.1 7.16 7.25 7.35 7.1 7.1
    Max continuous operating temperature(ºC) 650 1400 1250 1250 1250 1100 1350 1400








    Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter ElectrodeDia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire FLAME ROD Heating Alloy Wire For Central Igniter Electrode
