Product Details
Place of Origin: China
Brand Name: Tankii
Model Number: Thermocouple cable
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 5000m/spool,2000m/spool ,customzied
Delivery Time: 5-30days
Payment Terms: T/T, Western Union
Supply Ability: 150000m/month
Certification: |
ISO 9001 |
Package: |
Coil |
Temperature: |
Customzied |
Standard: |
ANSI |
Type: |
K |
Insulation: |
PTFE/PVC/FIBERGLASS |
COLOR: |
YELLOW AND RED |
Certification: |
ISO 9001 |
Package: |
Coil |
Temperature: |
Customzied |
Standard: |
ANSI |
Type: |
K |
Insulation: |
PTFE/PVC/FIBERGLASS |
COLOR: |
YELLOW AND RED |

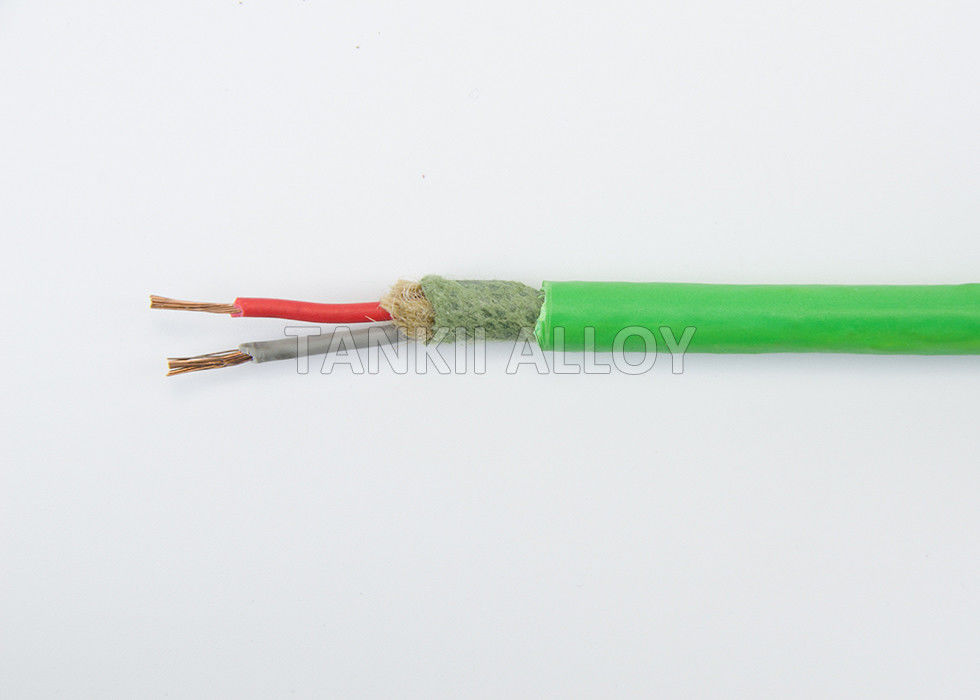

Multicore cable JX thermocouple wire 7*0.2mm PFA FEP PVC thermocouple wire
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
Grade: | Extension Grade or Thermocuple Grade |
temperature range, deg. c | -50... +400 |
type of coductor: | K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX |
number of conductors: | 1,2,3,4,6 |
Conductor type | Strand or Solid |
section area of each core, mm2 (Conductor Size AWG) | 20, 24, 30, 32,36,40 |
material of insulation: | fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc |
material of jacket: | fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc |
shielding material: | SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid) |
color: | ANSI, IEC, etc |
quantity and lenght of coil, m(ft) | 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft, |
• Heating – Gas burners for ovens
• Cooling – Freezers
• Engine protection – Temperatures and surface temperatures
• High temperature control – Iron casting
