1j22 Precision Soft Magnetic Precision Alloy Bar / Rod For Magnetostrictive Transducer

Name: 1j22 Precision Soft Magnetic Precision Alloy Bar / Rod For Magnetostrictive Transducer
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1J22
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2015

Model Number: 1J22

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: To negotiate

Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film according to the client´s requirements

Delivery Time: 7-15 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 2000+TON+YEAR

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            precision tubing, kovar alloy


Shape:	Bar/ Rod	Condition:	Request
Smaple:	Available	Size:	Request
Use:	Magnetostrictive

Shape:	Bar/ Rod
Condition:	Request
Smaple:	Available
Size:	Request
Use:	Magnetostrictive

Description

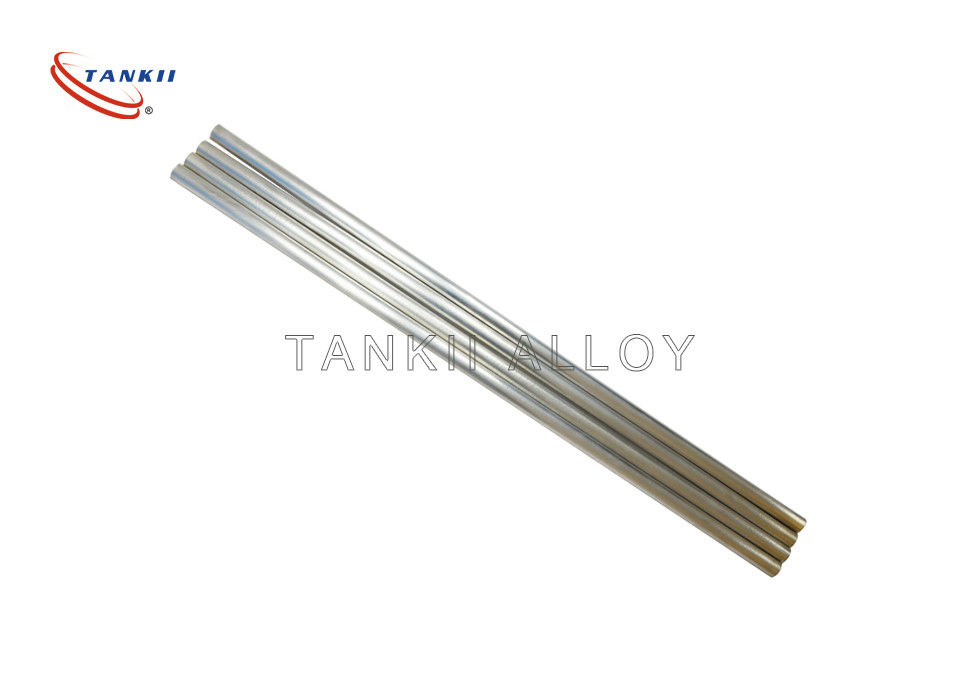

1j22 Precision Soft Magnetic Precision Alloy Bar / Rod For Magnetostrictive Transducer

1j22 Precision Soft Magnetic Alloy Bar/ Rod For Magnetostrictive Transducer

Material	201,304,304L,316L,310S,430,431,904L,2205,2507,Monel 400,K500,Inconel 601,625, C276,1J22,1J85,4J29,4J36,4J78,4J42,4J38,4J32,4J6,3J3,3J2,3J1,etc
Size	Thickness 0.03mm-3mm, Width:5mm-900mm
Package	Thin film & Knitted bag
Hardness	1/4H,1/2H,3/4H,FH,EH
Control Hardness	Cold Rolled,Annealed & Solution
Feature	High Tensile Strength, Bright Surface, Accurate Thickness

1 j22 is high saturation magnetic induction intensity of iron, cobalt, vanadium soft magnetic alloy in existing soft magnetic alloy calcium alloy has the highest saturated magnetic induction intensity (2.4 T), and high Curie temperature (980 ºC), saturation magnetostriction coefficient of maximum (60 ~ 100 * 10-6).Due to the high saturation magnetic induction intensity, when making an equal power of motor, can greatly reduce the volume, when making electromagnet, under the same cross-sectional area can produce larger suction force.Due to their high Curie point, can make the alloy can be in other soft magnetic alloy material has been completely demagnetization work under the high temperature, and maintain good magnetic stability.Due to the large magnetostrictive coefficient, and is suitable for used as a magnetostrictive transducer, output energy is high, the efficiency is high.The resistivity of low alloy (0.27 mu Ω m.), is not suitable for use under high frequency.Price is more expensive, easily oxidized, processing performance is poor, adding suitable nickel or other elements, can improve the processing performance.
Application: suitable for making quality is light, small volume of aviation and space flight with electrical components, such as, micro-motor rotor magnet pole head, relays, transducers, etc

Chemical composition

Ingredients	C	Mn	Si	P	S
Ingredients	≤
content	0.04	0.3	0.3	0.02	0.02

Ingredients	Cu	Ni	Co	V	Fe
	≤
content	0.2	0.5	49.0~51.0	0.80~1.80	Bal

1j22 Precision Soft Magnetic Precision Alloy Bar / Rod For Magnetostrictive Transducer 0
