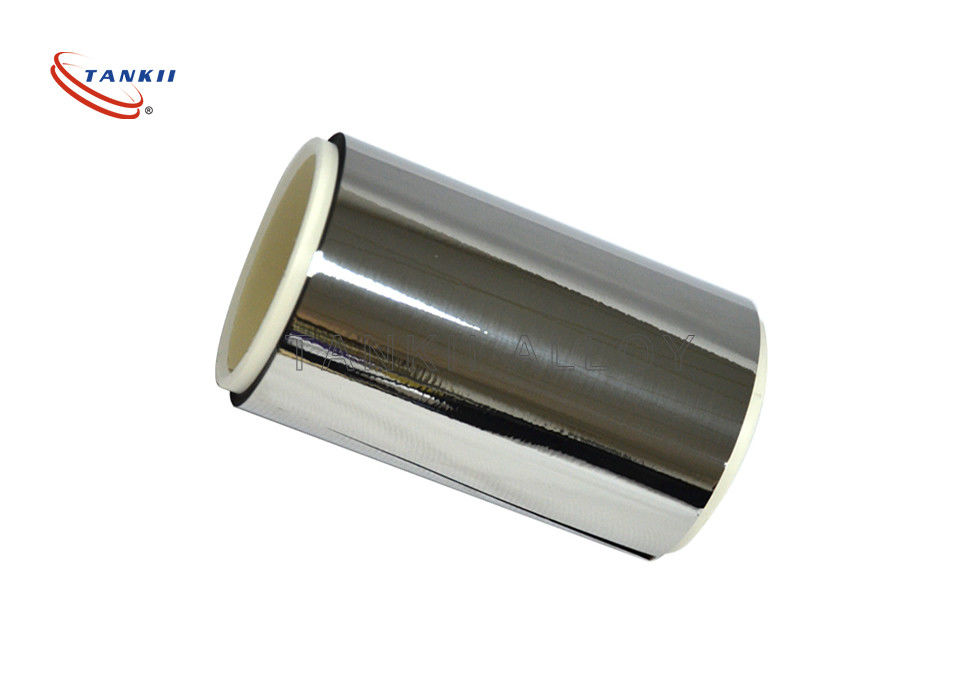

0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors

0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors

    • 0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors
    • 0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors
    • 0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors
    • 0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors
  • 0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2015
    Model Number: Karma

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: To negotiate
    Packaging Details: Spool, Coil, Carton, Wooden case with Plastic Film According to Client's Requirements
    Delivery Time: 7-15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 20+TON+MONTH
    Contact Now
    Detailed Product Description
    Alloy: Nickel Based Alloy Feature: Corrosion Resistant
    Surface: Smooth Shipment: Air, Sea, Rail
    Resistance: Stable Application: Industry
    High Light:

    precision tubing

    ,

    kovar alloy

    High Quality Karma Nickel Based Alloy Foil Corrosion Resistant Heating Strip



    1. Karma alloy

    Karma alloy is made up of copper, nickel, Aluminum and Iron as the main components. The resistivity is 2~3 times higher than MENTONG. It has lower temperature coefficient of resistance(TCR), lower thermal EMF versus copper, good permanence of resistance for a long period of time and strong anti-oxidation. Its working temperature range is wider than MENTONG (-60~300ºC). It is suitable for making fine precision resistance elements and strain.

    2. Distinctive features of Karma resistance wire

    1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
    Al and other elements, and thus achieved a precision resistance material with improved
    resistance temperature coefficient and heat electromotive force against copper.
    With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
    than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.

    2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,

    and the resistance temperature curve turns out to be almost a straight line within a wide
    temperature range.

    Therefore, the temperature coefficient is set to be the average temperature coefficient between
    23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
    be adopted for the temperature coefficient.

    3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and

    exhibits excellent stability over a period of many years.

    4) If this is to be used as a precision resistance material, low temperature heat treatment is
    required to eliminate processing distortions just as in the case of Manganin wire CMW.



    3.Karma Property

    name code Main Composition (%)



    Standard



    Cr Al Fe Ni
    Karma 6J22 19~21 2.5~3.2 2.0~3.0 bal. JB/T 5328



    Name Code

    (20ºC)
    Resisti

    vity
    (μΩ.m)

    (20ºC)
    Temp. Coeff.

    Of Resistance
    (αX10-6/ºC)

    (0~100ºC)
    Thermal

    EMF vs.

    Copper
    (μv/ºC)

    Max.workin

    g
    Temp.(ºC)

    (%)
    Elongati

    on

    (N/mm2)
    Tensile
    Strength
    Standard
    Karma 6J22 1.33±0.07 ≤±20 ≤2.5 ≤300 >7 ≥780 JB/T 5328



    0.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors 00.05mm*50mm Karma High Nickel Allloy Foil Bright Smooth For Resistors 1
