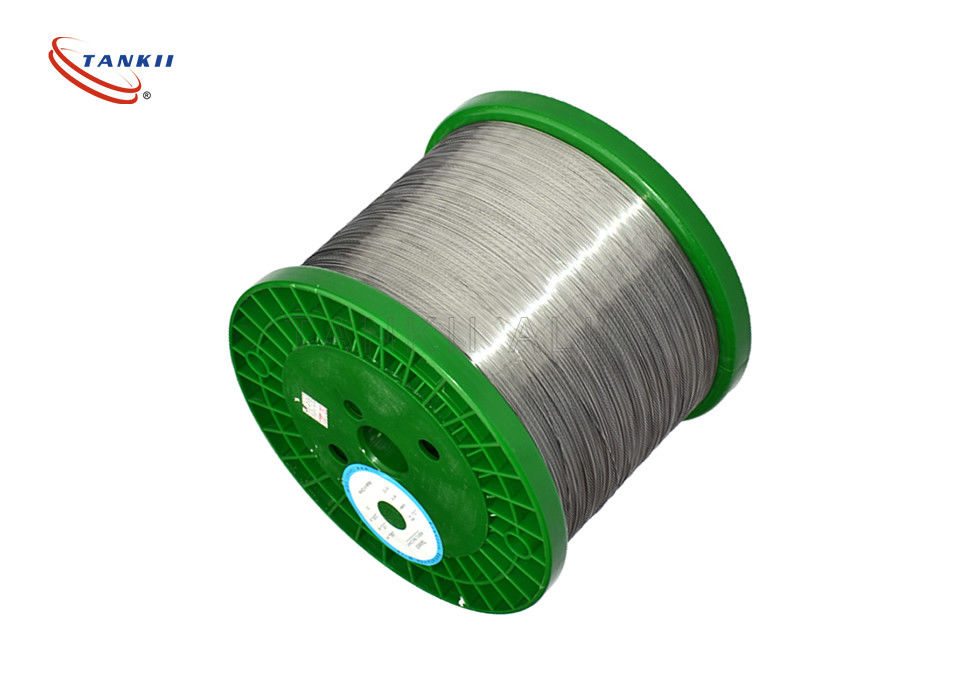

24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr23Al5

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: In carton box. wooden case

Delivery Time: 7 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

high temperature wire

,

electrical heating wire

Resistivity:
1.35
Density:
7.25
Dia:
0.05~8mm
Package:
Carton Box, Wooden Case
Leading Time:
7~20 Dyas
Item:
24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters
Resistivity:
1.35
Density:
7.25
Dia:
0.05~8mm
Package:
Carton Box, Wooden Case
Leading Time:
7~20 Dyas
Item:
24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters
Description
24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters

24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters



FeCrAl alloy is high resistance and electrical heating alloy. FeCrAl Alloy can reach process temperatures of 2192 to 2282°F, corresponding to a resistance temperature of 2372°F.
In order to improve anti-oxidation ability and increase working life, we usually put addition of rare earths in the alloy, such as La+Ce, Yttrium, Hafnium, Zirconium, etc.

It is normally used in electrical furnace, glass top hobs, quartz tube heaters, resistors, catalytic converter, heating elements and etc.



The heat in the traditional light wave furnace cannot be heated quickly, nor can it be stir-fried, and it is also a waste of energy. In order to overcome the deficiency of the existing kitchen cookers, a new type of kitchen cookers, the advanced electric ceramic stove, has been developed at home and abroad.



As an enterprise specializing in the development of electrothermal alloy, our company has designed and developed a new type of ferrochrome aluminum foil for the electric ceramic furnace, which is specially designed and developed for the heating element of the electric ceramic furnace.


1. Description
FECRAL  Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL  Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD



24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters

2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm

2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)

3).Low  resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm

4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm

5).Wire: Diameter:0.05mm-10.0mm

6) Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.



24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters
3. Details of tankii  material

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo2

Main Chemical Composition
(%)

Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2

Max Continuous Service Temperature(oC)

950

1250

1250

1250

1100

1350

1400

Resisivity 20oC (Ωmm2/m)

1.25
±0.08

1.42
±0.06

1.42
±0.07

1.35
±0.07

1.23
±0.07

1.45
±0.07

1.53
±0.07

Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@oC)

Coefficient of Thermal Expansion(α×10-6/oC)

15.4

16

14.7

15

13.5

16

16

Approximate Melting Point( oC)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)

Repeatedly Bend Frequency(F/R)

>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

 24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters
Typical application areas of air heating cassettes

  • Pre-heating of aluminium

  • Homogenising of aluminium

  • Heat treatment in the metallurgical industry

  • Drying of ore concentrates

  • Drying of materials in the wood processing industry

  • Roasting and drying in the food industry

  • Baking in large bakery ovens

  • Drying of chemicals

  • Drying and stoving of paints (stoving furnaces)

24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters 0

24AWG FeCrAl Alloy Wire Resistohm 135 0Cr23Al5 Used For Quartz Tube Heaters
